Xerox WorkCentre 3655 - PL 3.1 Drive

5/2014
5-6
WorkCentre 3655 Multifunction Printer
PL 3.1
Initial Issue - Xerox Internal Use Only
Parts Lists

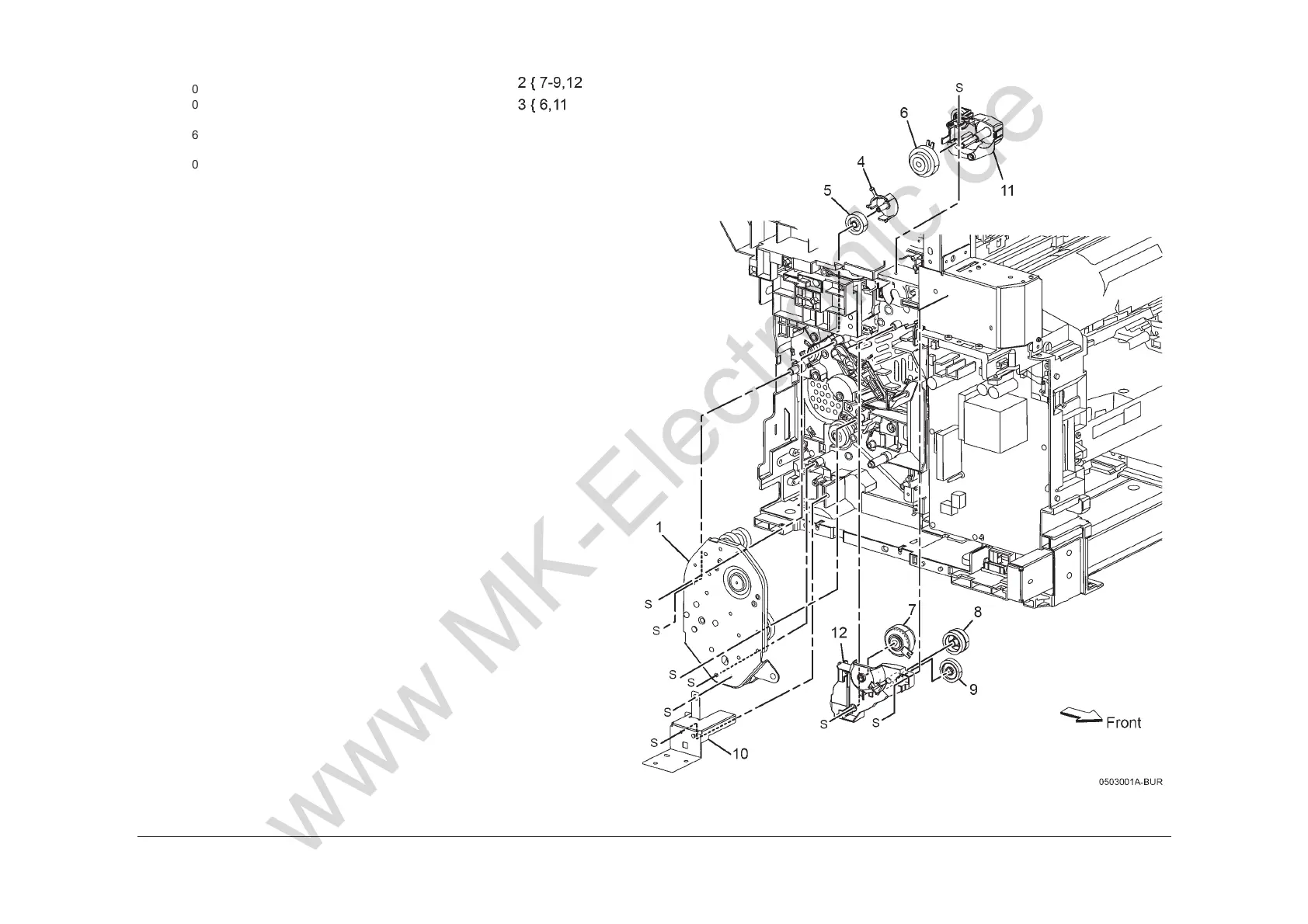

PL 3.1 Drive
Item Part Description
1
007K20850 Drive Assembly Main (SCC)
2 007K18912 Holder Assembly Drive Exit Out
(SCC)
3 604K80770 Holder Assenbly Drive Exit In
(SCC)
4 019E83450 Holder Gear Dup
5 – Gear Dup In
6 – Clutch Assembly Exit T21 (SCC)
7 – Clutch Assemby Invet T24 (SCC)
8 – Gear E3 Z
9 – Gear E3
10 – Chassis ESS Bottom
11 – Exit Invert Drive Assy
12 – Exit Drive Assy
99 604K80770 Kit Gear Dup In
