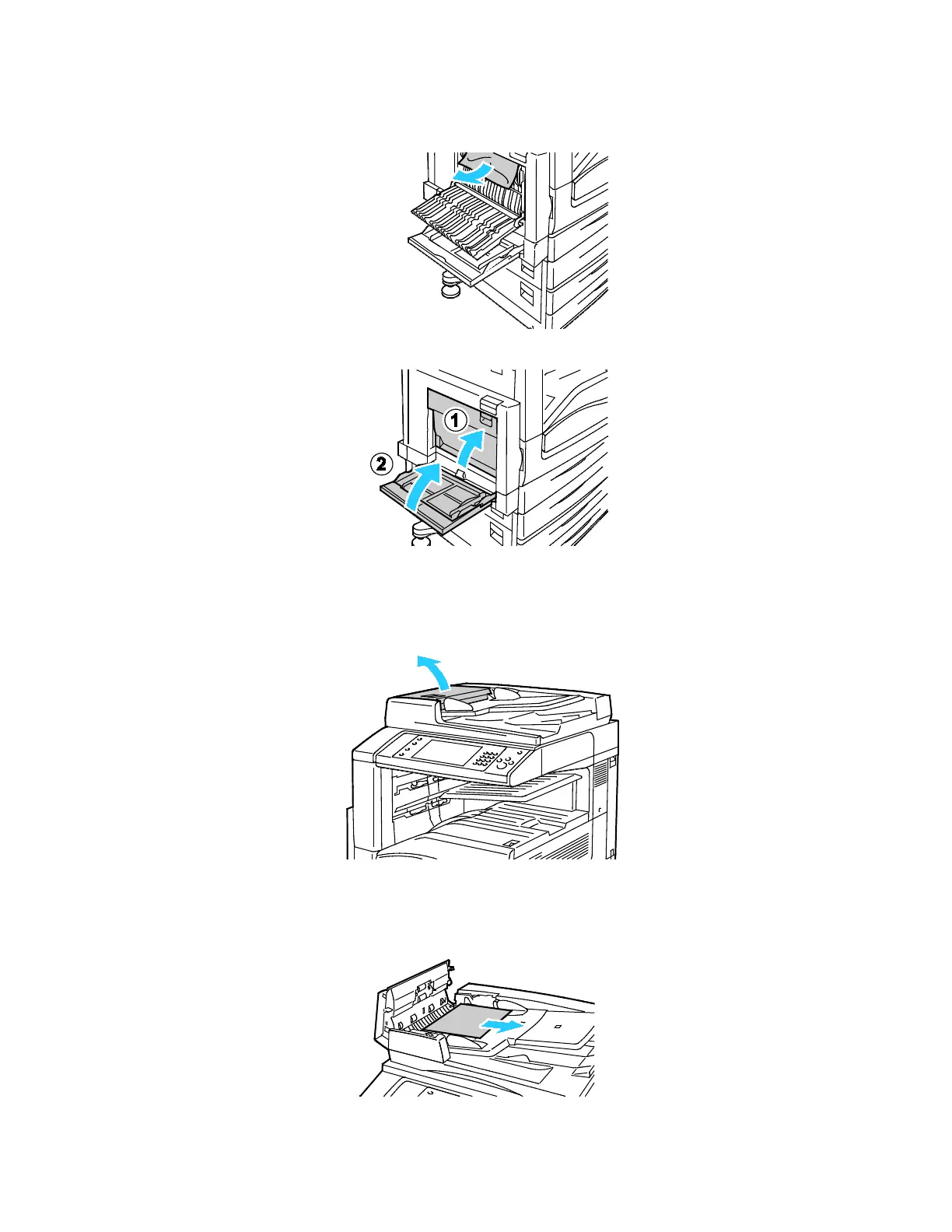

3. Remove the jammed paper.

4. Close door D, then close tray 5.

Clearing Jams in the Document Feeder

1. Lift the lever and open the top cover of the document feeder as shown.

2. If the original is not caught in the entry to the document feeder, pull it straight out in the direction

shown.
