Troubleshooting
248 Xerox
®
WorkCentre
®
7220/7220i/7225/7225i Color Multifunction Printer
User Guide
Clearing Staple Jams
This section includes:
• Clearing Staple Jams in the Integrated Finisher ................................................................................................ 248
• Clearing Staple Jams in the Office Finisher LX ................................................................................................... 249
• Clearing Booklet Staple Jams in the Office Finisher LX ................................................................................... 251

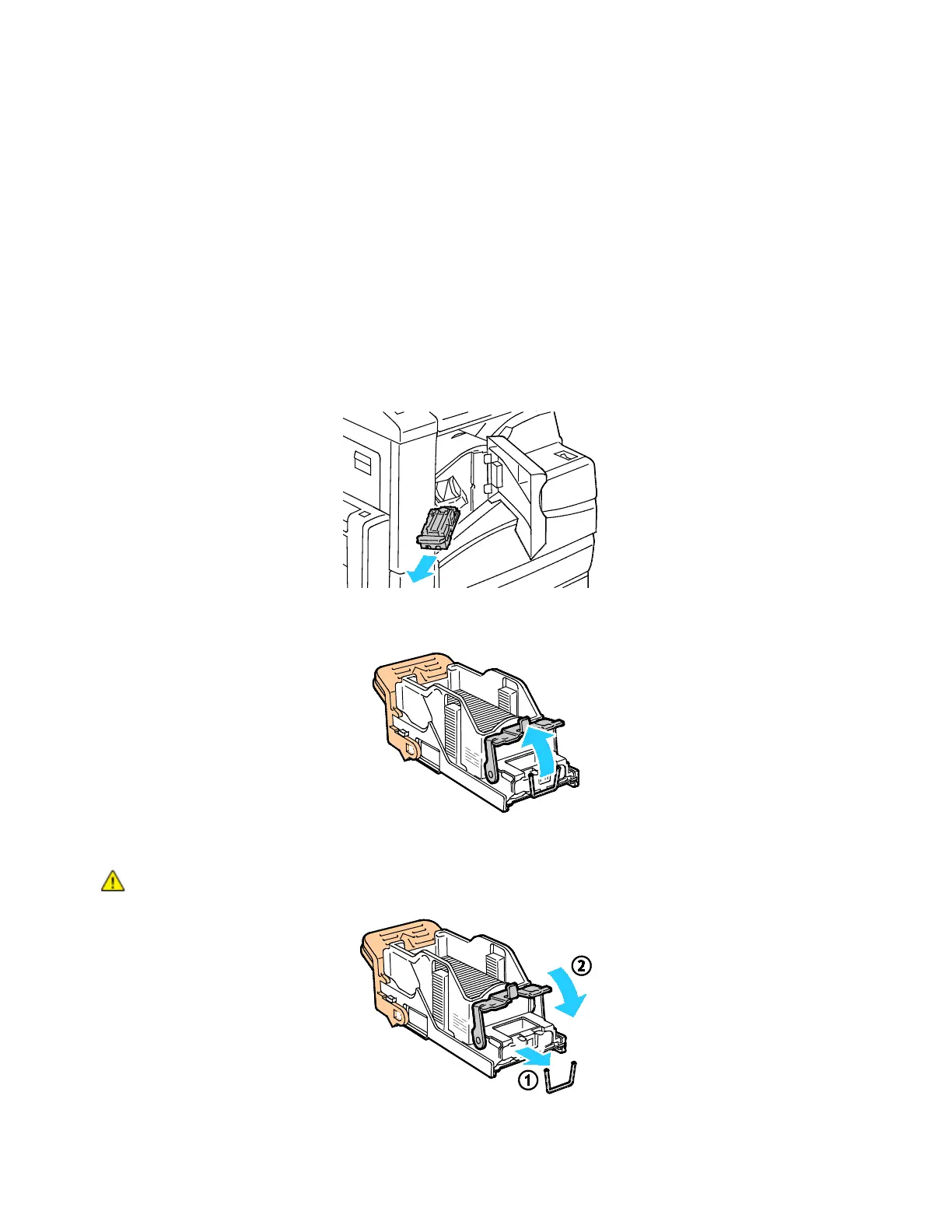

Clearing Staple Jams in the Integrated Finisher
1. Grip the staple cartridge by the orange handle and pull it firmly toward you to remove it.
2. Remove any loose staples or other debris from inside the finisher.
3. Pull the staple cartridge clamp firmly in the direction shown to open it.
4. Remove the jammed staples (1), then push the clamp in the direction shown until it snaps into the
locked position (2).
WARNING: The points of the jammed staples are sharp. Remove the jammed staples carefully.

Xerox WorkCentre 7225 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Standard
Functions	Print, Copy, Scan, Fax
Memory	2 GB
Fax Speed	33.6 Kbps
Print Speed	Up to 25 ppm
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Hard Drive	160 GB
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	640 x 670 x 1135 mm (with optional feeder)
