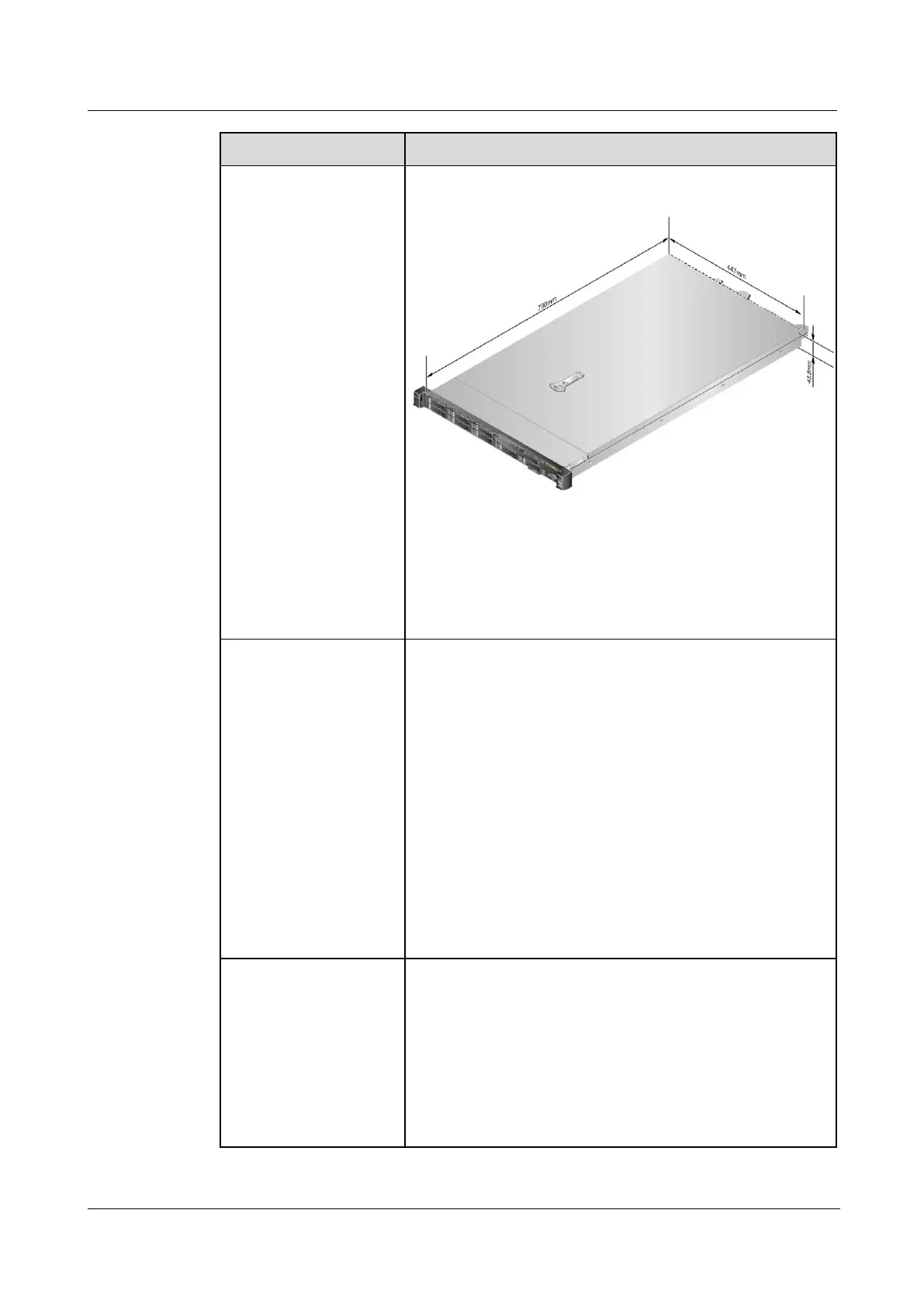

Figure 6-1 Physical dimensions (example: 2.5" drive chassis)
NOTE
⚫
See Figure 6-1 for methods in measuring physical dimensions of
the chassis.
⚫
Methods measuring 3.5" and 2.5" drive chassis are the same. The
2.5" drive chassis is used as an example.
⚫
Requirements for cabinet installation:
Cabinet compliant with the International Electrotechnical
Commission (IEC) 297 standard
− Cabinet width: 482.6 mm (19.00 in.)
− Cabinet depth ≥ 1000 mm (39.37 in.)
⚫
Requirements for guide rail installation:
− L-shaped guide rails: apply only to our company's
cabinets.
− Static rail kit: applies to cabinets with a distance of 610
mm to 950 mm (24.02 in. to 37.40 in.) between the front
and rear mounting bars.
− Ball bearing rail kit: applies to cabinets with a distance
of 609 mm to 950 mm (23.98 in. to 37.40 in.) between
the front and rear mounting bars.
⚫
Net weight
− Maximum weight for server with 4 x 3.5" drives: 20.5
kg (45.19 lb)
− Maximum weight for server with 8 x 2.5" drives: 18.0
kg (39.68 lb)
− Maximum weight for server with 10 x 2.5" drives: 18.5
kg (40.79 lb)
⚫
Packaging materials: 5 kg (11.03 lb)
