Chapter 1: AC701 Evaluation Board Features
USB JTAG Module
[Figure 1-2, callout 5]
JTAG configuration is provided through a Digilent onboard USB-to-JTAG configuration
logic module (U26) where a host computer accesses the AC701 board JTAG chain through
a standard-A plug (host side) to micro-B plug (AC701 board side) USB cable.
A 2-mm JTAG header (J4) is also provided in parallel for access by Xilinx download cables
such as the Platform Cable USB II and the Parallel Cable IV.
The JTAG chain of the AC701 board is illustrated in Figure 1-8. JTAG configuration is
allowed at any time regardless of FPGA mode pin settings. JTAG initiated configuration
takes priority over the configuration method selected through the FPGA mode pin settings
at SW1.
When an FMC card is attached to the AC701 board, it is automatically added to the JTAG
chain through electronically controlled single-pole single-throw (SPST) switch U27. The
SPST switch is in a normally closed state and transitions to an open state when an FMC
card is attached. Switch U27 adds an attached FMC HPC mezzanine card to the FPGAs
JTAG chain as determined by the FMC_HPC_PRSNT_M2C_B signal. The attached FMC
card must implement a TDI-to-TDO connection through a device or bypass jumper in
order for the JTAG chain to be completed to the FPGA U1.
X-Ref Target - Figure 1-8

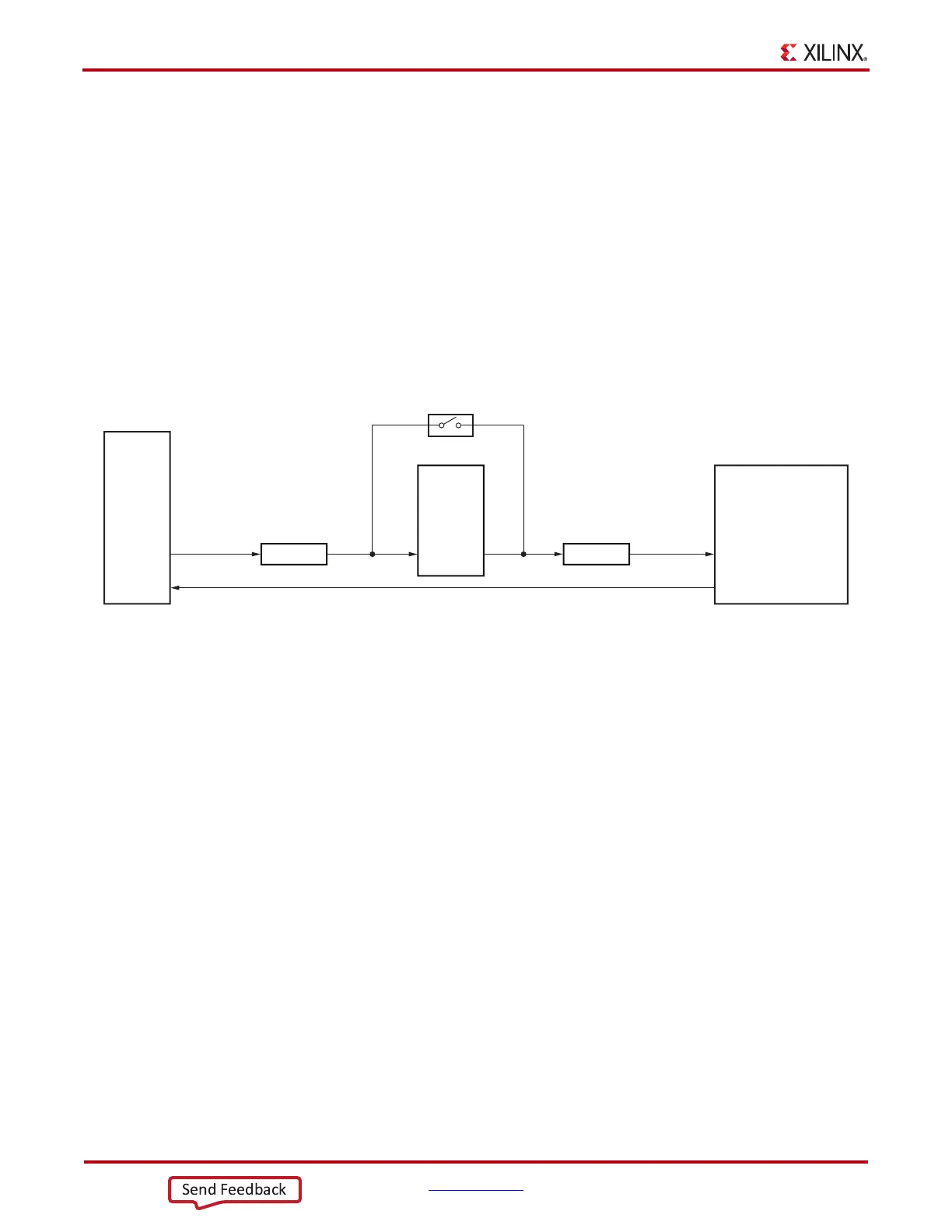

Figure 1-8: JTAG Chain Block Diagram
UG952_c1_08_012913
Part of U19
BUFFER
USB
Module
(U26)
or
JTAG
Connector
(J4)
TDO
TDI
U1
FPGA
TDI
TDO
FMC HPC
Connector
TDI
TDO
J30
N.C.
SPST Bus Switch
U27
Part of U19
BUFFER
