Chapter 1: VC7222 IBERT Getting Started Guide
2. In the Open Hardware Manager window, click Open a new hardware target
(highlighted in Figure 1-11).
3. An Open Hardware Target wizard starts. Click Next to run the wizard.
4. In the Hardware Server Settings window, select Local server (target is on
local machine). Click Next to open the server and connect to the Xilinx TCF JTAG
cable.
X-Ref Target - Figure 1-11

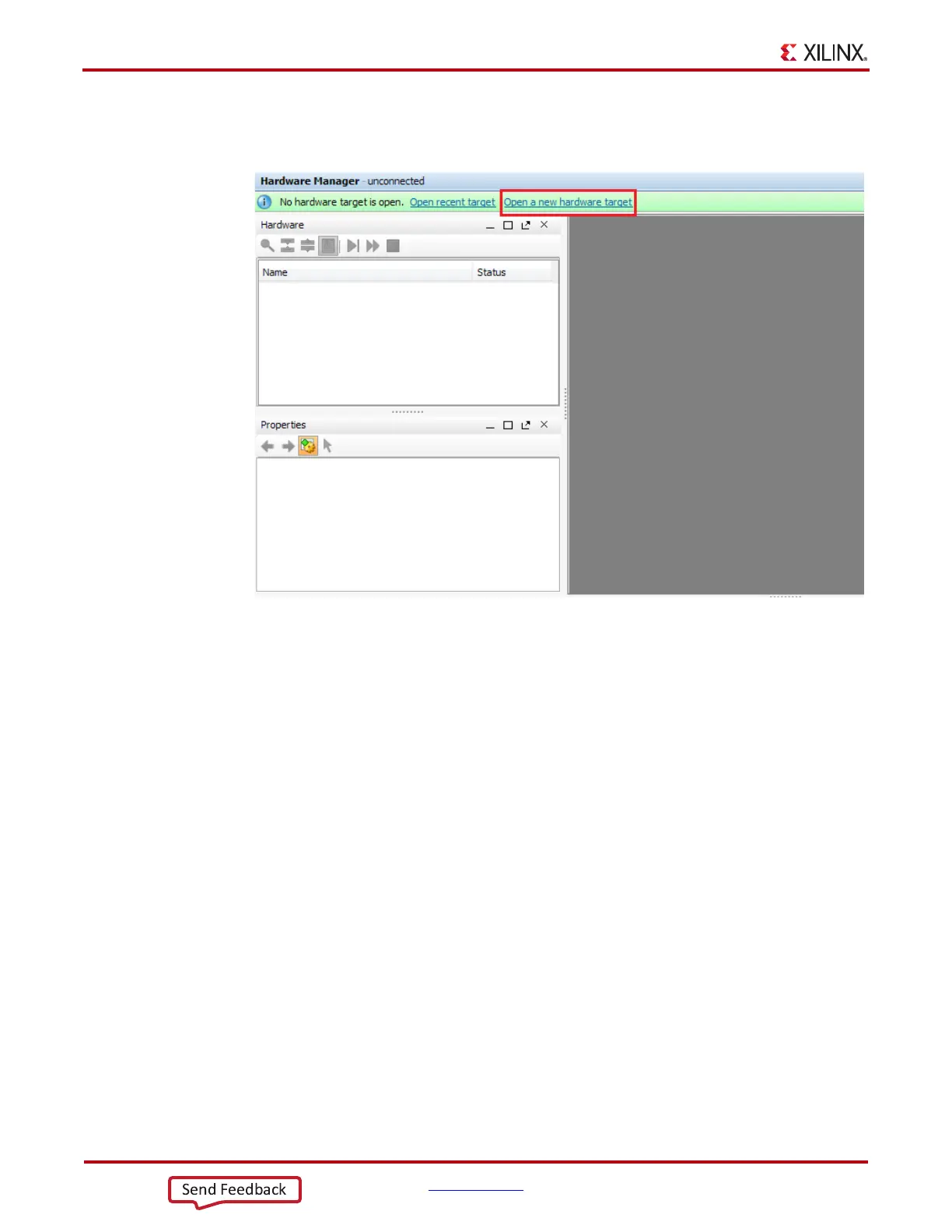

Figure 1-11: Open a New Hardware Target
8*BFBB
