Chapter 1: VC7222 IBERT Getting Started Guide
3. Vivado Design Suite reports that the XC7VH580T is programmed and displays the
SuperClock-2 VIO core and the IBERT core. To configure the SuperClock-2 module,
click Tools > Run Tcl Script (Figure 1-15). In the Run Script window, navigate
to the setup_scm2_325_00.tcl script in the extracted files and click OK.

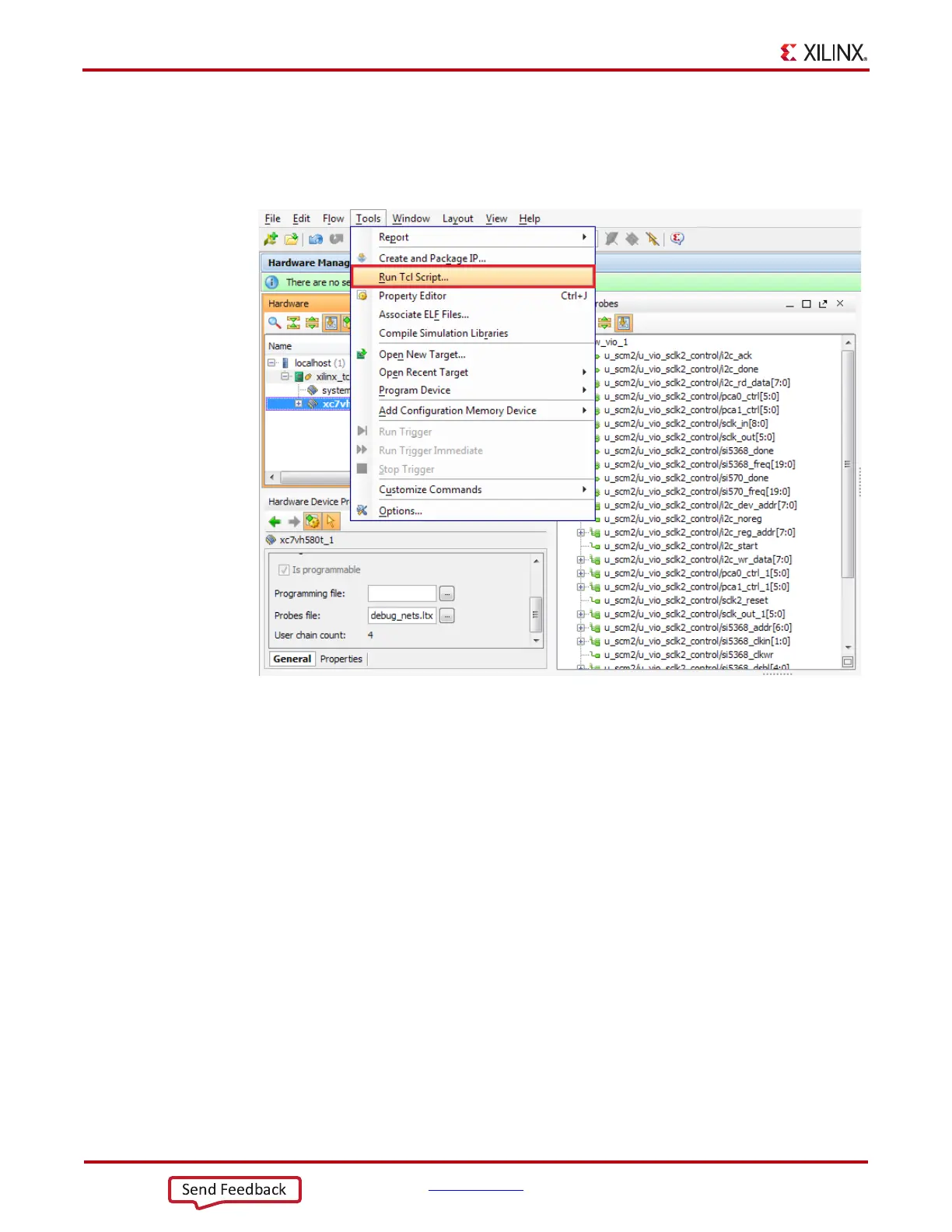

X-Ref Target - Figure 1-15
Figure 1-15: Run TCL Script
