Xilinx Virtex-7 FPGA VC7222 IBERT User Manual

VC7222 IBERT Getting Started Guide www.xilinx.com 21
UG971 (v5.0) June 12, 2014
Running the GTH IBERT Demonstration
4. To view the SuperClock-2 settings in the VIO core, select the probe signal from the
Debug Probes window and drag it to the VIO-hw_vio_1 window. For example, the
frequencies, ROM addresses, and start signals are selected (Figure 1-16).
Note:
The ROM address values for the Si5368 and Si570 devices (i.e., Si5368 ROM Addr and
Si570 ROM Addr) are preset to 3 to produce an output frequency of 325.000 MHz. Entering a
different ROM address changes the reference clock(s) frequency. The complete list of
pre-programmed SuperClock-2 frequencies and their associated ROM addresses is provided in
Ta bl e 1 - 2 .
X-Ref Target - Figure 1-16

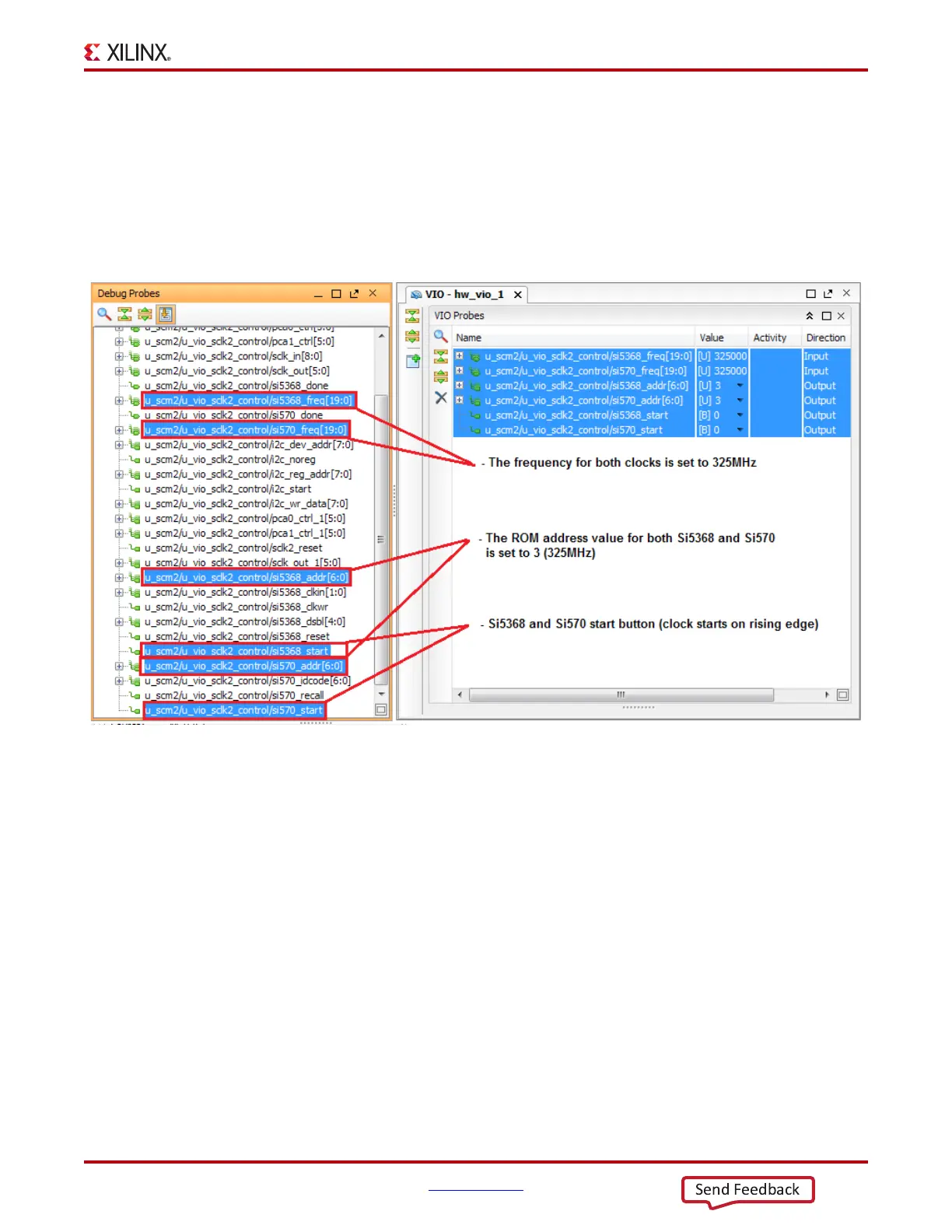

Figure 1-16: SuperClock-2 Module VIO Core
8*BFBB
Send Feedback
