Xilinx Virtex-7 FPGA VC7222 IBERT User Manual

22 www.xilinx.com VC7222 IBERT Getting Started Guide
UG971 (v5.0) June 12, 2014
Chapter 1: VC7222 IBERT Getting Started Guide
5. To view the GTH transceiver operation, click Layout > Serial I/O Analyzer.
From the top of the Hardware Manager window, select Auto-Detect Links to
display all available links automatically. Links can also be created manually in the
Links window by right-clicking and selecting Create Links, or by clicking the
Create Links button (Figure 1-17).
X-Ref Target - Figure 1-17

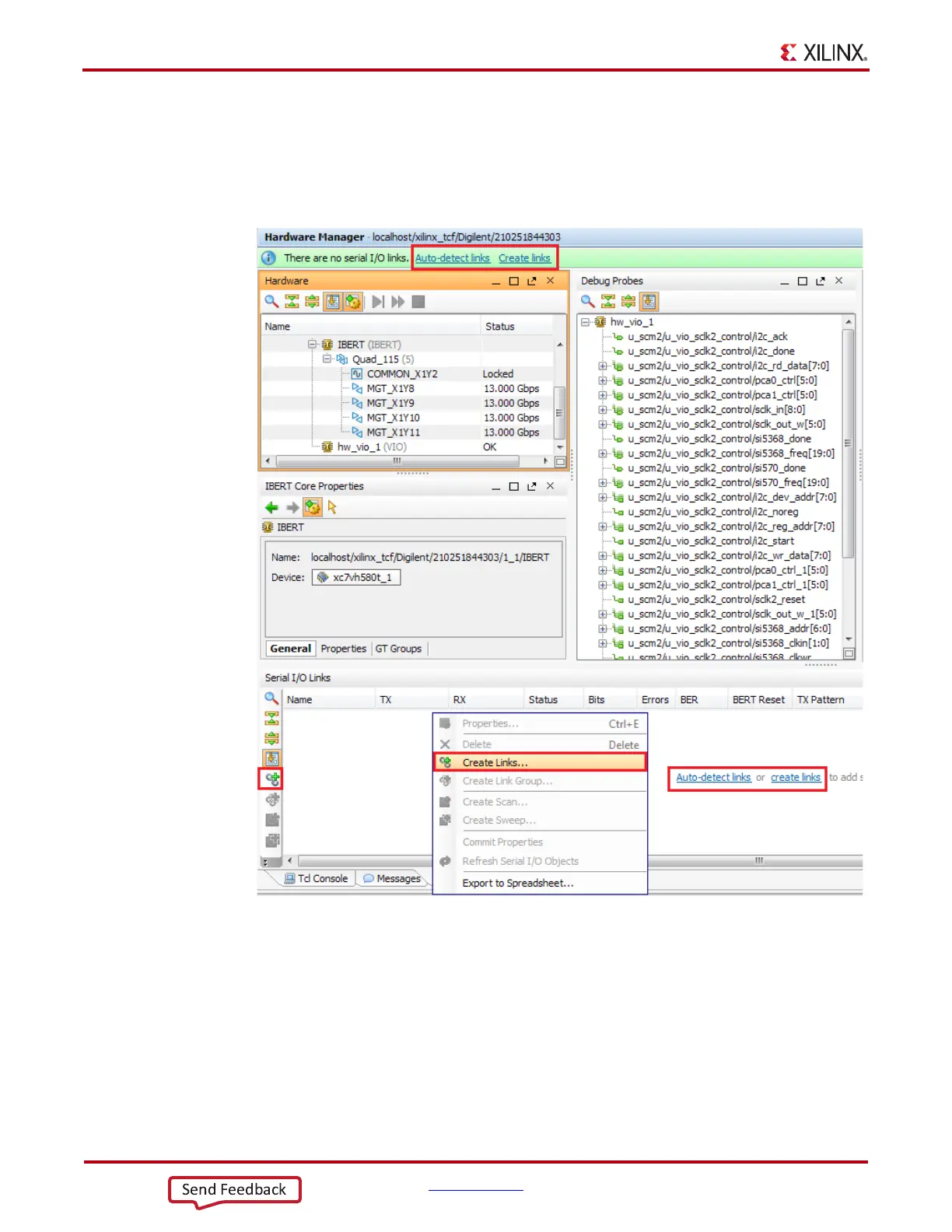

Figure 1-17: Serial I/O Analyzer—Create Links
8*BFBB
Send Feedback
