Running the GTZ IBERT Demonstration
4. To view the SuperClock-2 settings in the VIO core, select the probe signal from the
Debug Probes window and drag it to the VIO-hw_vio_1 window. For example, the
frequencies, ROM addresses, and start signals are selected (Figure 1-30).
Note:
The ROM address values for the Si5368 and Si570 devices (i.e., Si5368 ROM Addr and
Si570 ROM Addr) are preset to 81 to produce an output frequency of 255.000 MHz. Entering a
different ROM address changes the reference clock(s) frequency. The complete list of
pre-programmed SuperClock-2 frequencies and their associated ROM addresses is provided in
Ta bl e 1 - 2 .
X-Ref Target - Figure 1-30

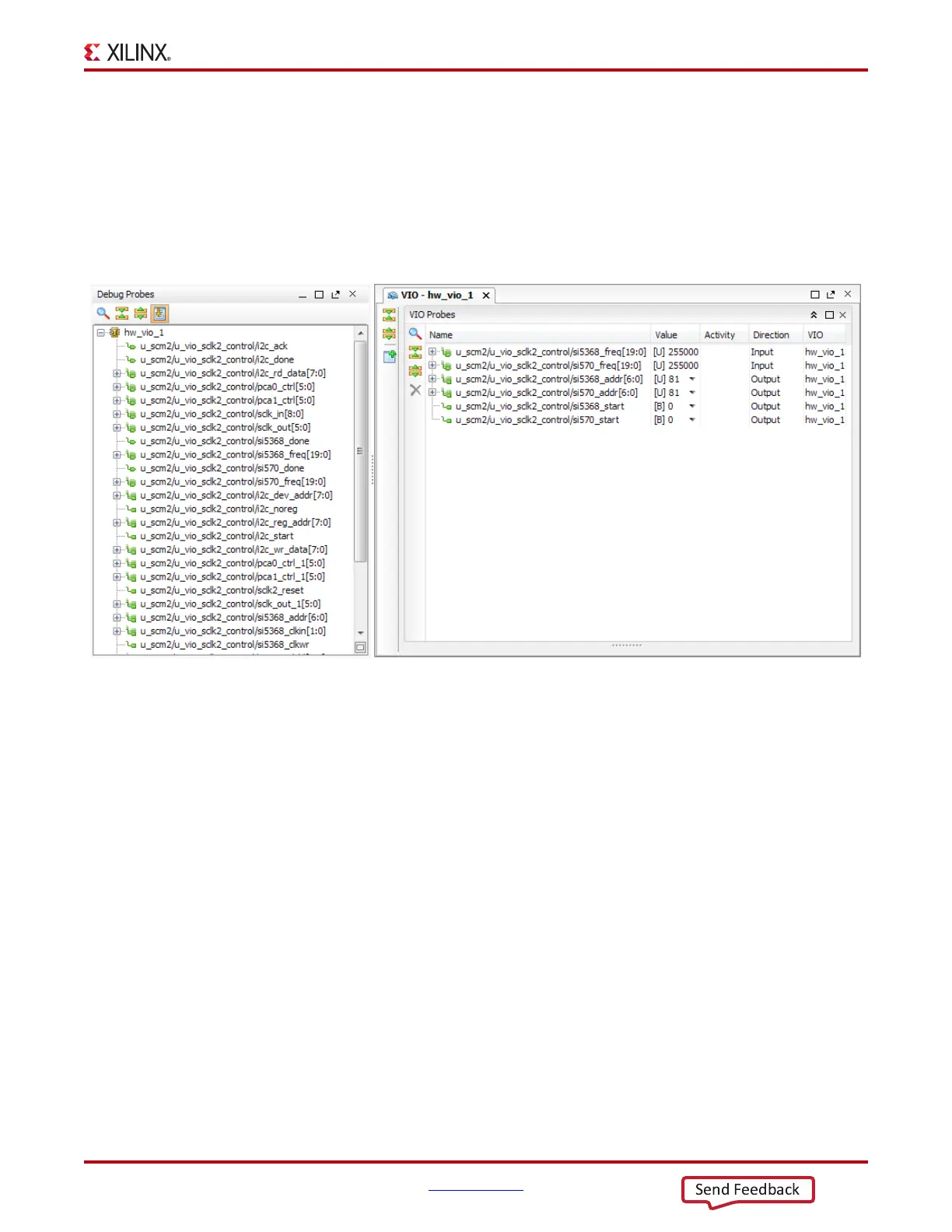

Figure 1-30: SuperClock-2 Module VIO Core
