Chapter 1: VC7222 IBERT Getting Started Guide
5. To view the GTZ transceiver operation, click Layout > Serial I/O Analyzer.
From the top of the Hardware Manager window, select Auto-Detect Links to
display all available links automatically. Links can also be created manually in the
Links window by right-clicking and selecting Create Links, or by clicking the
Create Links button (Figure 1-31).
X-Ref Target - Figure 1-31

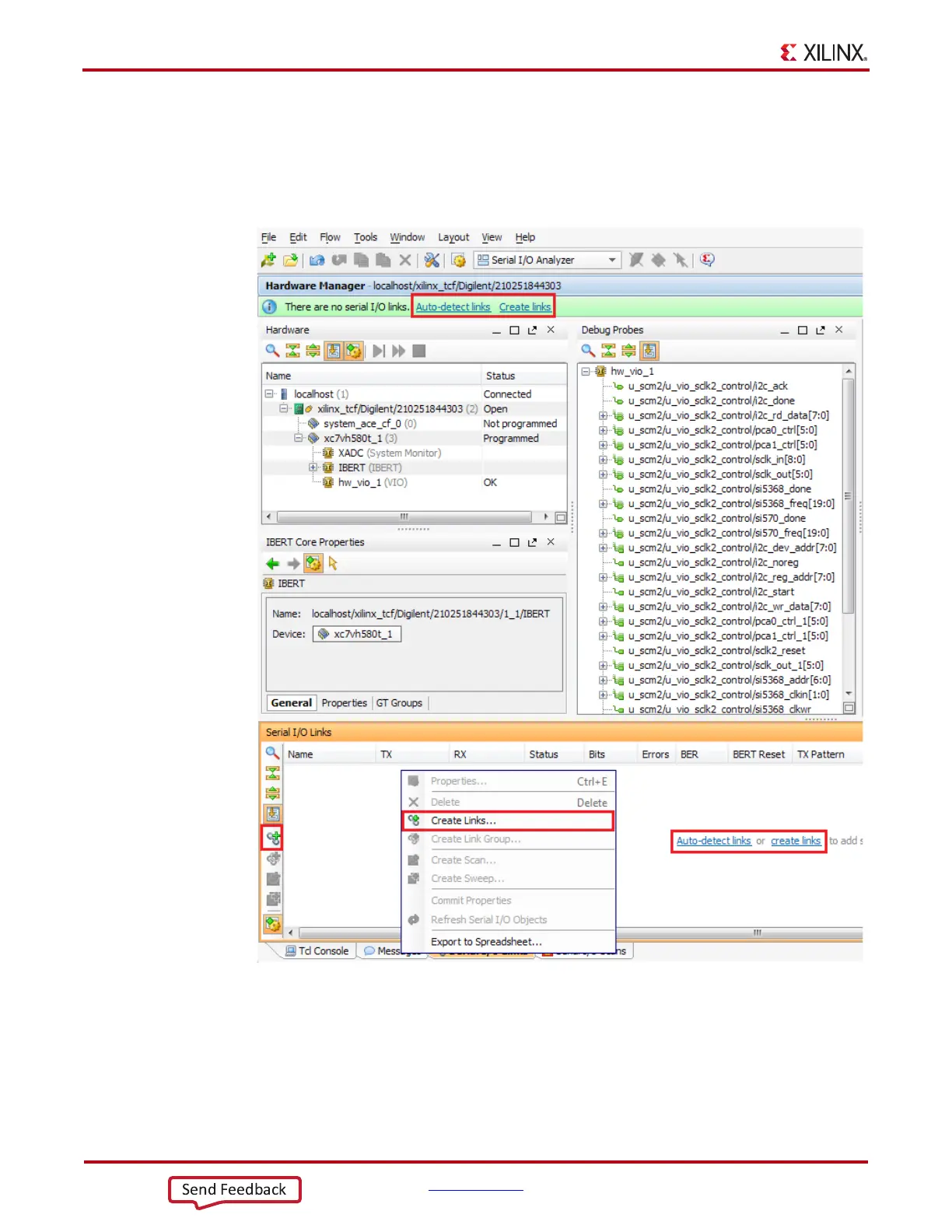

Figure 1-31: Serial I/O Analyzer - Create Links
