42 www.xilinx.com VC7222 IBERT Getting Started Guide
UG971 (v5.0) June 12, 2014
Chapter 2: Creating the GTH IBERT Core
3. When the Create a New Customized IP Location dialog window opens (not shown),
click Next.
4. In the Manage IP Settings window, select a part by clicking the (...) button next to
the Part field. A Select Device window pops up. Use the drop-down menu items to
narrow the choices. Select the xc7vh580thcg1155-2G device (Figure 2-2). Click OK.
X-Ref Target - Figure 2-2

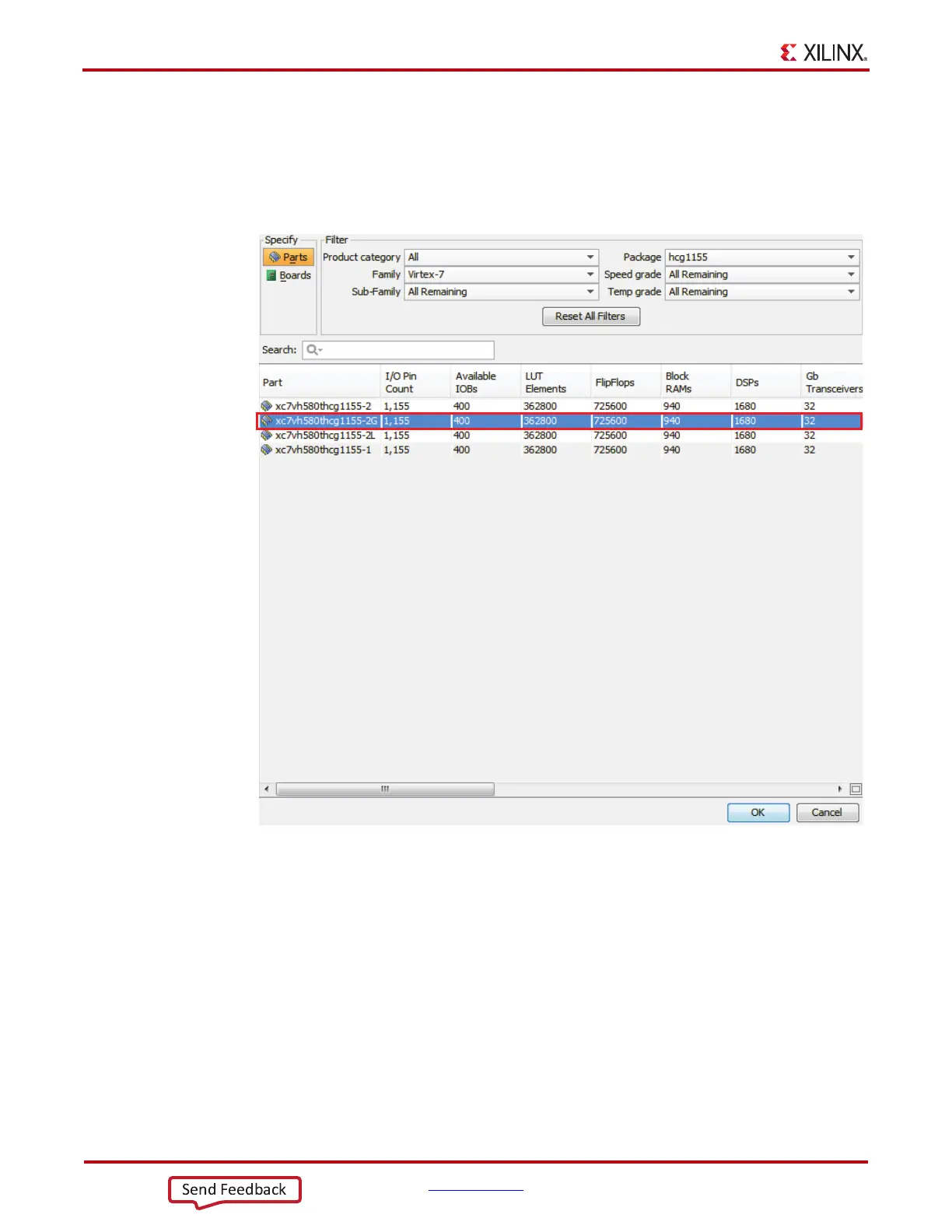

Figure 2-2: Select Device
8*BFBB
