6 www.xilinx.com VC7203 GTX Transceiver Characterization Board
UG957 (v1.3) October 17, 2014
Chapter 1: VC7203 Board Features and Operation
• Active cooling for the FPGA
The VC7203 board block diagram is shown in Figure 1-1.
Detailed Description
Figure 1-2 shows the VC7203 board described in this user guide. Each numbered feature
that is referenced in Figure 1-2 is described in the sections that follow.
Caution!
The VC7203 board can be damaged by electrostatic discharge (ESD). Follow standard
ESD prevention measures when handling the board.
Caution! Do not remove the rubber feet from the board. The feet provide clearance to prevent short
circuits on the back side of the board.
Note: Figure 1-2 is for reference only and might not reflect the current revision of the board.
X-Ref Target - Figure 1-1

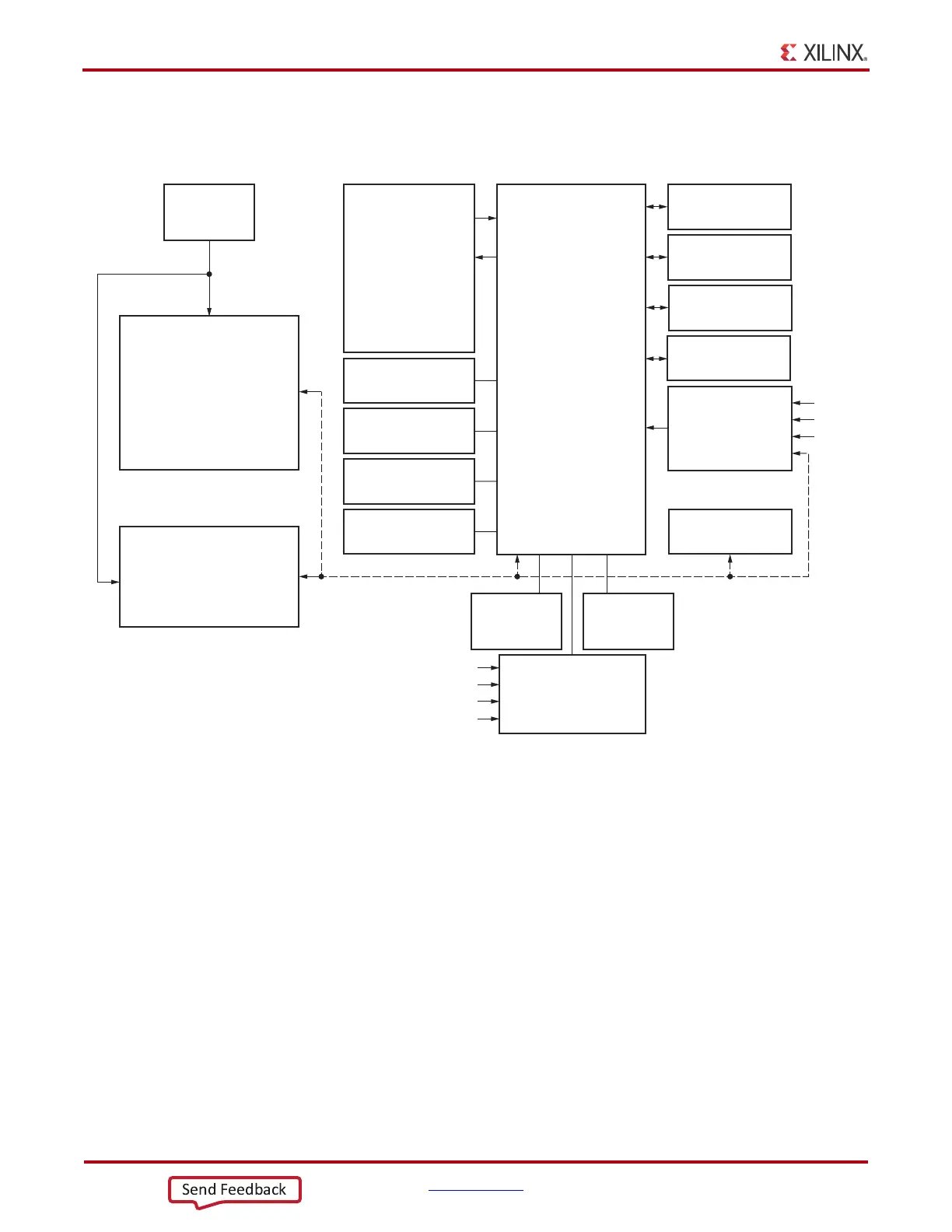

Figure 1-1: VC7203 Board Block Diagram
UG957_c1_01_120213
FPGA Power Source
Onboard Regulation:
Board Utility Power
Onboard Regulation:
Pushbuttons,
DIP Switches,
and LEDs
SuperClock-2 Module
Interface
GTX Transceivers
Virtex-7 FPGA
XC7VX485T-3 FFG1761E
Select I/O Termination
and VTT Jacks
Analog/Digital
Converter (XADC)
FMC1 Interface
High-Performance I/O
USB to UART
Bridge
FMC2 Interface
High-Performance I/O
I
2
C Bus
Management
7 Series
GTX Power Module
Interface
12V
PMBus
5V
3.3V
User Clocks
System ACE SD
Controller
Power In
12V
DC
PMBus
VCCINT 1.0V, 20A
VCCBRAM 1.0V, 10A
VCCAUX 1.8V, 10A
VCCAUX_IO 1.8V, 10A
VCCO_HP 1.8V, 10A
VCCO_HR 1.8V, 10A
VCCO_0 2.5V, 7.5A
5.0V, 10A
3.3V, 18A
2.5V, 18A
GTX
Power Monitoring
VCCO_HR
5V
3.3V
2.5V
FMC3 Interface
High-Range I/O
1
Notes
1. GTX transceiver QUAD 111, QUAD 112,
and the FMC3 interface are not available
with the XC7VX485T device.
QUAD 111
1
QUAD 112
1
QUAD 113
QUAD 114
QUAD 115
QUAD 116
QUAD 117
QUAD 118
QUAD 119
