Xilinx ZC706 User Manual

ZC706 Evaluation Board User Guide www.xilinx.com 35
UG954 (v1.5) September 10, 2015
Feature Descriptions
The system clock source is an LVDS 200 MHz oscillator at U64. It is wired to a multi-region
clock capable (MRCC) input on programmable logic (PL) bank 34. The signal pair is named
SYSCLK_P and SYSCLK_N and each signal is connected to U1 (pins H9 and G9, respectively)
on the XC7Z045 AP SoC.
• Oscillator: SiTime SiT9102AI-243N25E200.00000 (200 MHz)
• Frequency tolerance: 50 ppm
• LVDS Differential Output
The system clock circuit is shown in Figure 1-11.
For more details, see the SiTime SiT9102 data sheet [Ref 20].
Programmable User Clock
[Figure 1-2, callout 8]
The ZC706 evaluation board has a programmable low-jitter 3.3V LVDS differential oscillator
(U37) connected to the MRCC inputs of bank 10. This USRCLK_P and USRCLK_N clock signal
pair is connected to XC7Z045 AP SoC U1 pins AF14 and AG14, respectively. On power-up
the user clock defaults to an output frequency of 156.250 MHz. User applications can
change the output frequency within the range of 10 MHz to 810 MHz through an I
2
C
interface. Power cycling the ZC706 evaluation board reverts the user clock to the default
frequency of 156.250 MHz.
• Programmable Oscillator: Silicon Labs Si570BAB0000544DG (10 MHz–810 MHz)
• Frequency tolerance: 50 ppm
• LVDS Differential Output

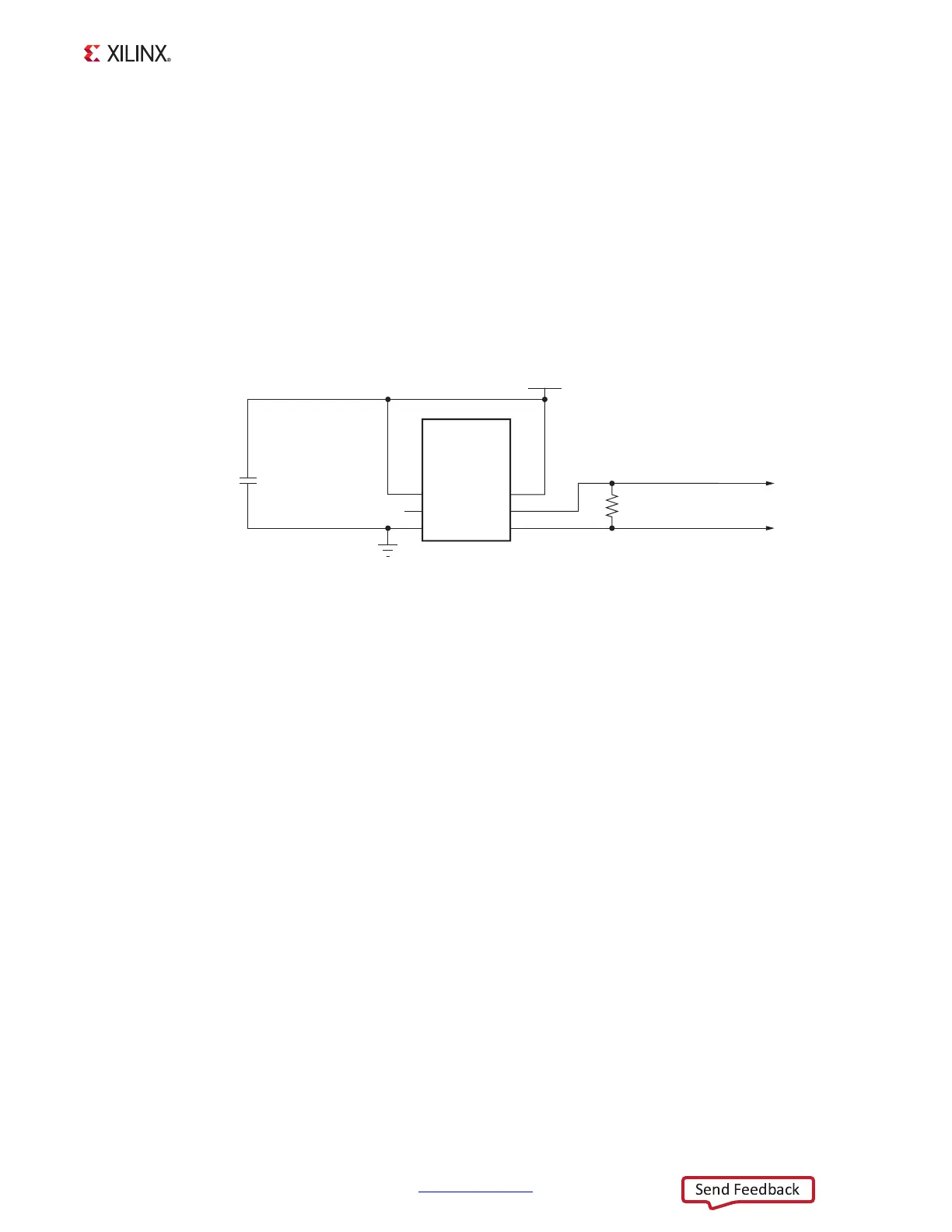

X-Ref Target - Figure 1-11
Figure 1-11: System Clock Source
UG954_c1_11_041113
GND
VCC2V5
SIT9102
200 MHz
Oscillator
OE
NC
GND
VCC
OUT_B
OUT
1
2
3
6
5
4
U64
R322
100Ω
1/20W 5%
SYSCLK_P
SYSCLK_N
C89
0.1 µF 10V
X5R
1
2
2
1
Send Feedback
