Xilinx ZC706 User Manual

ZC706 Evaluation Board User Guide www.xilinx.com 108
UG954 (v1.5) September 10, 2015
Appendix D
Board Setup
Installing the ZC706 Board in a PC Chassis
Installation of the ZC706 board inside a computer chassis is required when developing or
testing PCI Express® functionality.
When the ZC706 board is used inside a computer chassis (that is, plugged in to the PCIe®
slot), power is provided from the ATX power supply 4-pin peripheral connector through the
ATX adapter cable shown in Figure D-1 to J22 on the ZC706 board. The Xilinx part number
for this cable is 2600304, and is equivalent to Sourcegate Technologies part number
AZCBL-WH-1109-RA4. For information on ordering this cable, see [Ref 36].
To install the ZC706 board in a PC chassis:
1. On the ZC706 board, remove all six rubber feet and standoffs and the PCIe bracket. The
standoffs and feet are affixed to the board by screws on the top side of the board.
Remove all six screws.
2. Re-attach the PCIe bracket to the ZC706 board using two of the previously removed
screws.
3. Power down the host computer and remove the power cord from the PC.
4. Open the PC chassis following the instructions provided with the PC.
5. Select a vacant PCIe expansion slot and remove the expansion cover (at the back of the
chassis) by removing the screws on the top and bottom of the cover.
6. Plug the ZC706 board into the PCIe connector at this slot and secure its PCIe bracket to
the chassis with a screw at the top of the bracket.
X-Ref Target - Figure D-1

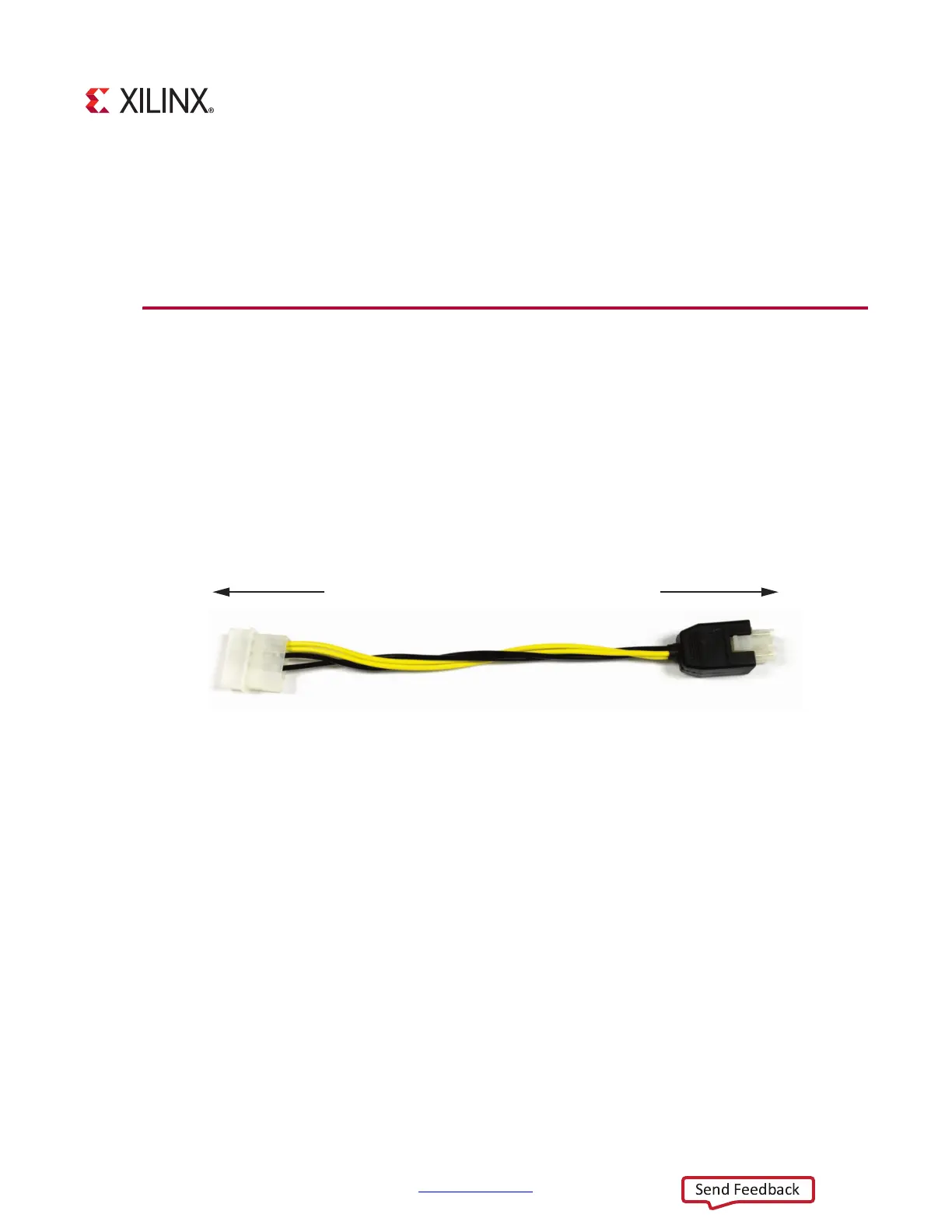

Figure D-1: ATX Power Supply Adapter Cable
UG954_aD_01_100212
To ATX 4-Pin Peripheral
Power Connector
To J22 on ZC706 Board
