Xilinx ZCU102 User Manual

ZCU102 Evaluation Board User Guide www.xilinx.com 114
UG1182 (v1.2) March 20, 2017
Appendix A
VITA 57.1 FMC Connector Pinouts
Overview

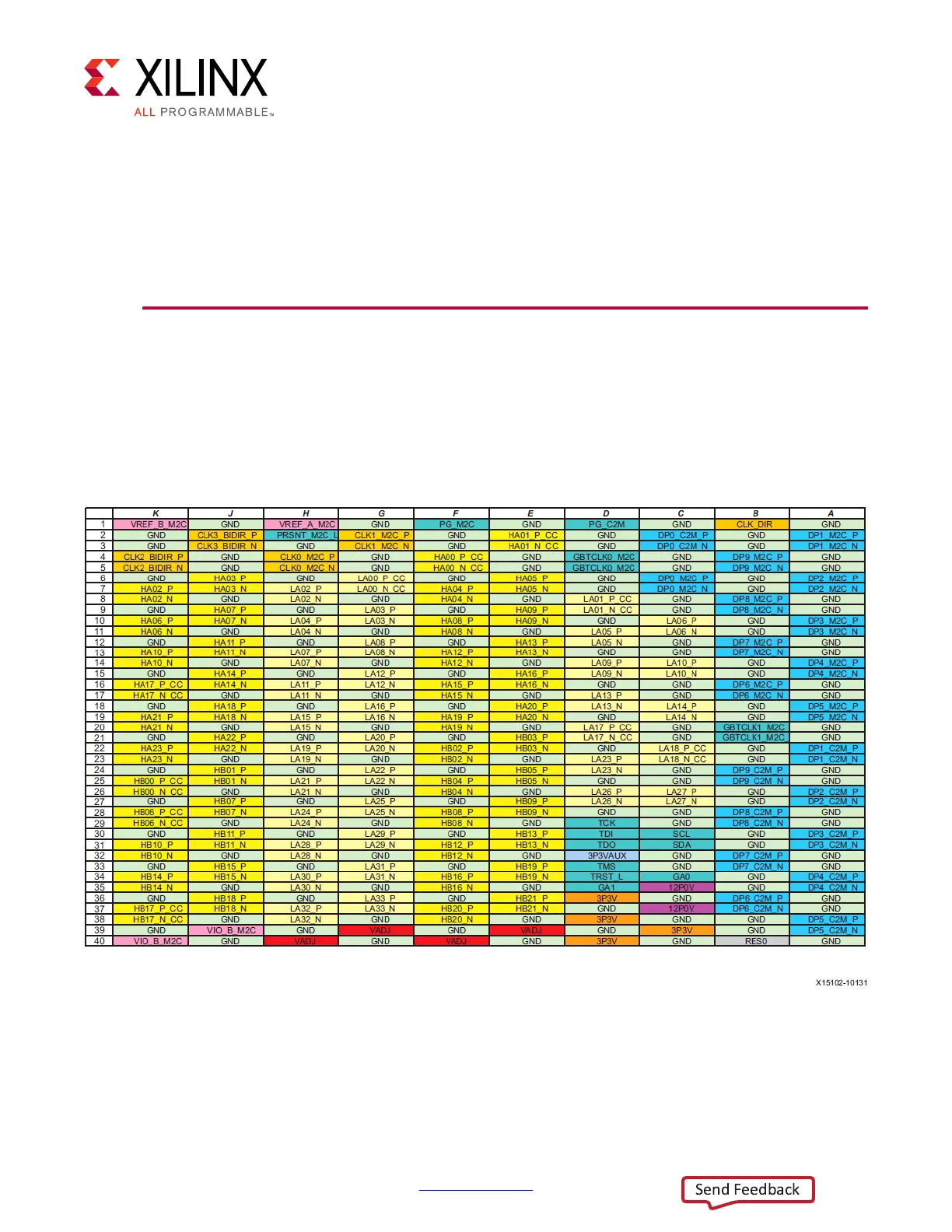

Figure A-1 shows the pinout of the FPGA mezzanine card (FMC) high pin count (HPC)
connector defined by the VITA 57.1 FMC specification. For a description of how the ZCU102
evaluation board implements the FMC specification, see FPGA Mezzanine Card Interface,
page 93, FMC HPC0 Connector J5, page 93, and FMC HPC1 Connector J4, page 98.
X-Ref Target - Figure A-1
Figure A-1: FMC HPC Connector Pinout
Send Feedback

Xilinx ZCU102 Specifications

General

Processor	Quad-core ARM Cortex-A53, Dual-core ARM Cortex-R5
SD Card	MicroSD card slot
Video Outputs	DisplayPort
FPGA	Xilinx Zynq UltraScale+ XCZU9EG-2FFVB1156E
Memory	4GB DDR4 Component Memory
Storage	MicroSD card slot
Ethernet	Gigabit Ethernet
USB	1 x USB 3.0, 1 x USB 2.0
PCIe	PCIe Gen2 x4
Display	DisplayPort
Power Supply	12V DC input
SATA	SATA 3.0
Clocking	Programmable clocks
Operating System Support	PetaLinux
