ZCU102 Evaluation Board User Guide www.xilinx.com 76
UG1182 (v1.2) March 20, 2017
Chapter 3: Board Component Descriptions
X-Ref Target - Figure 3-33

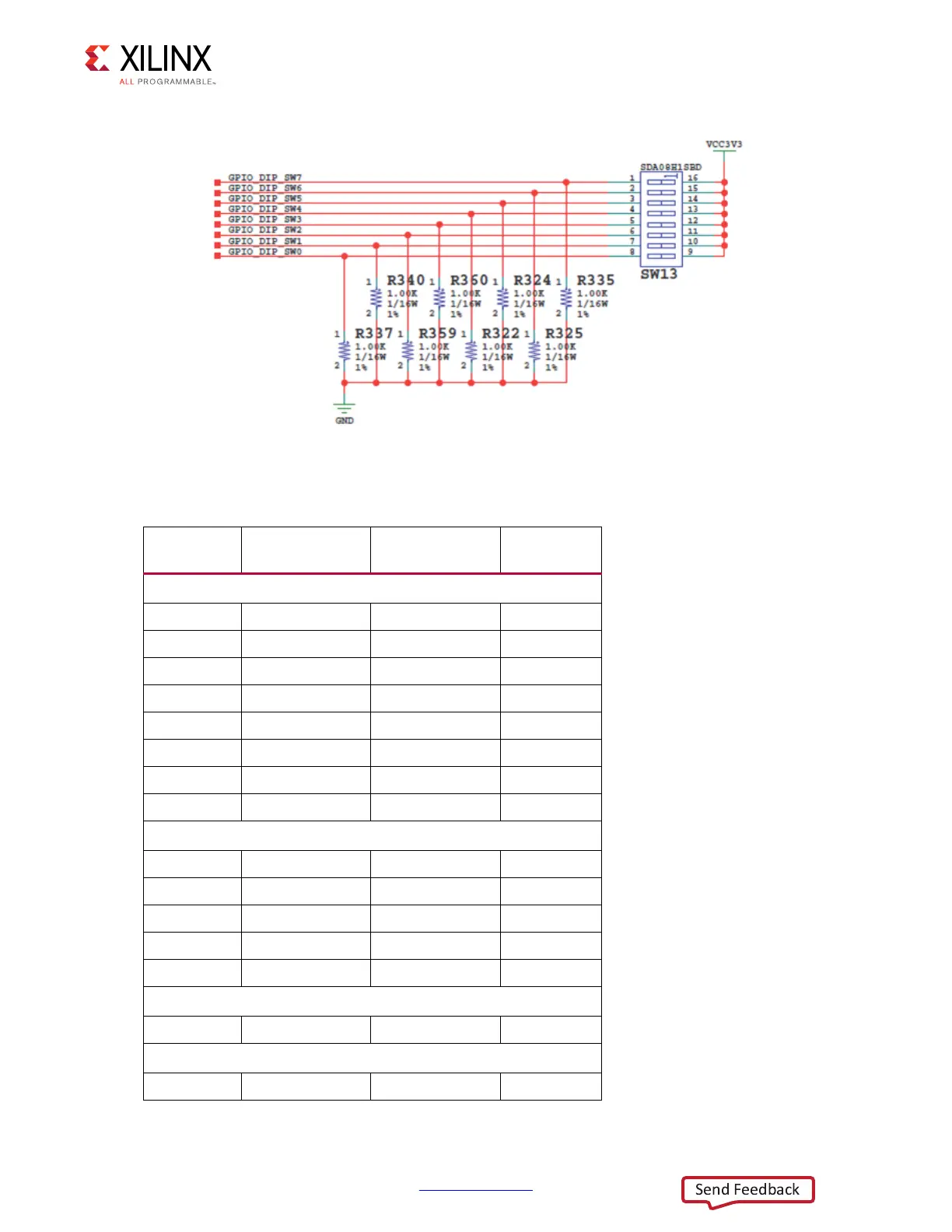

Figure 3-33: GPIO 8-Pole DIP Switch
;
Table 3-33: XCZU9EG U1 to GPIO Connections
XCZU9EG
(U1) Pin
Schematic Net
Name
I/O Standard Device
GPIO LEDs (Active High)
AG14
GPIO_LED_0
LVCMOS33 DS38.2
AF13
GPIO_LED_1
LVCMOS33 DS37.2
AE13
GPIO_LED_2
LVCMOS33 DS39.2
AJ14
GPIO_LED_3
LVCMOS33 DS40.2
AJ15
GPIO_LED_4
LVCMOS33 DS41.2
AH13
GPIO_LED_5
LVCMOS33 DS42.2
AH14
GPIO_LED_6
LVCMOS33 DS43.2
AL12
GPIO_LED_7
LVCMOS33 DS44.2
Directional Pushbuttons (Active High)
AG15
GPIO_SW_N
LVCMOS33 SW18.3
AE14
GPIO_SW_E
LVCMOS33 SW17.3
AF15
GPIO_SW_W
LVCMOS33 SW14.3
AE15
GPIO_SW_S
LVCMOS33 SW16.3
AG13
GPIO_SW_C
LVCMOS33 SW15.3
CPU Reset Pushbutton (Active High)
AM13
CPU_RESET
LVCMOS33 SW20.3
GPIO DIP SW (Active High)
AN14
GPIO_DIP_SW0
LVCMOS33 SW13.8
Send Feedback

Xilinx ZCU102 Specifications

General

Processor	Quad-core ARM Cortex-A53, Dual-core ARM Cortex-R5
SD Card	MicroSD card slot
Video Outputs	DisplayPort
FPGA	Xilinx Zynq UltraScale+ XCZU9EG-2FFVB1156E
Memory	4GB DDR4 Component Memory
Storage	MicroSD card slot
Ethernet	Gigabit Ethernet
USB	1 x USB 3.0, 1 x USB 2.0
PCIe	PCIe Gen2 x4
Display	DisplayPort
Power Supply	12V DC input
SATA	SATA 3.0
Clocking	Programmable clocks
Operating System Support	PetaLinux
