ZCU111 Board User Guide 36
UG1271 (v1.1) August 6, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
DisplayPort standard defines an auxiliary channel that uses LVDS signaling at a 1 Mb/s data
rate, which is translated from single-ended MIO signals to the differential DisplayPort AUX
channel, DPAUX (see Tabl e 3-1 0 ). The DisplayPort circuit is shown in Figure 3-6.
Table 3-10: DPAUX/MIO Connections
XCZU28DR (U1) Pin Net Name
SN74AVC4T245 Level Shifter U10
Pin Name Pin #
D25 MIO30_DP_AUX_IN 2A1 8
B25 MIO29_DP_OE 1A2 7
F25 MIO28_DP_HPD 2A2 9
C25 MIO27_DP_AUX_OUT 1A1 6
X-Ref Target - Figure 3-6

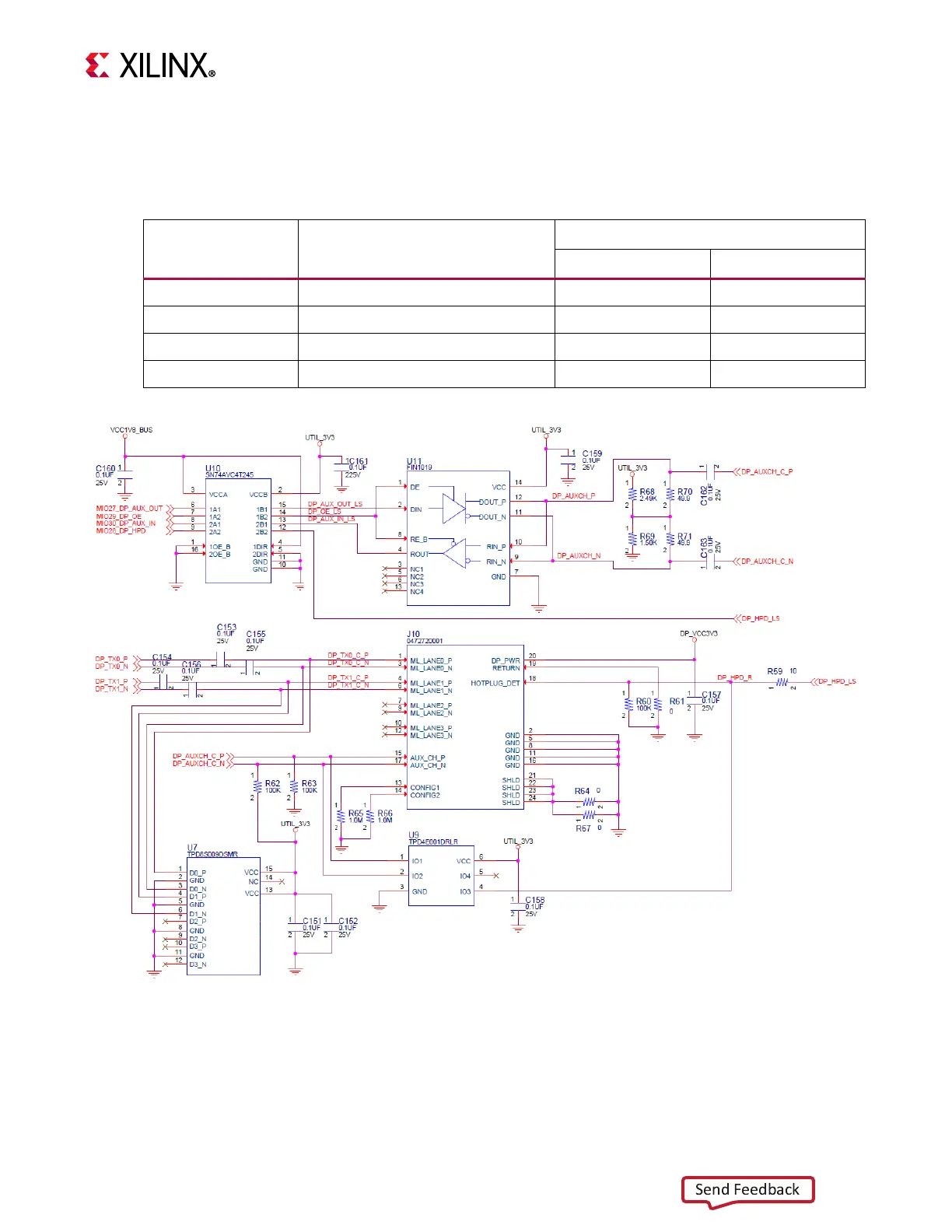

Figure 3-6: DisplayPort Circuit
X20482-062118
Send Feedback
