Chapter 3: Board Component Descriptions
PS M.2 SATA Connector
[Figure 2-1, callout 34]
The M.2 SATA interface is provided for SATA SSD access using the PS-side bank 505 GTR
transceiver. Figure 3-31 shows M.2 connector U40.
The socket 2 SATA adapter pinout with key M is shown in Ta ble 3 -26 . SATA-A data
connection is used for TX and SATA-B for RX. The M.2 connector U40 is a type 2242 (active
component section 22 mm wide with overall length 42 mm form factor) used on socket 2.

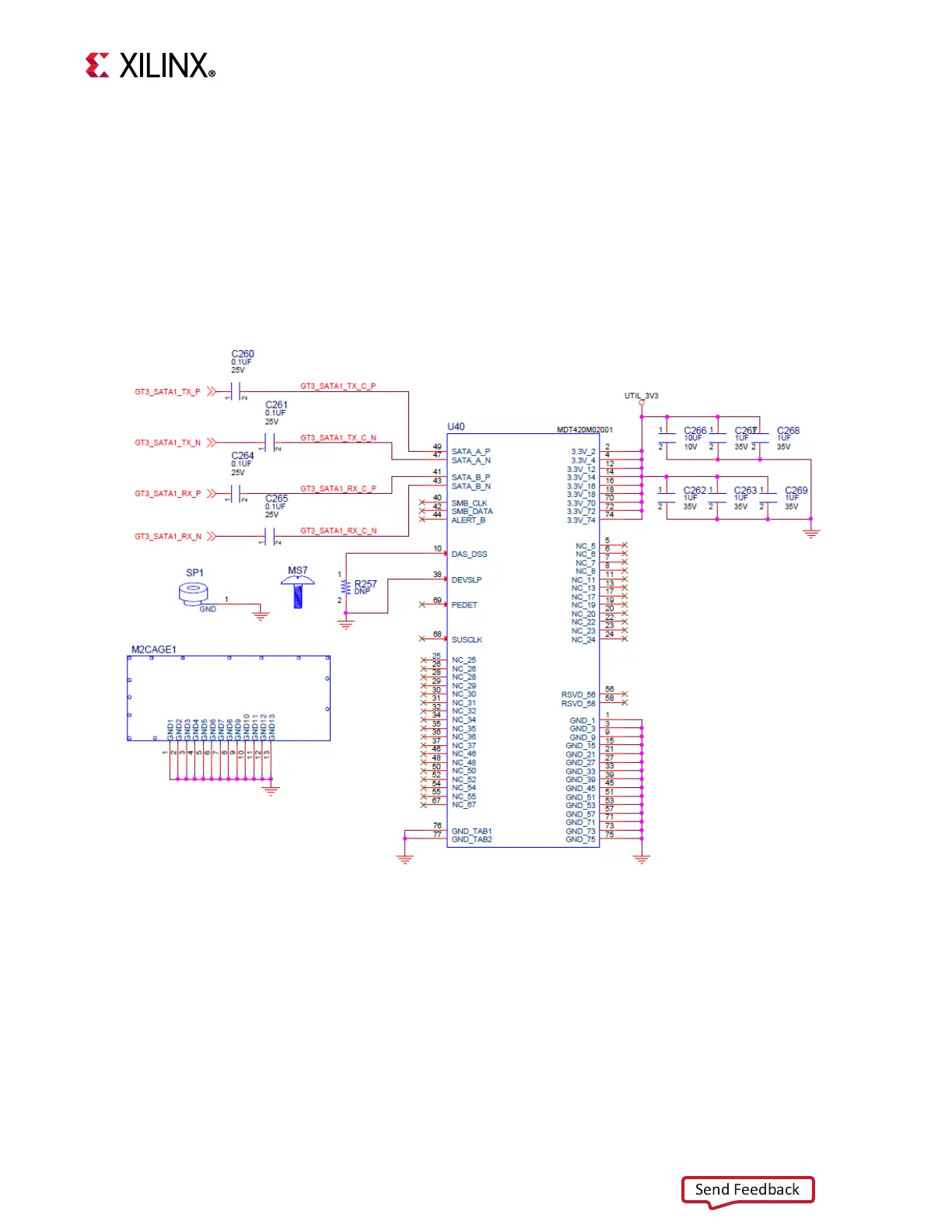

X-Ref Target - Figure 3-31
Figure 3-31: M.2 Connector U170
X20566-062118
