ZCU111 Board User Guide 95
UG1271 (v1.1) August 6, 2018 www.xilinx.com
Appendix D: HW-FMC-XM500
XM500 Card Components
The XM500 card component locations are shown in Figure D-2 and listed in Ta ble D -1 .
X-Ref Target - Figure D-2

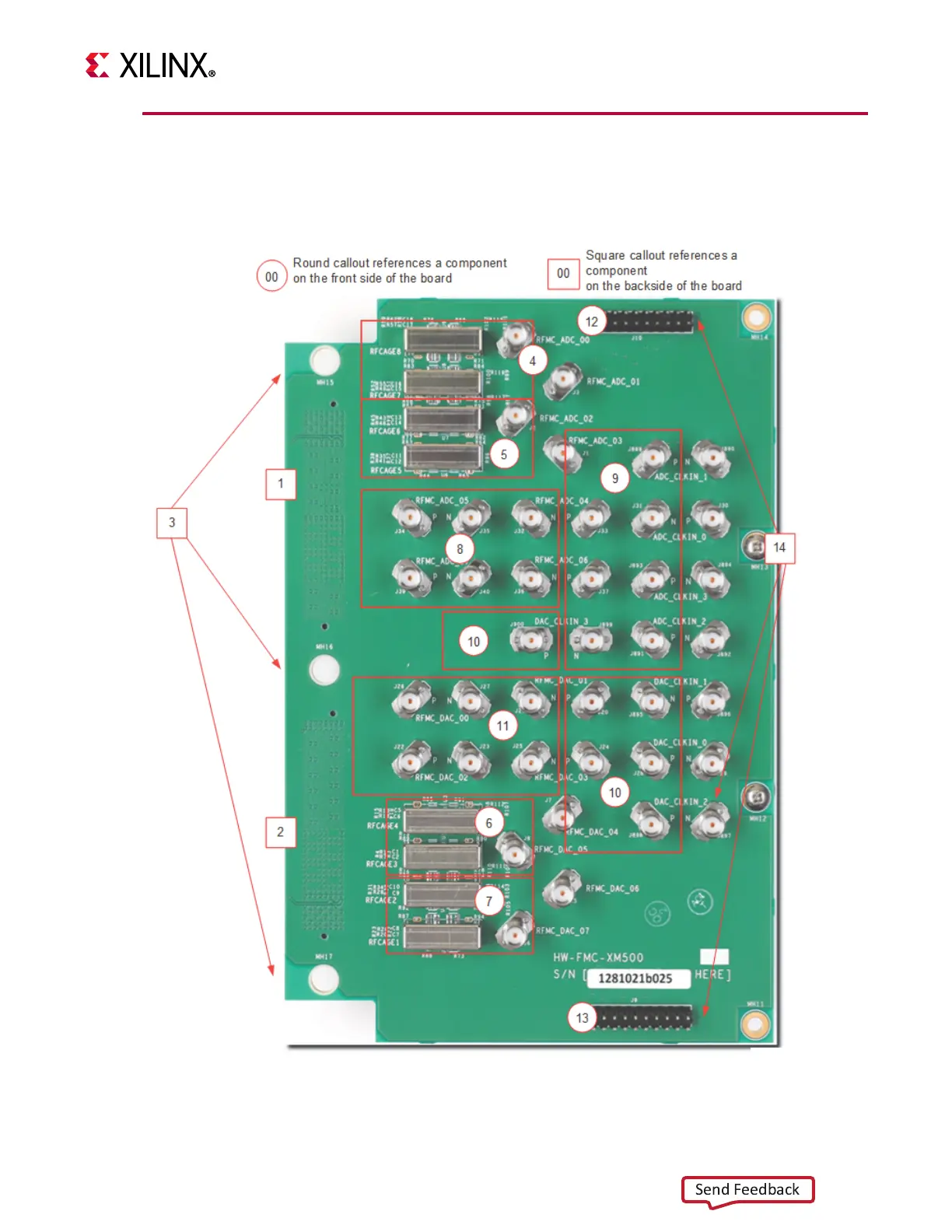

Figure D-2: XM500 Card Components
X21081-062118
