Xilinx ZCU111 User Manual

ZCU111 Board User Guide 38
UG1271 (v1.1) August 6, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions

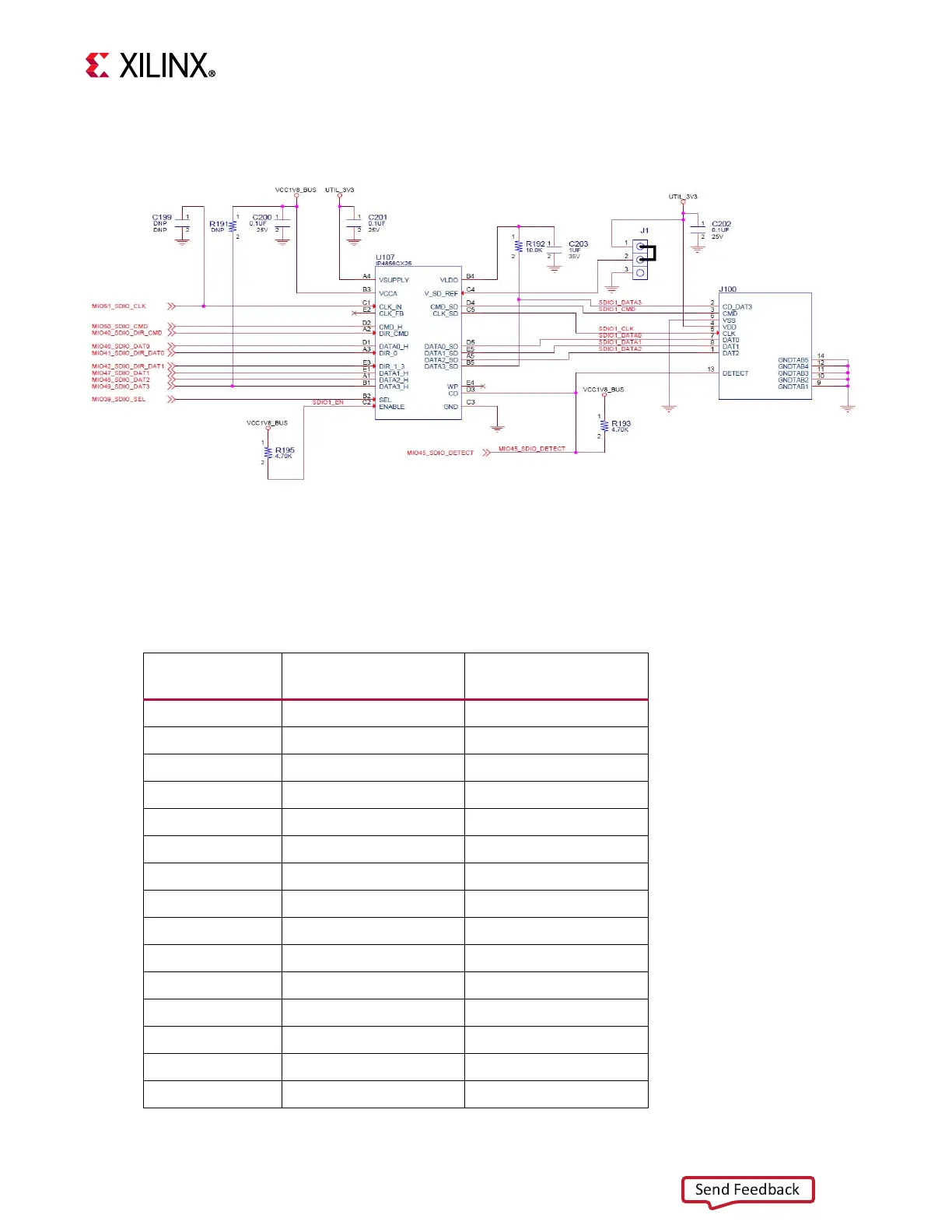

Figure 3-7 shows the connections of the SD card interface on the ZCU111 board.
The NXP SD3.0 level shifter is mounted on an Aries adapter board that has the pin mapping
shown in Tab le 3- 12.
X-Ref Target - Figure 3-7
Figure 3-7: SD Card Interface
X20483-062118
Table 3-12: IP4856CX25 U107 Adapter Pin-Out
Aires Adapter Pin
Number
IP4856CX25 U107 Pin
Number
IP4856CX25 U107 Pin
Name
1 C1 CLK_IN
2 C3 GND
3 D3 CD
4 D2 CMD_H
5 E2 CLK_FB
6 E4 WP
7 B4 VLDO
8 C4 VSD_REF
9 A3 DIR_0
10 A4 VSUPPLY
11 B3 VCCA
12 A2 DIR_CMD
13 D1 DATA0_H
14 B2 SEL
15 B1 DATA3_H
Send Feedback
