Xinuo XF-1069GF

To Next Page

To Previous Page

GPSChartPlotter&EchoSounder

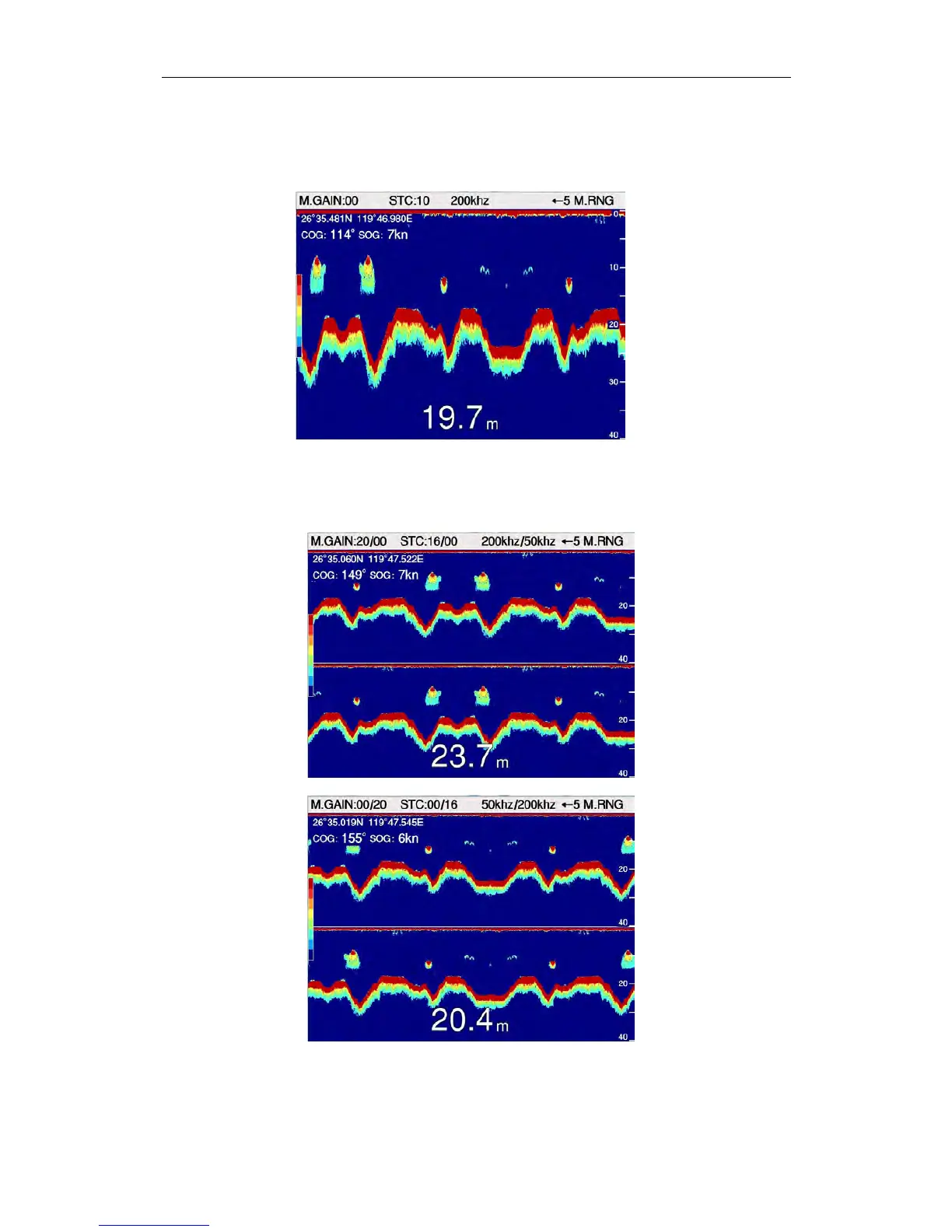

1】Singlefrequency

Press〖Center/Frequency〗toswitch50khzor100khzundersingefrequencyimage.

2】Doublefrequency

Press〖 Center/Frequency〗 toadjustimagepositionof50khzand100khzundersingedual

image.

3】Frequency/Zoom

Press〖Center/Frequency〗toswitch50khzor100khzunderthisimage.Normalzoominimage

willbedisplayedonupinhorizontalmodeorleftinverticalmode

Main Page

Table of Contents2
Contents2
Introduction8
- Appearance of the Product8
- Packing List8
- Installation of GPS Antenna8
- Getting Started8
- Keyboard Instruction9
System Overview13
- Main Page13
- Page Scene14
Chart Operation15
- Move Chart15
- Zoom IN/OUT the Chart15
- Backlight Adjustment15
- Change the Chart Display Mode15
- Rotate Chart Page16
Main Menu Operation16
Track Operation16
- Track Switch & Color16
- Track Record & Parameters16
- Delete Track16
Waypoint Operation17
- Add Waypoint17
- Modify Waypoint17
- Delete Waypoint17
- Call Waypoint18
Marker Operation18
- Add Marker18
- Modify Marker18
- Delete Marker19
Beacon Operation19
- Add Beacon19
- Modify Beacon19
- Delete Beacon20
- Move Beacon20
Route Operation20
- Add Route20
- Modify Route20
- Delete Route21
- Call Route21
- Select Waypoint of the Route21
Accessory21
- Tide21
- View Chart21
- Calendar21
- Distance Measure22
Mob22
Draw Line22
- Add Draw Line on the Chart22
- Draw Line Point Operation23
- Draw Line List23
Notes of Navigation23
- Waypoint Navigation23
- Route Navigation23
Typewriting24
Param. Settings24
- System Settings24
- Alarm Settings25
- Display Switch Settings25
- Display & Sound Settings25
AIS Operation28
- AIS Vessel Information28
- AIS Display Settings29
- Enhanced-A Mode29
- Safety Message29
- Outbox29
- Inbox29
- New Message29
- Drafts29
- Address30
- AIS Static Parameters30
Function Introduction32
- Image Split32
- Image Speed32
- Image Partition Ratio33
- Scene33
- Echo Color Tone36
- Decoloration37
- Depth Unit37
- VRM Display37
- Depth Alarm38
- Fish Alarm39
- Gain40
- Range40
- Shift41
- Interference Reduction41
- White Line42
- Background Color42
- Echo Signal Level42
- Noise Reduction43
- Auto Gain Correction43
- A-Scope43
- Sonic Speed Set44
- Draft Set44
- Fish Finder Simulation45
Appendix 1: XF-1069GF Installation Overall Dimensions46
Appendix 2: XF-1069GF Wiring Diagram47
