ForeSite SS Hardware
25
Figure 5
• High Resoluon sensor pad systems require X3 SPKs to be connected
to an X3 Pro Plaorm.

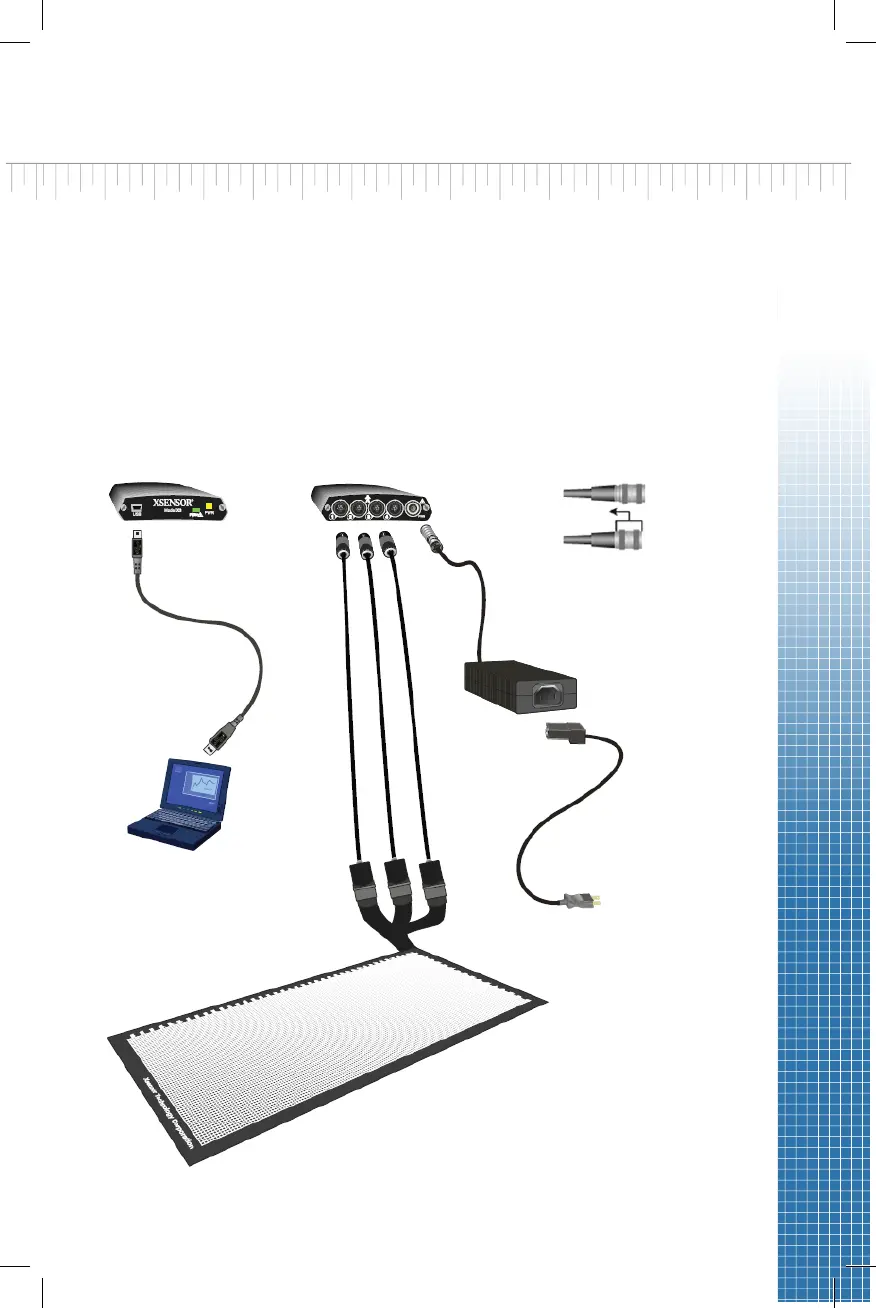

• The high resoluon sensor pad system is connected as shown in
Figure 5. Turn on the X3 Pro Plaorm by pressing the power buon
unl the LED turns on. The LED on the sensor pack should also turn
on at the same me
NOTE: To remove the
Sensor Port Cable from
its receptacle pull back
on the collar as shown.
