ADPROPROE by Xtralis Installation Guide
27386_05 15
CAUTION:
To avoid damage to the IP module and cabling as well as to the detector housing, the
installation instructions below must be followed.

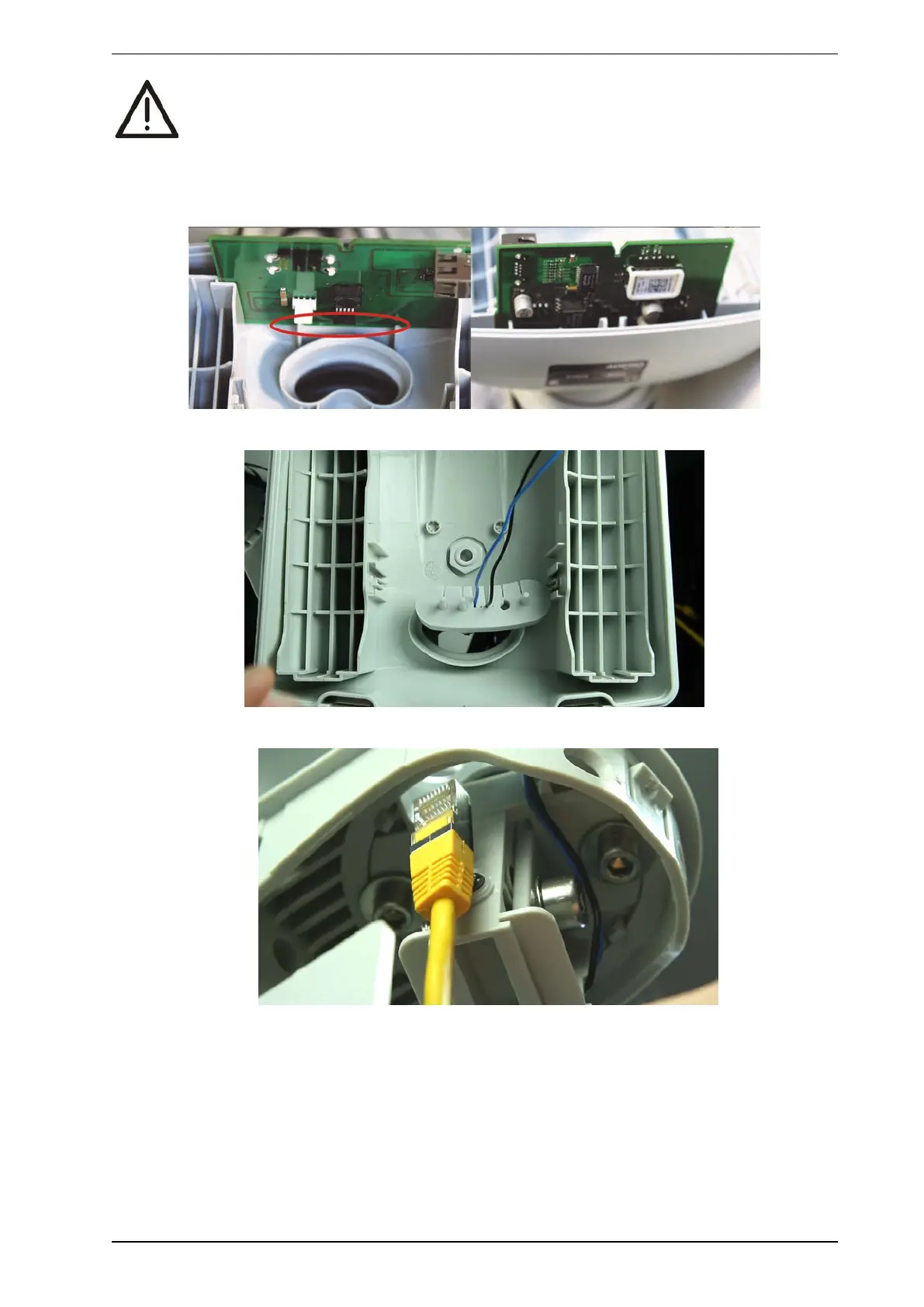

Insert the IP module carefully as shown and push it in with moderate strength, until it locks into the slot as
shown. See the ADPRO PRO E PIR System Setup Guide, document no. (26571), PRO E-IPM (IP
Module) section for more details.
5. Take out the cable seal so that all cables can be fed without problem through the channel.
6. Feed all cables from underneath through the channel into the detector housing.
7. Check the number and diameter of all cables used.
8. For cables of larger diameters, remove material from the patented cable seal with a knife at the spots
provided if necessary.
