22 27386_05

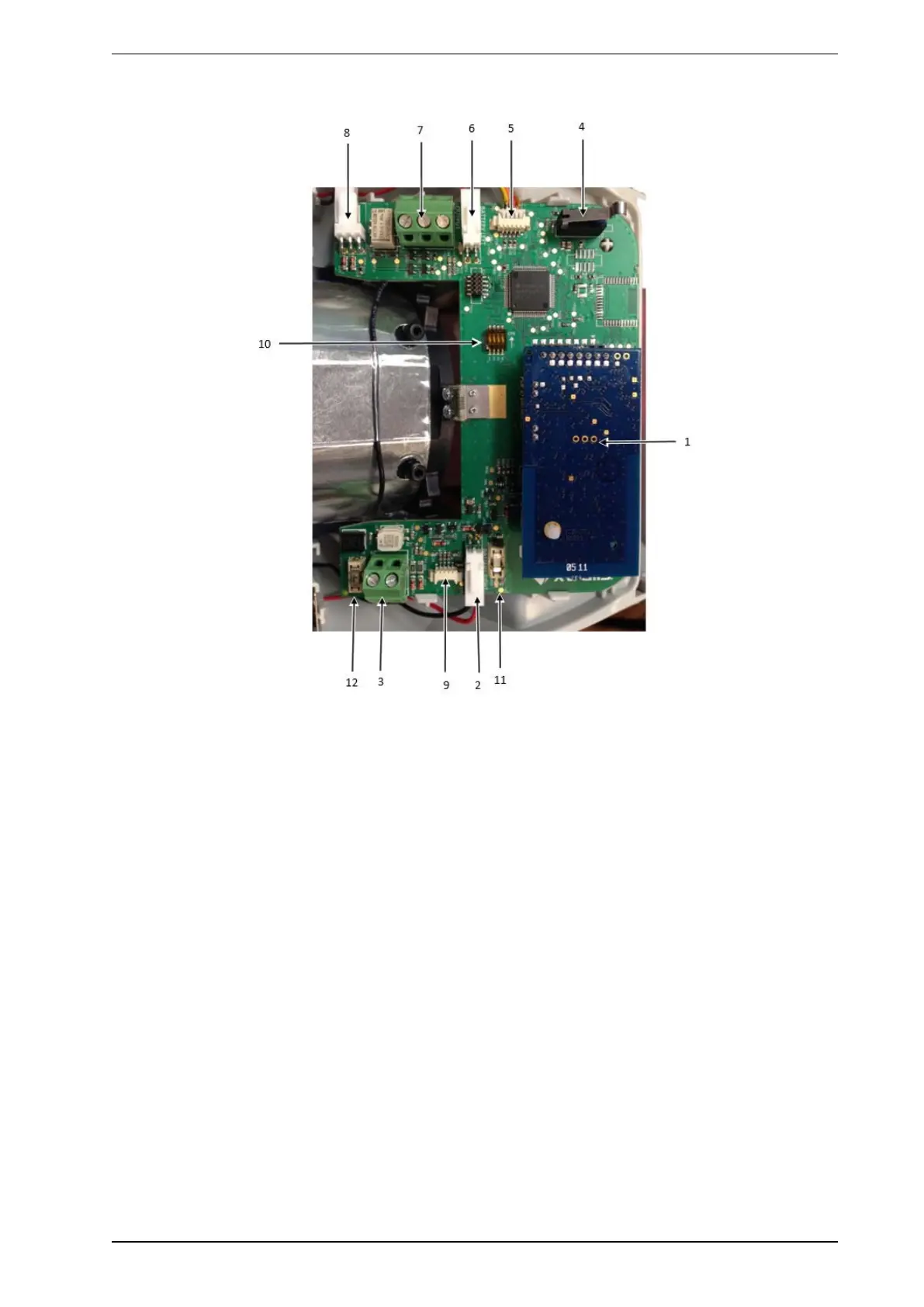

2.9.1 Overview PRO E-RF PCB
1 Inovonics wireless transmitter module, plugged in PCB
2 Right battery pack connector
3 External power source terminal
4 Cover tamper switch
5 RF Interface module connector (power/bus)
6 Left battery pack connector
7 Alarm relay terminal (NO/C/NC)
8 Bracket tamper switch connector
9 Power module connector
10 DIP switches
11 Battery power fuse
12 External power source fuse
