XVision pro-hd - Motion Detection

XC Camera Setup and OSD Guide
 Gamma: CURVE_1_6，CURVE_1_8,CURVE_2_0,CURVE_2_2 totally four modes,
default is CURVE_2_0
 Anti-Flicker: Auto, 50hz, 60hz, the default is Auto
After all parameter settings are completed, click “Save” these settings will take
immediate effect.

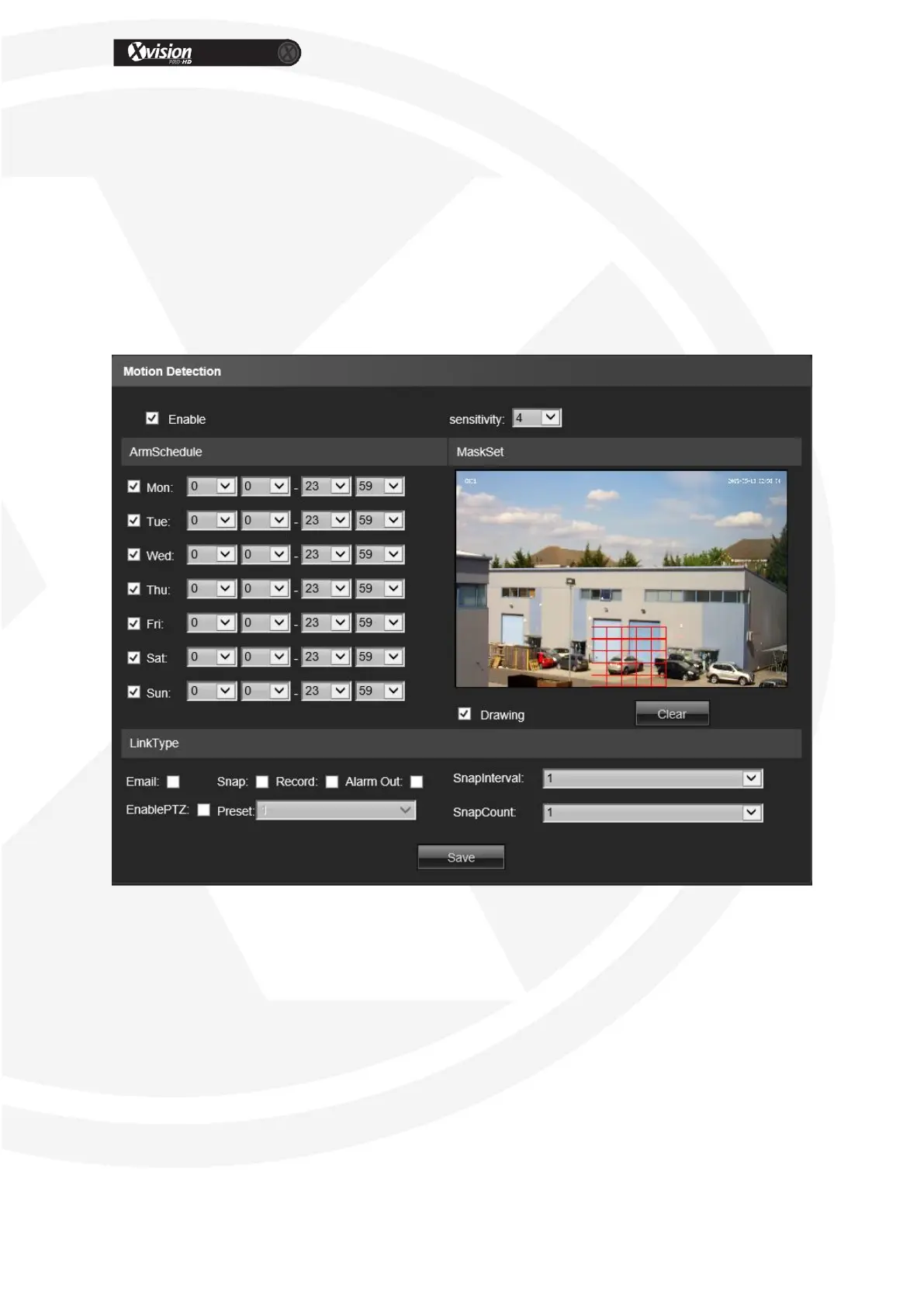

Motion Detection
 Enable: Select to enable the motion detection function.
 Alarm Schedule: Set the alarm schedule from Monday to Sunday.
 Drawing: Click Drawing, then set the motion area.
 Clear: Click Clear to clear the current motion areas.
 Sensitivity: The higher of the sensitivity, the motion will be detected.
 Email: Send Email to appointed mailbox when alarm triggered.
 Snap: Snapshot and install the picture in the HDD when alarm triggered.
 Record: Record in the HDD when alarm triggered.
 Alarm Output: Connect the alarm output port, alarm triggered the embedded relay
switch to call alarm output.
 Enable PTZ: Alarm input to link the PTZ motion.
