XC Camera Setup and OSD Guide
 Email: Click Email, then the IPC will send an Email to the appointed mailbox when an
alarm is triggered
 Snap: Click Snap, snapshot the current image picture when alarm triggered
 Record: Click, video will be recorded automatically when alarm triggered
 Alarm Output: Connect the alarm output port, when triggered the alarm out will
trigger
 Snap count: Set the snapshot count in every second
 Snap Interval: Set the snapshot interval time
 Enable PTZ: Click Enable PTZ, it will linkage PTZ operation when alarm input
 Preset: set the linkage preset point
After all parameter settings are completed, click “Save” these settings will take
immediate effect.

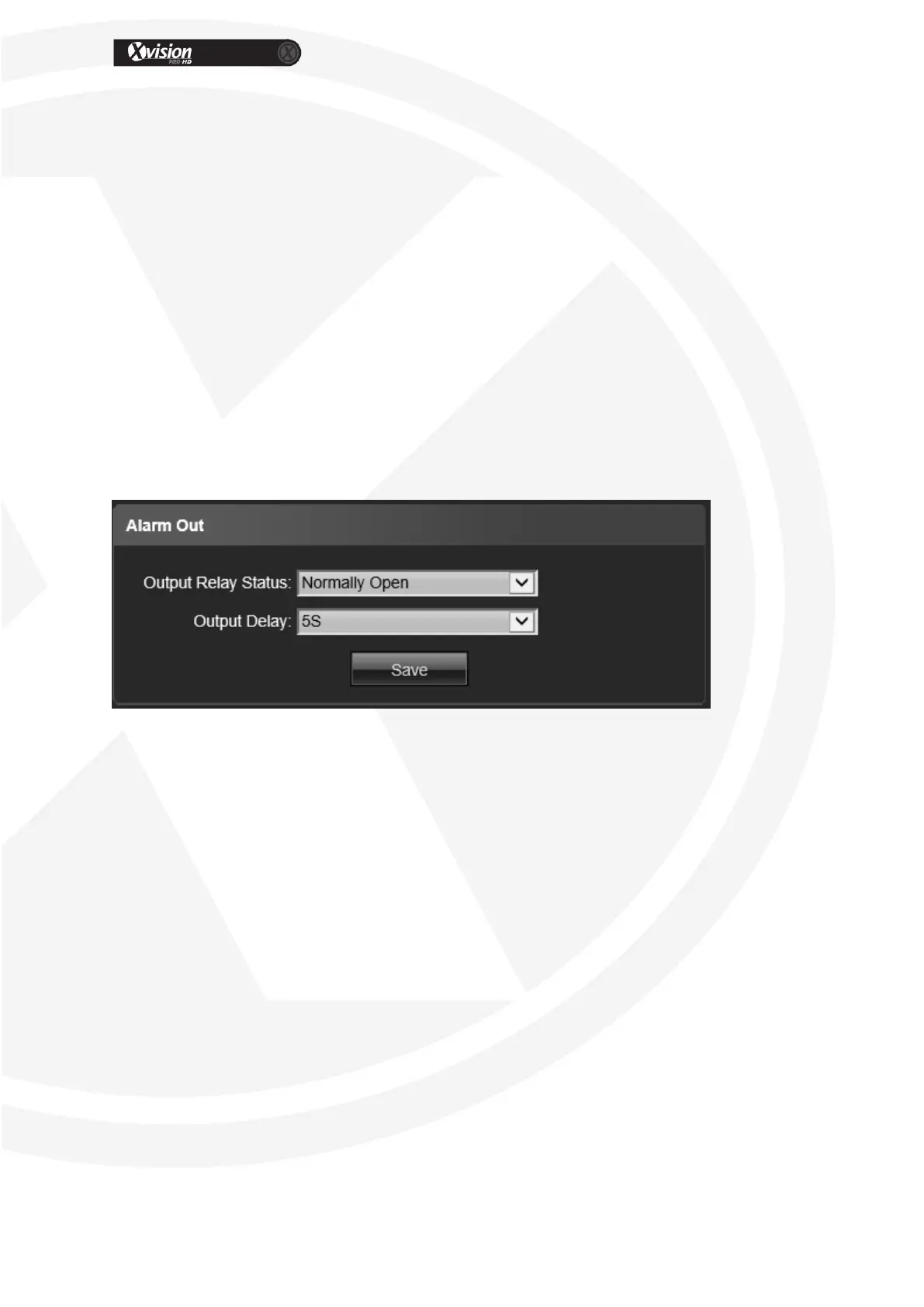

Alarm Output
 Output Relay Status: Normally Open/ Normally Close selectable
 Output Delay: Select the alarm output time( Alarm delay output when alarm
triggered)
After all parameter settings are completed, click “Save” these settings will take
immediate effect.
