Xylem Aquavar IPC - Multi-Pump Control Configuration

PAGE 17
Aquavar IPC Start-Up Genie
Xylem

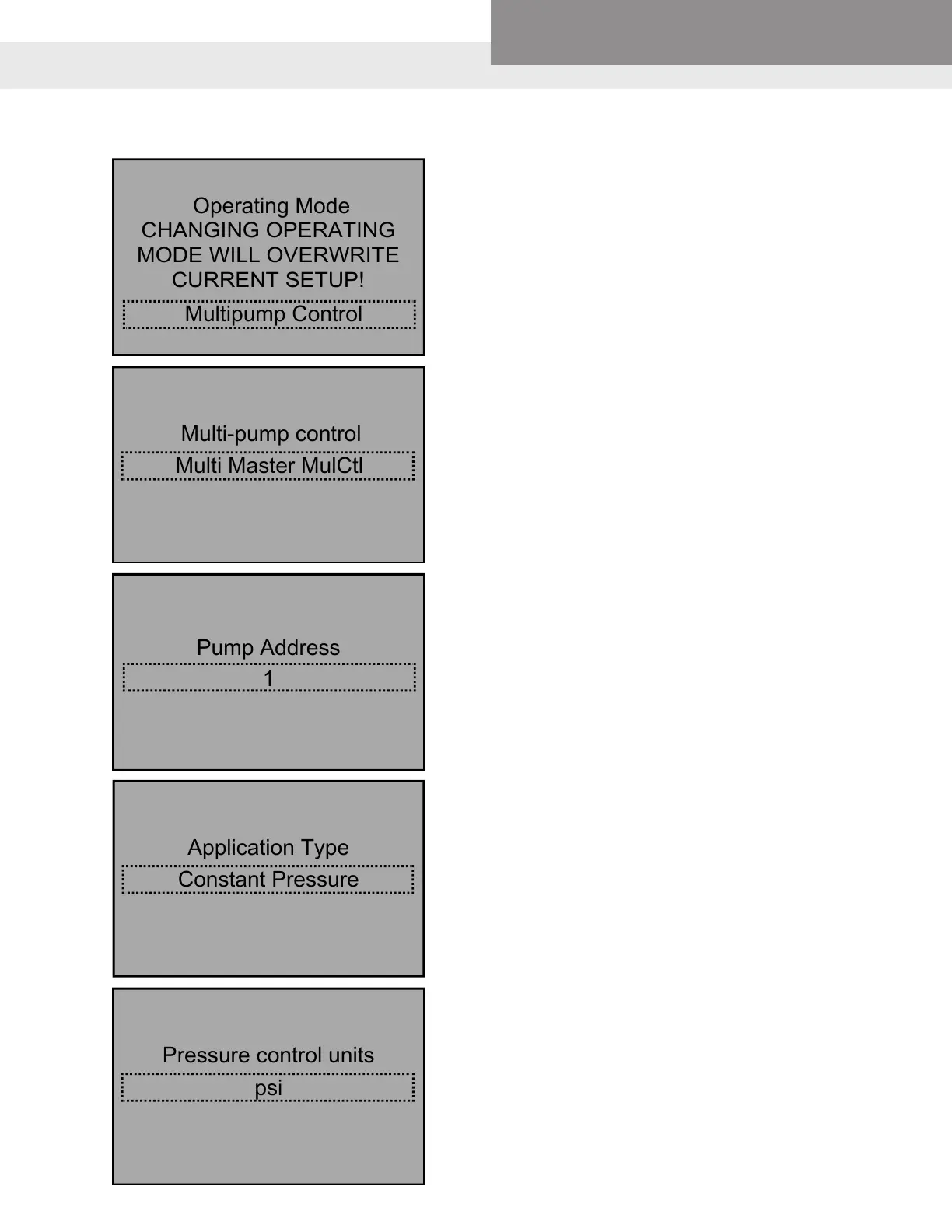

Select Multipump control
Select Multi Master Multi Control
Note: Other multi pump congurations are
described in the IOM
Select Pump Address for each pump
For each, use a unique address: 1, 2, 3, or 4
Select Constant Pressure for Application Type
Select psi for Pressure control units
Pressure control units
psi
Application Type
Constant Pressure
CHANGING OPERATING
MODE WILL OVERWRITE
CURRENT SETUP!
Operating Mode
Multipump Control
Multi-pump control
Multi Master MulCtl
Pump Address
1
6.2 MULTI-PUMP PROGRAMMING
