Aquavar IPC Start-Up Genie
Xylem

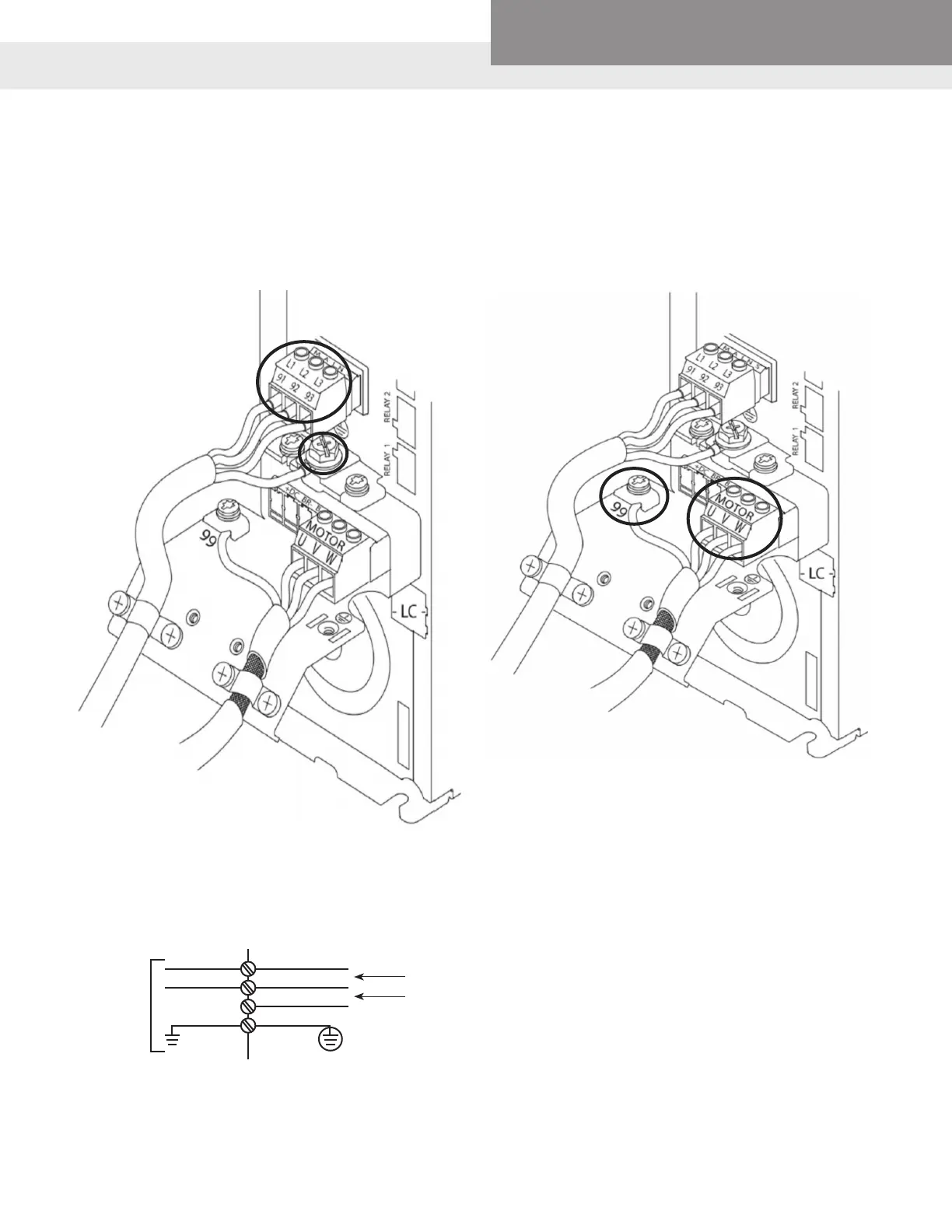

INPUT (MAINS) WIRING 3-PHASE:
Connect 3–phase AC input power wiring to terminals
L1, L2, L3 and ground the cable.
InputTerminals
OUTPUT WIRING TO MOTORS:
Connect output motor wires to terminal block labeled
U, V, W and ground the cable.
Ground
1 Phase
Power
Input
91 (L1)
92 (L2)
93 (L3)
95 PE
SINGLE PHASE INPUT DRIVES:
Connect single phase power wiring to L1, L2 and ground the cable.
Check IOM for specic frame size considerations
3. INPUT AND MOTOR WIRING
