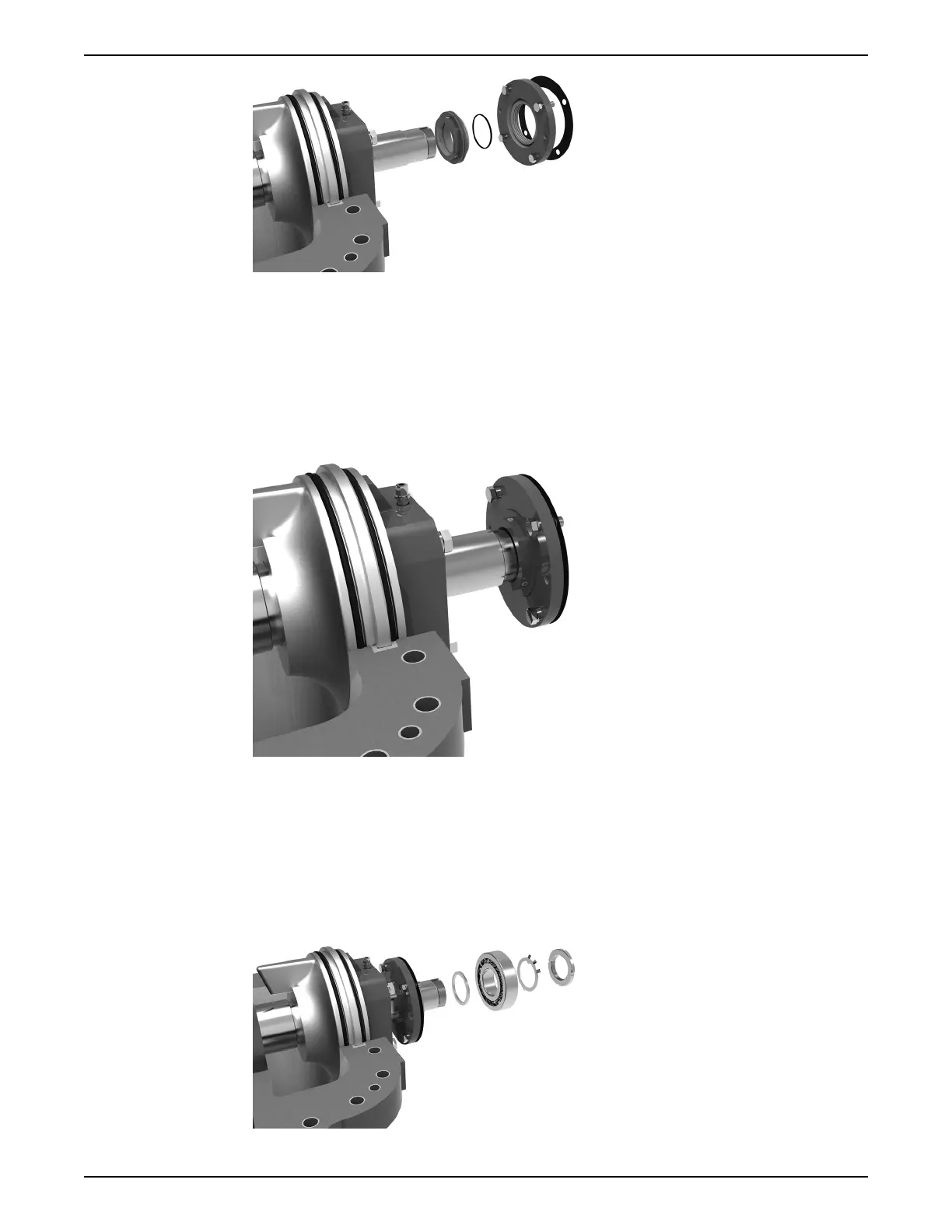

2. Insert the bearing seal ring into the bearing gland.
3. Place bearing gland gasket on the gland face opposite of the bearing seal ring.
4. Insert screws and washers into the bearing gland such that the heads of the screws sit
opposite of the gasket.
5. Place bearing gland assembly onto shaft where the bearing seal ring faces the
impeller.
Note: Ensure the smaller diameter holes of the bearing gland are oriented horizontally
to orient the grease and drainage ports of the gland correctly.
6. Place the bearing shoulder ring against the outboard end shaft step.
7. Heat the ball bearing to expand the bore.
8. Using insulated gloves, install the bearing onto the shaft against the shoulder ring.
Allow the bearing to cool. Coat the exposed side of the bearing with two to three
ounces (60 to 85 gm) of grease.
9. Slide tab washer adjacent to bearing.
10.Thread the locknut onto the shaft adjacent to the tab washer. Secure the locknut by
bending the washer tabs over the grooves on the locknut.
6 Maintenance
80 e-XC INSTRUCTION MANUAL
