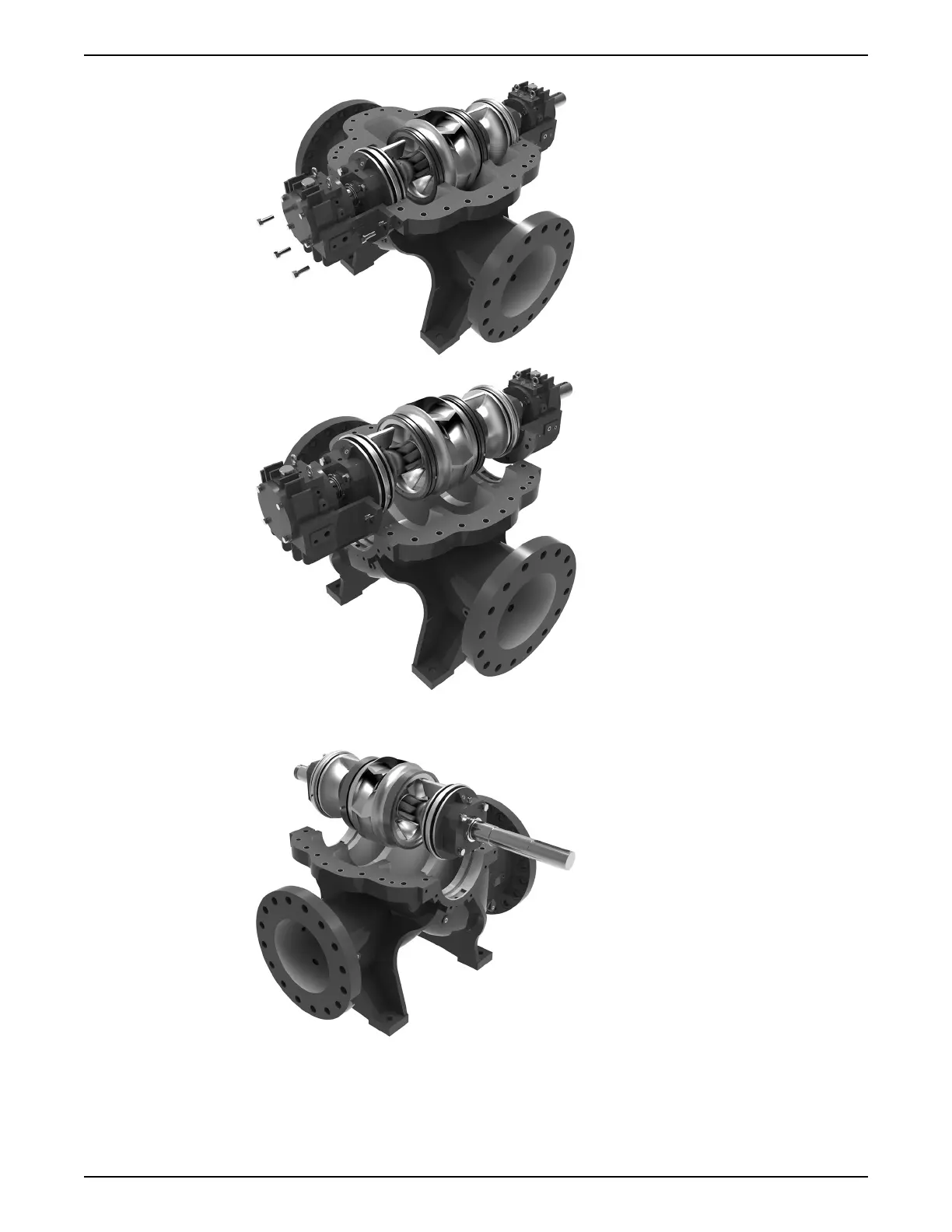

9. Lift the rotating assembly and install it within the lower casing. Ensure all pins rest
within their respective grooves.
10.Continue the assembly process by following the instructions outlined in Bearing and
bearing housing assembly on page 79.
Bearing and bearing housing assembly
1. Prepare the bearing seal ring for installation. Lubricate O-ring and install into the
groove located along the inner diameter of the bearing seal ring.
6 Maintenance
e-XC INSTRUCTION MANUAL 79
