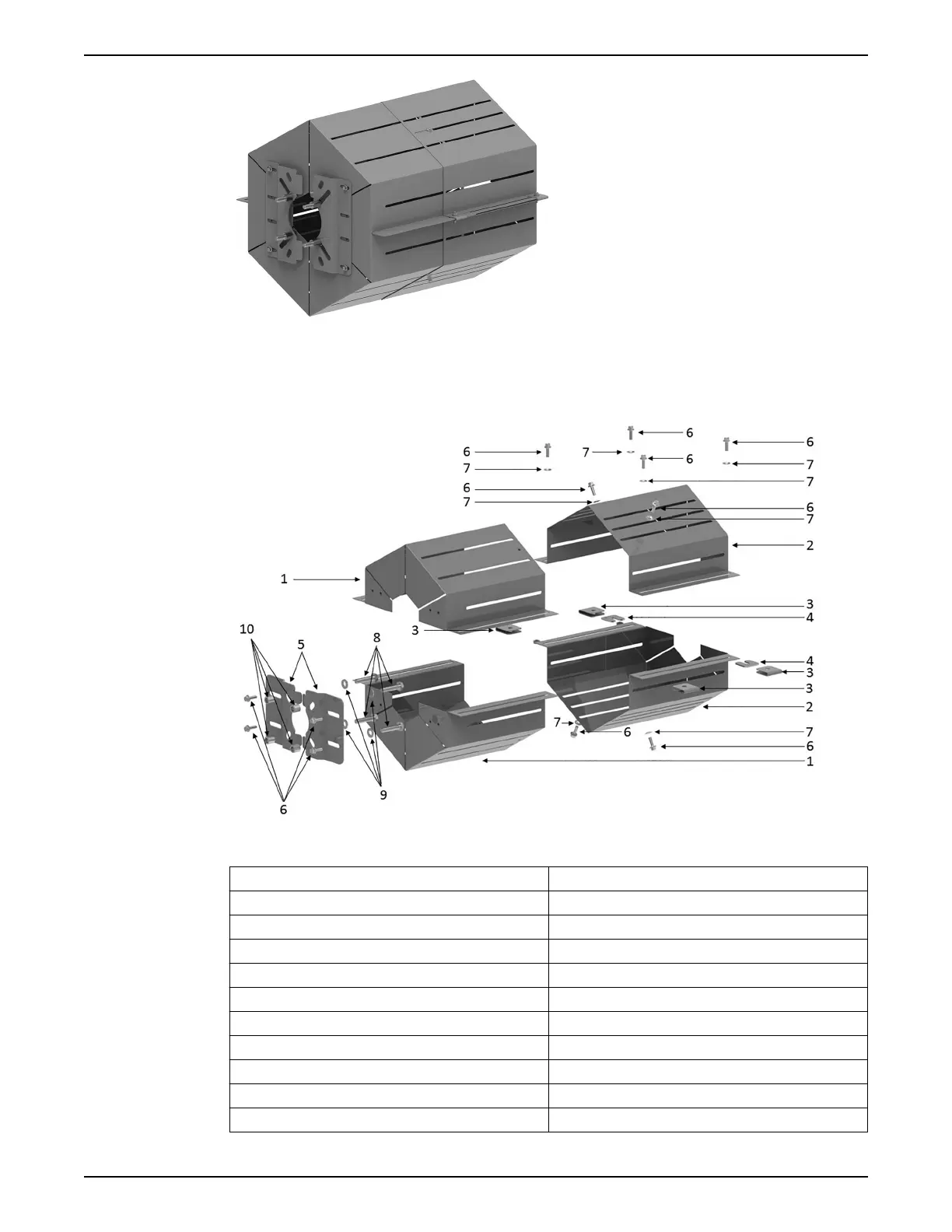

Figure 37: Fully assembled coupling guard — large bracket
Note: Assembly instructions for the coupling guard assembly are the same regardless of
which size mounting bracket is used.
Figure 38: Coupling guard exploded view
Legend Part Name
1 Coupler Guard Assembly Inner
2 Coupler Guard Assembly Outer
3 Clip
4 Square Spacer
5 Mounting Bracket
6 Hex Bolt
7 Self-Retaining Washer
8 Bearing Gland Bolt
9 Washer
10 Threadless Spacer
6 Maintenance
96 e-XC INSTRUCTION MANUAL
