Xylem hydrovar - Motor Thermal Protection

16

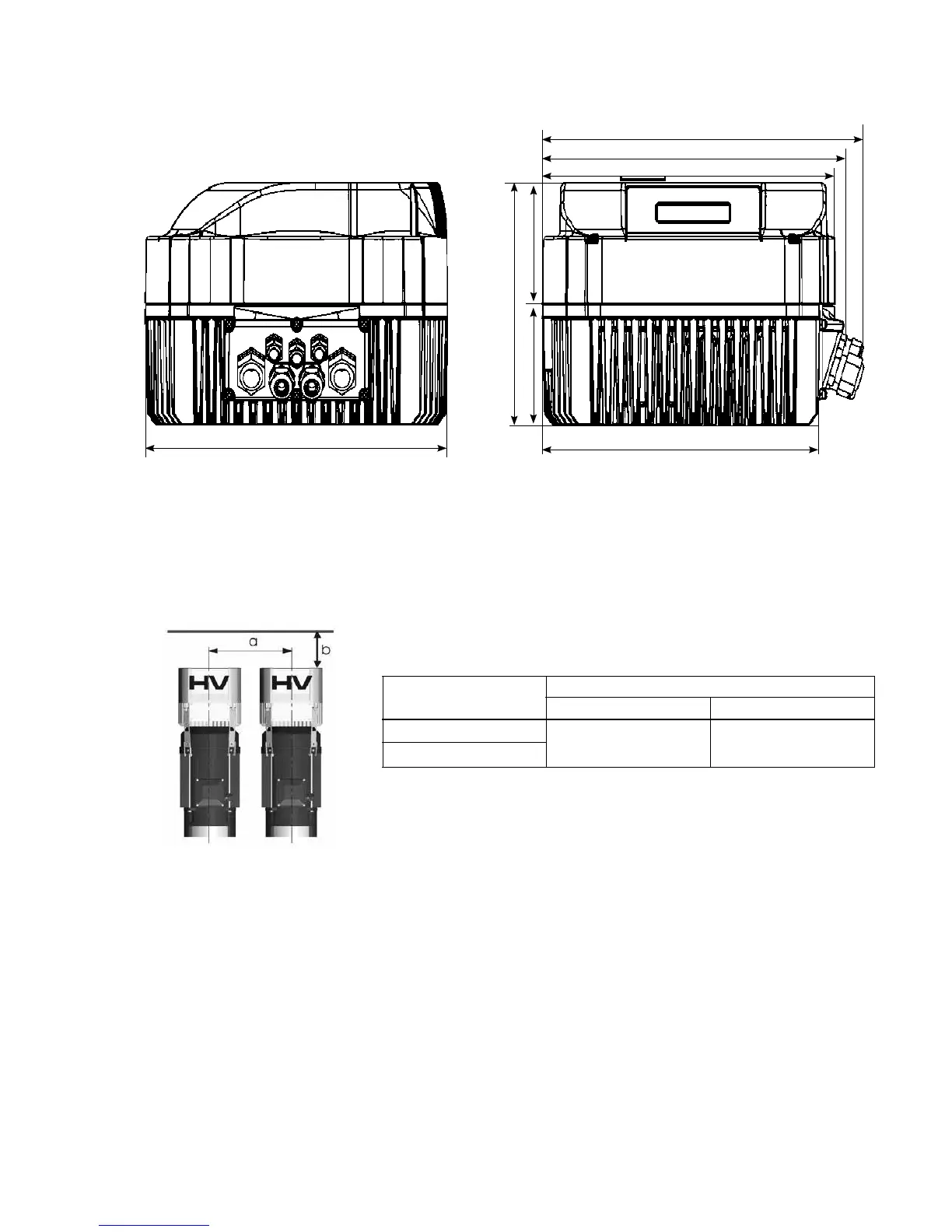

HVM3407, HVM3410, HVM3415
All dimensions in inches! Drawings are not to scale!
Dimensions are nominal
Type
Weight [lbs]
Basic Master / Single
7.5, 10, 15 HP
16.9 17.8
3 Ph
a … minimum centre-distance between HYDROVARs 17"
b … minimum header space for maintenance 12"
9.4
10.2
10.9
3.35
3.35
6.7
9.9
10.2
DIMENSIONS AND WEIGHTS
