65
S
0918
0918 OFFSET Y2
Desired value
0.00 PSI
Possible settings: 0 – standardization of the sensor
Desired value; designation of the y – coordinate as absolute value.

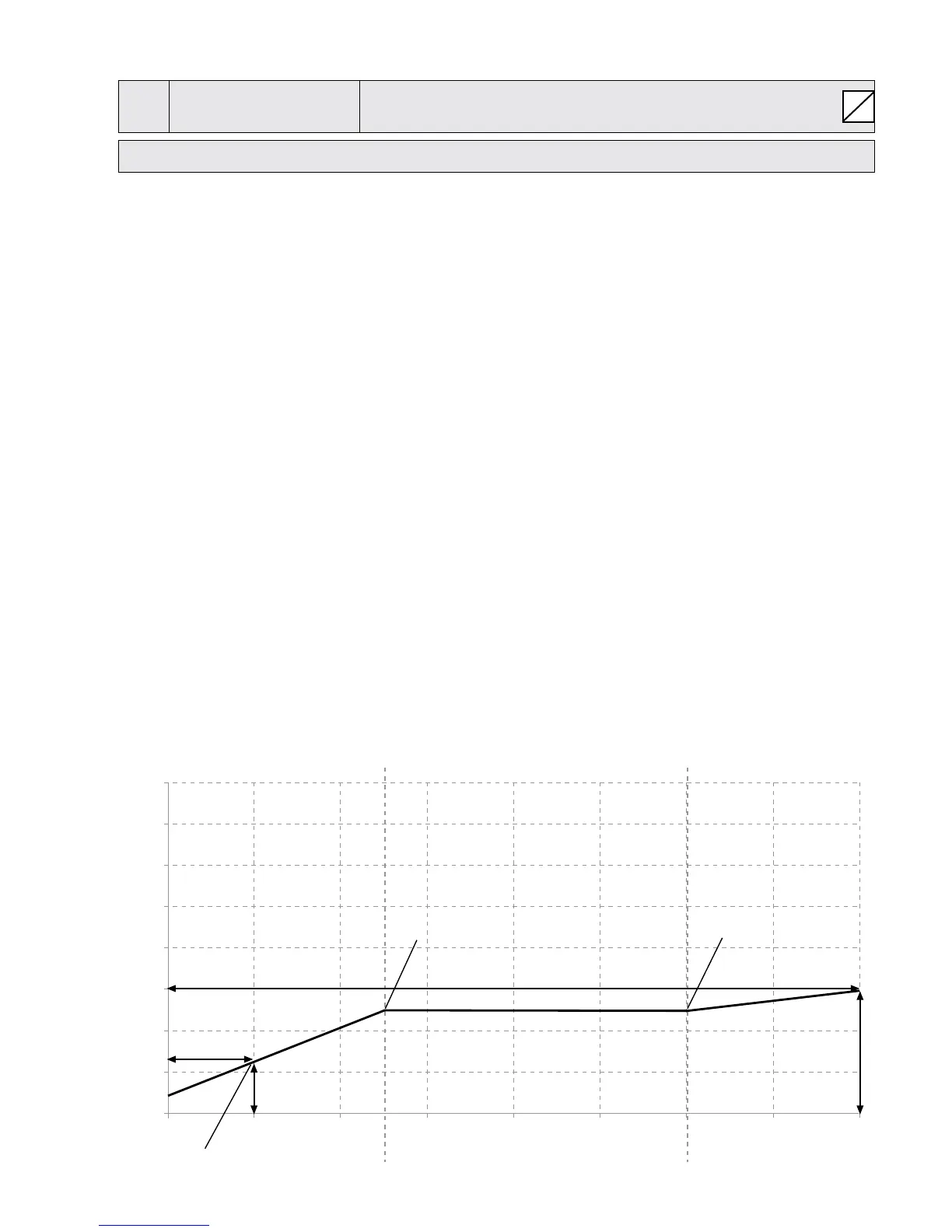

Example for using the Offset function:
Constant pressure system with required value of 70 PSI.
Additionally a ow sensor is connected to the Offset input.
Parameter [907] - Offset Range = 300 (maximum range of ow sensor = 70 GPM)
System requirement 1:
5 bar constant pressure while the ow rate is between 20 GPM and 50 GPM.
Below 20 GPM the pressure should be decreased to maximum 36 PSI at a ow rate of 8 GPM.
Settings:
Parameter [0910] - Level 1 = 50 = 20 GPM (rst limit where the offset function is active)
Parameter [0912] - Offset X1 = 20 = 8 GPM (xed point according the requirements)
Parameter [0913] - Offset Y1 = 2.5 = 36 PSI (max. allowed pressure at this ow rate)
System requirement 2:
70 PSI constant pressure while the ow rate is between 20 GPM and 50 GPM.
Above the 50 GPM the pressure should be increased with the limitation to have maximum 87 PSI at maxi-
mum ow rate of 16m³/h.
Settings:
Parameter [915] - Level 2 = 120 = 50 GPM (second limit where the offset function is active)
Parameter [917] - Offset X2 = 160 = 16m³/h (xed point according the requirements)
Parameter [918] - Offset Y2 = 6 = 87 PSI (required pressure at this ow rate)
PROGRAMMING
2 m
3
/h
5 m
3
/h 12 m
3
/h
OFFSET X2
OFFSET X1
OFFSET Y1
OFFSET Y2
Level 1 Level 2
Offset
020406080 100 120 140 160
0
2
4
6
8
10
12
14
16
Required Value
Required
