Yale Assure Lock 2 Touch User Manual

12
P/N YRD450-KF-F Rev A
1c

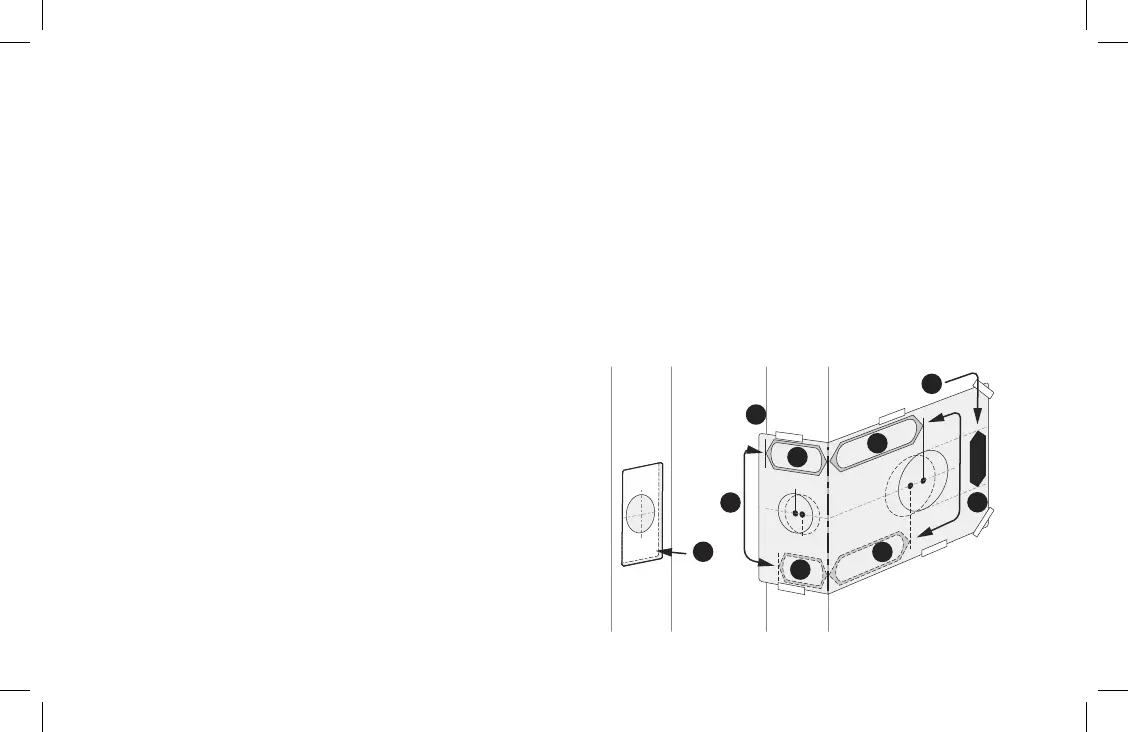

Make or Adjust Holes
Skip this step if you have confirmed that the existing holes are compatible (step 1b).
1. Tear off the Marking Template (pages 78), and choose the
preferred face bore diameter (2- 1/8” or 11/2”) on either side
of the template.
2. Tape the Marking Template onto the door as shown.
3. Check the door thickness. It should match either the shape
with solid outlines (13/4”), or the one with dashed outlines
(13/8”).
3a. Use solid lines as a template for 13/4” door thickness.
3b. Use dashed lines for 13/8” door thickness.
4. Choose your preferred backset. It should match either the
shape with solid outlines (23/4”), or the one with dashed
outlines (23/8”).
4a. Use solid lines as a template for 23/4” backset.
4b. Use dashed lines for 23/8” backset.
5. Drill holes in your door where marked.
6. On the door frame, align the center of the strike plate with the
center of the edge bore. Trace the strike plate, then chisel to the
depth of the strike plate so it sits flush with your door frame. Drill
the 1” diameter strike pocket with a minimum depth of 1”.
6
Frame Door
1
2
3a
4
3b
4a
4b
3

Yale Assure Lock 2 Touch Specifications

General

Keypad Type	Touchscreen
Power Source	4 AA Batteries
Backlit Keypad	Yes
Door Thickness	1-3/8" to 2-1/4"
Connectivity	Bluetooth
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Auto-Lock	Yes
Voice Assistance	Amazon Alexa, Google Assistant
Battery Life	Up to 1 year
Operating Temperature	-40°F to 140°F (-40°C to 60°C)
Remote Access	Yes
Guest Access	Yes
Security	BHMA Grade 2 Certified
Finish	Satin Nickel
