Yale Assure Lock 2 Touch User Manual

5
P/N YRD450-KF-F Rev A

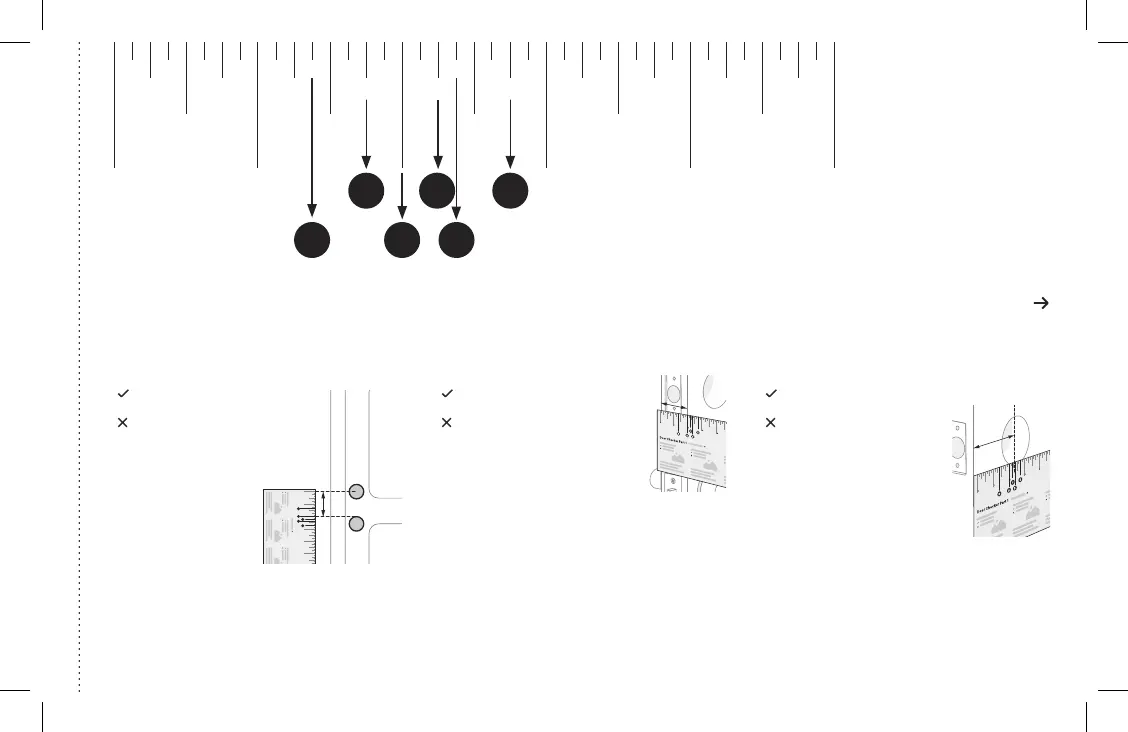

Door Checker Part 1
Measure Clearance Measure Door Thickness Measure Backset
A. 2” minimum clearance between top
of the door knob and center of deadbolt
hole.
B. 13/8” door thickness; use teal
(shortest) screws.
C. 13/8” - 13/4” door thickness;
use black (medium) screws.
D. 13/4” - 21/4” door thickness;
use silver (longest) screws.
E. 23/8” backset, use out of box latch
setting.
F. 23/4” backset, adjust latch setting
(Step 2, point 1 of this manual).
Greater than A B, C or D Equals E or F
Less than A
Less than B or
greater than D
Doesn’t equal E or F
(Your door is not a match)
(Your door is not a match)
(Your door is not a match)
10 2 3 4 5
6
Door Checker Part 1
v
B A D
C E
v
v
See Reverse for Part 2
1/8 1/8 1/8 1/8 1/83/8 3/8 3/8 3/8 3/85/8 5/8 5/8 5/8 5/87/8 7/8 7/8 7/8 7/8
1/4 1/4 1/4 1/4 1/4
1/2
10 2 3 4 5
1/2 1/2 1/2 1/2
3/4 3/4 3/4 3/4 3/4
B A E
DC F
Tear Along the Dotted Line

Yale Assure Lock 2 Touch Specifications

General

Keypad Type	Touchscreen
Power Source	4 AA Batteries
Backlit Keypad	Yes
Door Thickness	1-3/8" to 2-1/4"
Connectivity	Bluetooth
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Auto-Lock	Yes
Voice Assistance	Amazon Alexa, Google Assistant
Battery Life	Up to 1 year
Operating Temperature	-40°F to 140°F (-40°C to 60°C)
Remote Access	Yes
Guest Access	Yes
Security	BHMA Grade 2 Certified
Finish	Satin Nickel
