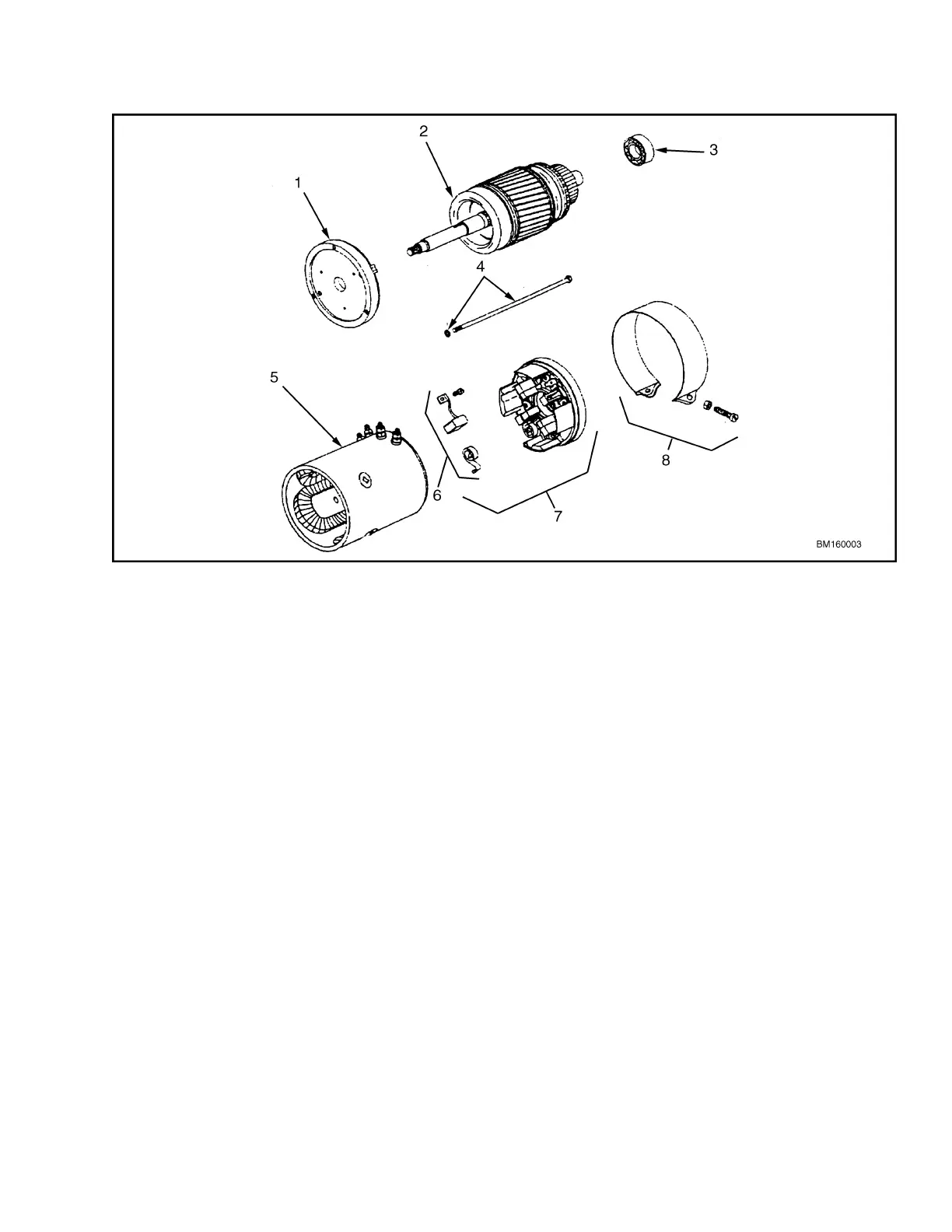

1. END COVER
2. ARMATURE
3. BEARING
4. MOUNTING STUD
5. HOUSING AND WINDINGS
6. BRUSH AND SPRING
7. COMMUTATOR END CAP
8. COVER BAND
Figure 17. Disassembled Traction Motor
2200 YRM 1007 Traction Motor
27
