1. J3 JUMPER 2. J4 JUMPER
Figure 28. Circuit Board
4. For Mode 1, remove the existing jumper from J3.
For Mode 3, remove the existing jumper from J3
and install on J4.
5. Replace the cover on the charger and install the
mounting screws.
6. Install the charger in the battery tray.
NOTE: Store the jumper in a safe place in case of fu-
ture battery type retrofits.
CHARGER MODE/BATTERY TYPE
SELECTION (DPI GEN III MODELS)
CAUTION
DO NOT use batteries types that are not approved
for the charger or improper mode settings. Dam-
age to the batteries or charger may occur if the
mode setting is not correct for the type of batter-
ies being used. If the battery manufacturer of the
battery you are using is not listed, contact Resi-
dent Service Engineering through the Contact
Management System.
NOTE: Gen II and Gen III version DPI chargers have
different procedures for changing charger modes for
charging different battery types. Newer versions of
DPI Accusense Gen III use dip switches to change
charge modes, while older version use four jumper
ports. Use the proper procedure for your lift truck. See
Charger Mode/Battery Type Selection (DPI Gen II
Models) or Charger Mode/Battery Type Selection
(DPI Gen III Models).
NOTE: On older versions of the charger, mode set-
tings can be checked by connecting the battery
charger to a 120V AC power source and watching the
LED display. The LED display will flash once if the
mode is set to Mode 1, twice if set to Mode 2, three
times if set to Mode 3, and four times if the charger is
set to Mode 4. If the LEDs do not flash when initially
connected to power, refer to Troubleshooting (DPI
Chargers) in this section.
The battery charger has four mode settings. The
mode setting is determined by the type batteries be-
ing used in the battery pack. See Figure 29 and Ta-
ble 4.

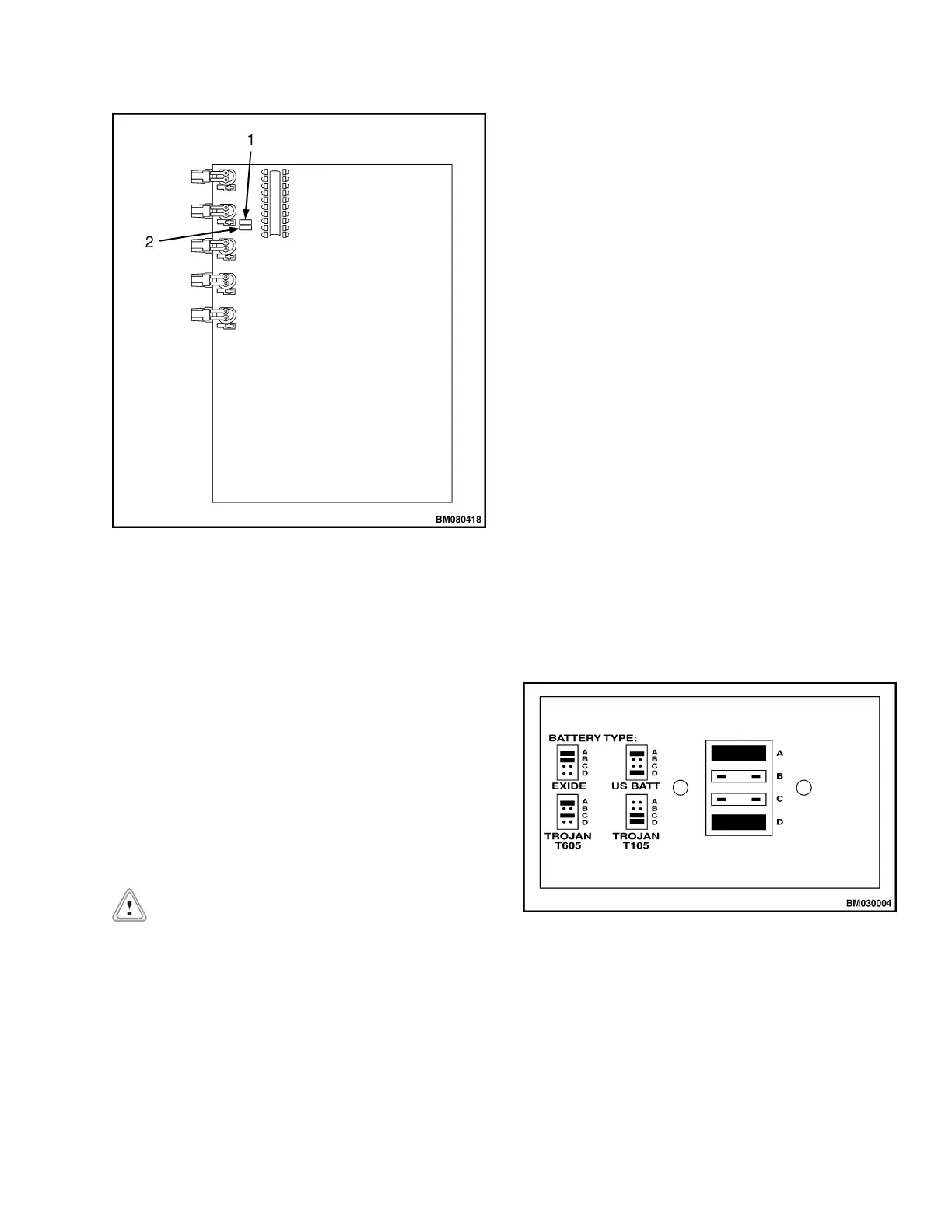

Figure 29. Jumper Ports
2200 YRM 1007
