4000 YRM 1008 Lower Link
7. Test the operation of the motorized hand truck be-
fore returning the truck to service.
Lower Link
REMOVE
WARNING
Batteries are heavy and can cause a personal injury.
Use care to avoid injury. Do NOT put hands, arms,
feet, and/or legs between the battery and a solid ob-
ject. Make sure the capacity of the lifting device and
spreader bar is greater than the weight of the bat-
tery. The weight of the battery is normally shown
on the battery case. The maximum battery weight
is shown on the lift truck nameplate. The spreader
bar must NOT be made of metal or it must have in-
sulated straps.
WARNING
Put blocks under both forks and on both sides of
the drive tire. The blocks must prevent the lift truck
from falling and causing personal injury or property
damage.
1. Use the lift button to raise the lift truck to its maxi-
mum height.
2. Move the key to the OFF position. Disconnect and
remove the battery.
3. Put blocks under both forks and on both sides of the
drive tire. See the section How to Put a Lift Truck
on Blocks.
4. Remove covers.
5. Remove the roll pin retaining the drive frame pivot
pintothelowerlink. Useadrifttodrivethepivot
pin out of the lower link and the drive frame. See
Figure 3.

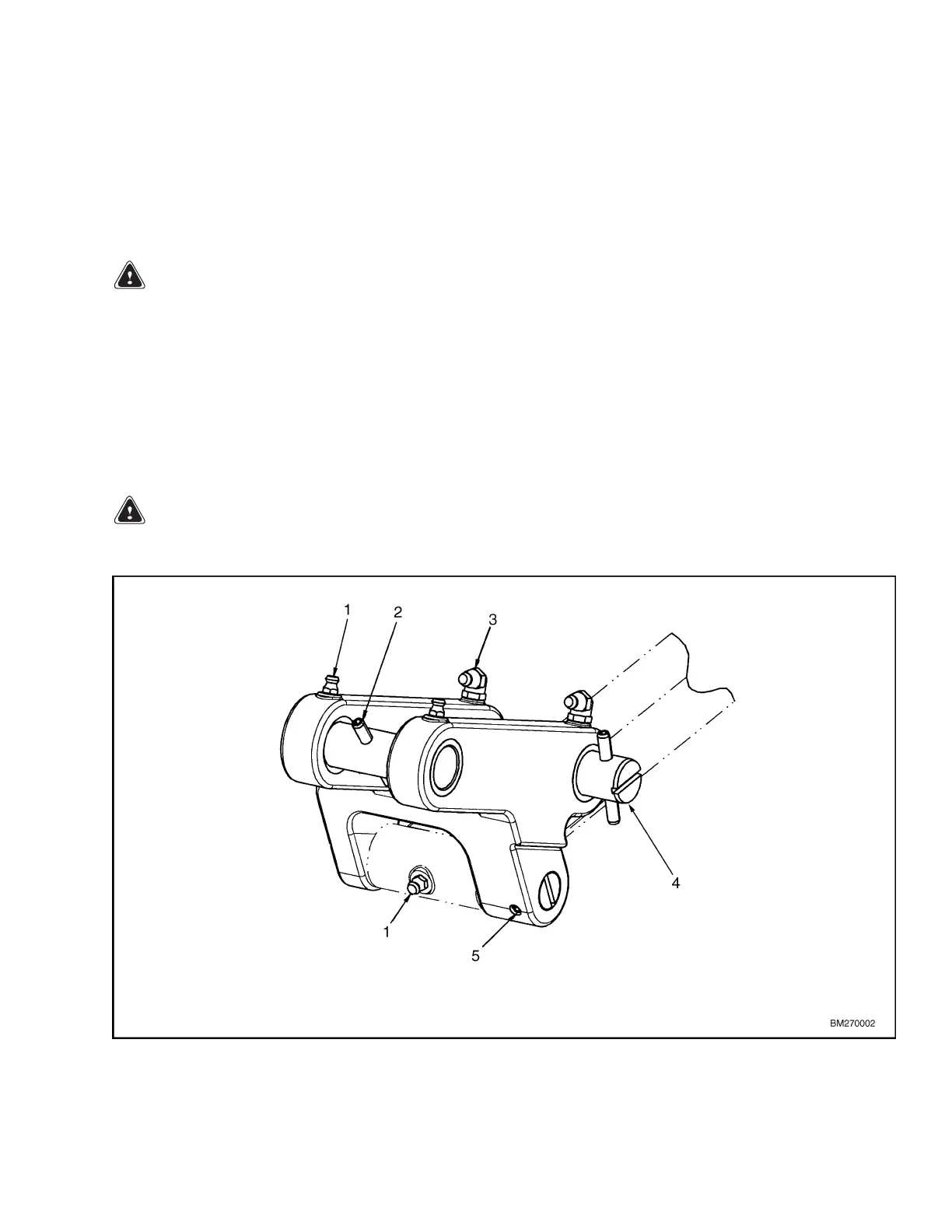

1. FITTING
2. PIN
3. FITTING
4. PIVOT PIN
5
To Next Page
