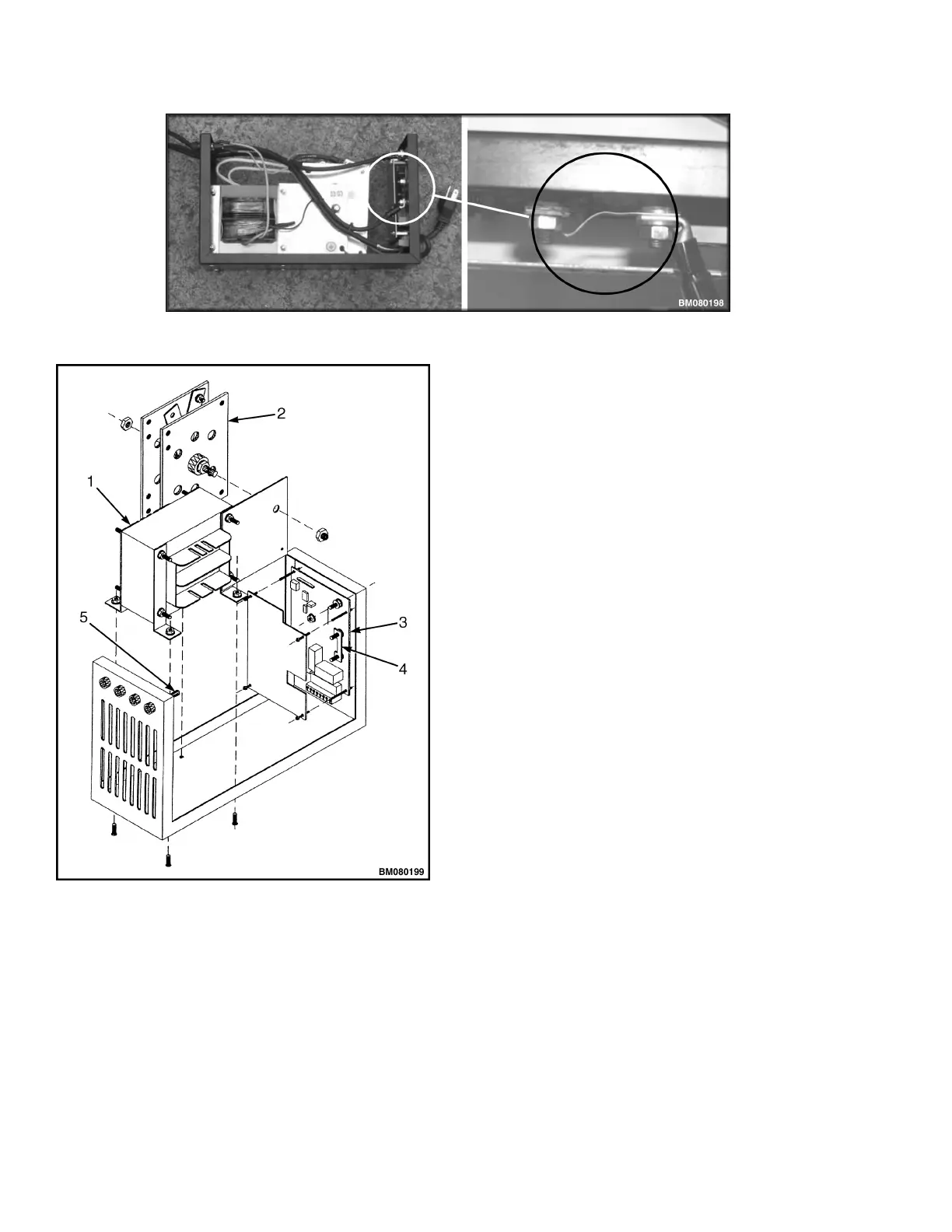

Figure 24. 50 Amp DC Output Fuse
Figure 25. Battery Charger
Legend for Figure 25
1. TRANSFORMER
2. RECTIFIER BRIDGE
3. CIRCUIT BOARD
4. DC OUTPUT FUSE
5. AC INPUT FUSE
Battery Charger (Moran
®
)
2200 YRM 1007
34
