4.3.6 Articulated trolley (DKE-S4 / DKE-S6)
with YKA/SKA, YKB/SKB, YKC/SKC wire rope hoists

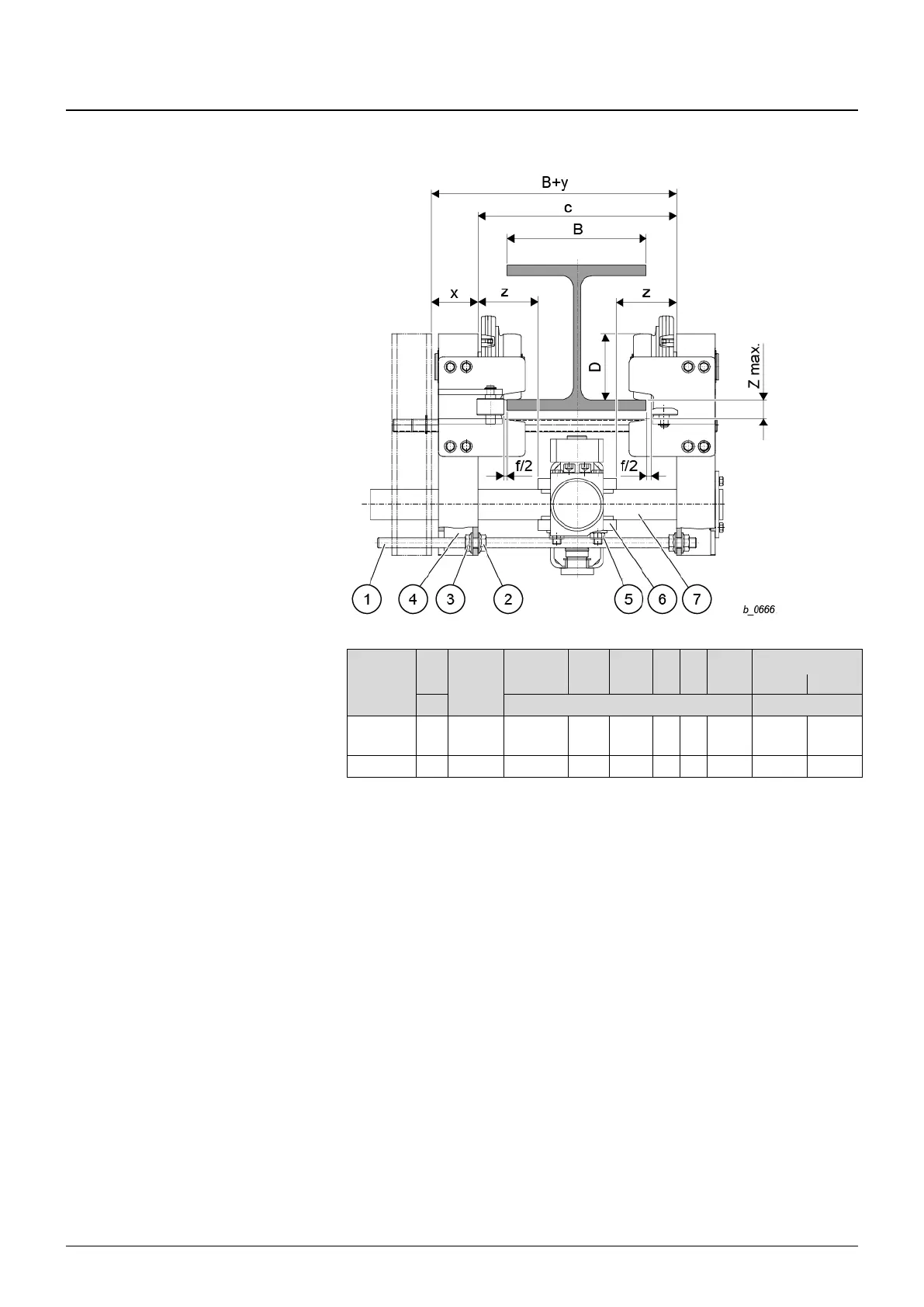

Fig. 20
Wire rope
hoist type
Ø D
Trolley
B
f/2
c
x
y
Z max
Tightening torque
Nut (3)
Nut (5)
[in]
[in]
[lb
f
ft]
YKA/SKA,
YKB/SKB
3.9
DKE-S4
3.5 - 11.8
0.059
B+3.1
2.6
5.8
1.1
159
63
YKC/SKC
5.5
DKE-S6
4.7 - 11.8
0.059
B+3.3
3
6.3
1.6
159
63
Tab. 13
1. Check flange width “B” and clearance “c” against Tab. 13 and set trolley to beam
width if necessary.
2. Ensure that the connection piece (square tube) (6) is in the center (of dimension “c”)
between the trolley side cheeks.
3. After unscrewing nuts (3) together with nuts (2), adjust clearance “c” and tighten
nuts (3).
4. Tighten nuts (3) with a torque spanner to the specified tightening torque (see table
above).
5. Clearance “c” results in a flange play of f/2 +0.039 in. on each side. If necessary,
correct flange play by means of clearance “c”.
Installation if end of runway is freely accessible
1. Slide trolley onto end of runway.
