RX-V2500/DSP-AX2500
59
■ PRINTED CIRCUIT BOARD (Foil side)
Ref. No. Location
D901 E5
D902 E5
D903 F3
D904 B3
D905 B3
IC901 D6
Q901 F5
Q902 C5
Q903 C5
Q904 E5
Q905 E6
Q908 E6
Q909 D5
Q910 E6
Q913 C5
• Semiconductor Location
POWER (2)
(CB125)
NC FL1 FL2
CONTROL
(CB508)
RM2- RM3- /CEF0 /FLR ISA PDLED KEY1 +5M2 PSW BT232C NC Z2POW
KEY1B RM2+ RM3+ SCKN SDTN MG ISB KEY0 REM +5D1 VP Z3POW
AB
SPEAKERS
STANDBY/ON
A/B/C/D/E
PRESET
/TUNING
FM/AMMEMORYTUNING
MODE
ZONE2 MAIN
ZONE ON/OFF
RDS MODE
/FREQ
EONSTART MODE
PTY SEEK
PRESET/TUNING
INPUT
MULTI CH
INPUT
INPUT MODE
PURE DIRECT
U, C models only
B, G models only

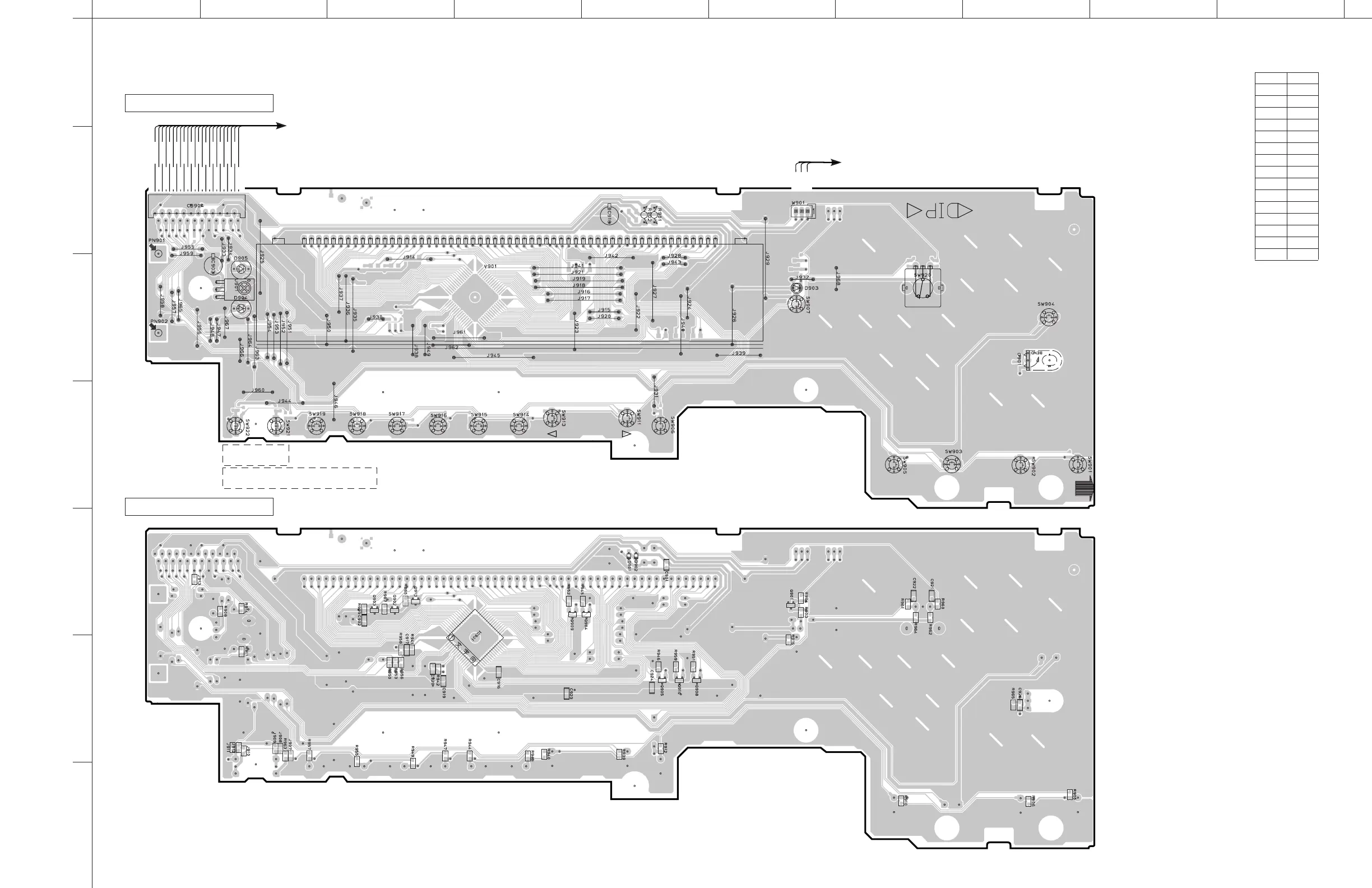

OPERATION (1) P.C.B. (Side A)
1
64
32
33
16 17
49 48
OPERATION (1) P.C.B. (Side B) Lead Free Solder Used
