RX-V2500/DSP-AX2500
9
Main Menu Sub Menu Parameter
Setting value ([ ] Initial value) / 設定値（［ ］初期値）
THX Cinema
Decode Type
[Pro Logic]
Pro Logic II
Pro Logic II x
Neo : 6
SURROUND
Standard
Decode Type
[Pro Logic]
PL II Movie
PL II Music
PL II Game
PL II x Movie
PL II x Music
PL II x Game
Neo : 6 Cinema
Neo : 6 Music
Panarame [OFF] / ON
Dimension -3 / +3 / 1 [STD]
Center Width 0 / 7 / 1 [3]
Center Image
0.0 / 1.0 / 0.1 [0.3]
Initialize [NO] / YES
Parameter
Decode Type
DSP Level
Sur. Init. Deley
Sur. Room Size
Sur. Liveness
SB Init. Deley
SB Room Size
SB Liveness Dialogue Lift
Initialize
-6 / +3 / 1 dB 1 / 49 / 1 ms 0.1 / 2.0 / 0.1 1 / 5 / 1 1 / 49 / 1 ms 0.1 / 2.0 / 0.1 1 / 5 / 1 0 / 5 / 1 NO / YES
Enhanced Pro Logic 0 20 1.0 3 (15) (1.0) (5) (0) NO
Pro Logic II 0 19 1.0 3 (15) (1.0) (5) (0) NO
Pro Logic II x 0 19 1.0 3 15 1.0 5 (0) NO
Neo 6 0 19 1.0 3 15 1.0 5 (0) NO
STRAIGHT
171 (6-3/4")
150 (5-7/8") 393 (15-1/2")
21
(13/16")
18.5
(3/4")
22
(7/8")
433.5 (17-1/16")
435 (17-1/8")
Unit : mm (inch)
単位:mm（インチ）
Harmonic Distortion / 歪率
(1 kHz)
Mono/Stereo ................................................................. 0.2 / 0.3 %
Stereo Separation / ステレオセパレーション
1 kHz .................................................................................... 42 dB
Frequency Response / 周波数特性
20 Hz to 15 kHz .......................................................... +0.5 / -2 dB
Antenna Input / アンテナ入力
...................................................................... 75 ohms unbalanced
■ AM Section / AM部
Tuning Range / 受信周波数範囲
U, C models ....................................................... 530 to 1,710 kHz
R, L models ................................ 530 to 1,710 / 531 to 1,611 kHz
T, K, A, B, G, J models ...................................... 531 to 1,611 kHz
Usable Sensitivity / 実用感度
........................................................................................ 300 µV/m
Antenna / アンテナ入力
................................................................................. Loop Antenna
■ General / 総合
Power Supply / 電源電圧
U, C models ........................................................ AC 120 V, 60 Hz
R model ............................. AC 110/120/220/230-240 V, 50/60 Hz
T model ............................................................... AC 220 V, 50 Hz
K model ............................................................... AC 220 V, 60 Hz
A model ............................................................... AC 240 V, 50 Hz
B, G models ........................................................ AC 230 V, 50 Hz
L model ............................................ AC 220/230-240 V, 50/60 Hz
J model ........................................................... AC 100V, 50/60 Hz
Power Consumption / 消費電力
U, C models ......................................................... 500 W / 630 VA
R, T, K, A, B, G, L models .................................................. 500 W
J model ................................................................................ 400 W
Standby Power Consumption (reference data) / 待機時消費電力(参考値)
U, C, J models ......................................................... 0.2 W or less
R model (AC 240, 50 Hz) ....................................... 0.33 W or less
T, K, A, B, G, L models .......................................... 0.15 W or less
Maximum Power Consumption / 最大消費電力
(6ch Drive, 10% THD)
R model ............................................................................. 1100 W
AC Outlets / ACアウトレット
2 switched outlets
U, C models .......................... 100 W max. total / 0.8A max. total
R, L models ........................................................ 50 W max. total
T, G, J models .................................................. 100 W max. total
1 switched outlet
A, B models ....................................................... 100W max. total
Dimensions / 寸法 (W x H x D)
..................... 435 x 171 x 433.5 mm (17-1/8" x 6-3/4" x 17-1/16")
Weight / 質量
RX-V2500 ................................................... 15.5 kg (34 lbs. 3 oz.)
DSP-AX2500 .............................................. 17.8 kg (39 lbs. 4 oz.)
Finish / 仕上げ
Gold color ....................................................... R, T, K, L, J models
Black color ..................................................... U, C, R, A, J models
Titanium color ........................................................ B, G, L models
Accessories / 付属品
Remote Control, Batteries, Power Cable, Indoor FM Antenna, AM
Loop Antenna, Optimizer Microphone, Speaker Terminal Wrench,
Antenna Adapter PAL (B model)
* Specifications are subject to change without notice due to product
improvements.
※ 参考仕様および外観は予告なく変更されることがあります。
U .......... U.S.A. model C ...... Canadian model
R .......... General model T ....... Chinese model
K .......... Korean model A ...... Australian model
B .......... British model G ...... European model
L ........... Singapore model J ....... Japanese model
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, “Surround EX”, and the double-D symbol are
trademarks of Dolby Laboratories.
ドルビーラボラトリーズからの実施権に基づき製造されています。ド
ルビー、PROLOGIC、SurroundEXおよびダブルD記号 は、ドル
ビーラボラトリーズの商標です。
"SILENT CINEMA" is a trademark of YAMAHA CORPORATION.
「サイレントシネマ/SILENTCINEMA」はヤマハ株式会社の登録商標で
す。
“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of
Digital Theater Systems, Inc.
DTS、DTS-ESExtendedSurround、Neo:6およびDTS96/24はデジ
タルシアターシステムズの登録商標です。
AACロゴマーク はドルビーラボラトリーズの商標です。
THX and the THX logo are registered trademarks of THX Ltd.
Surround EX is a jointly developed technology of THX and Dolby
Laboratories, Inc. and is a trademark of Dolby Laboratories, Inc.
All rights reserved. Used under authorization.
THXとTHXロゴはTHXの登録商標です。サラウンドEXはTHXとドル
ビーラボラトリーズの共同開発による技術で、ドルビーラボラト
リーズの商標です。不許複製。許可のもとに使用されています。

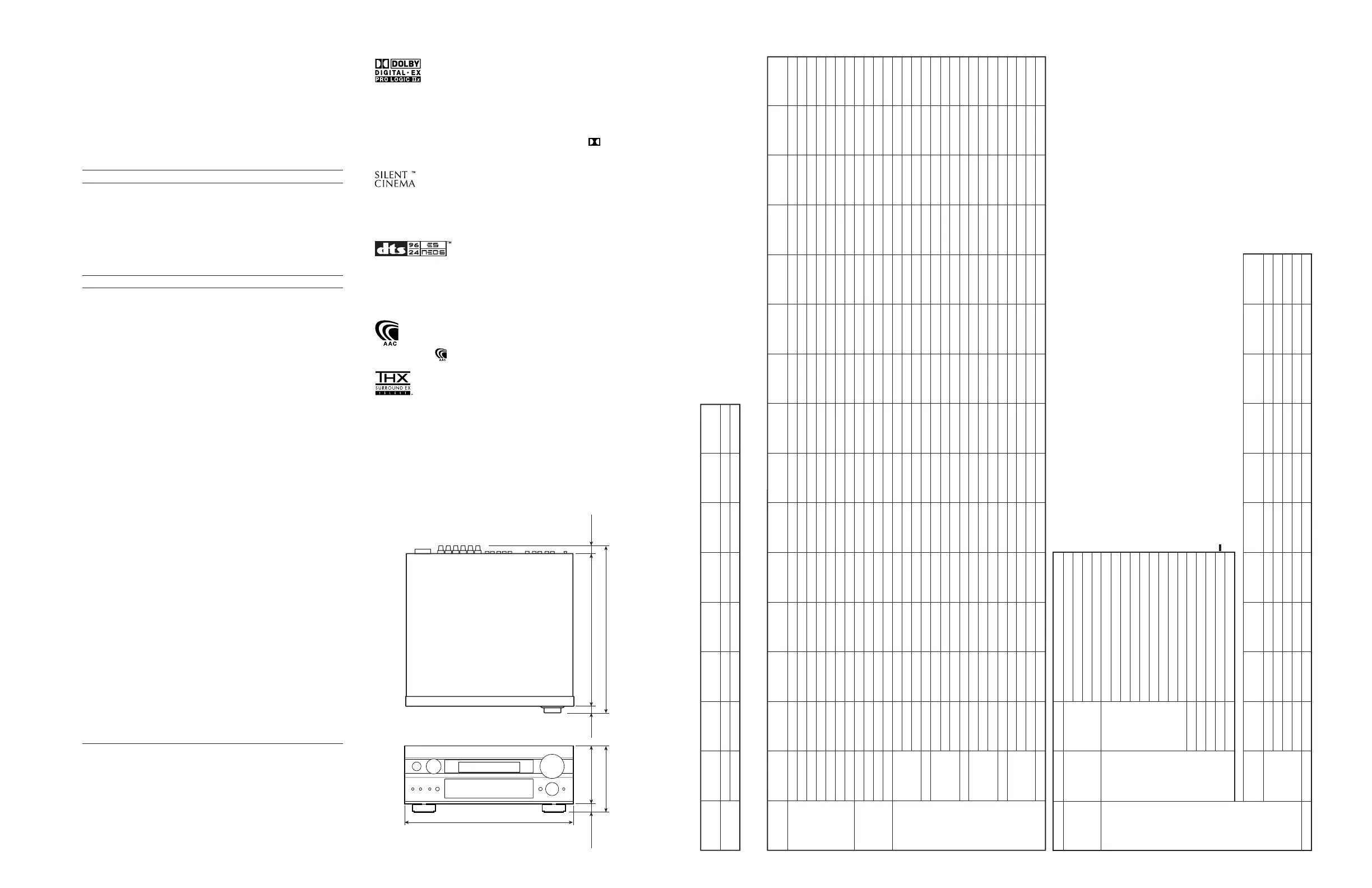

• DIMENSIONS/寸法図
• SOUND/SURROUND SELECT MENU
Sound Serect Min./Max./Step 最小/最大/Step
Surround Serect Min./Max./Step 最小/最大/Step
Main Menu Parameter
Center Level
Surround L Level Surround R Level
Sur. Back Level
Presence L Level Presence R Level
Initialize
0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 % 0 / 100 / 1 %
NO / YES
STEREO 2ch Stereo - - ----NO
7ch Stereo 100 100 100 35 (33) (33) NO
Decode Type
DSP Level Init. Deley Room Ssize Liveness
Sur. Init. Deley
Sur. Room Size
SB Init. Deley
SB Room Size
Rev. Time Rev. Deley Rev. Level
Dialogue Lift
Initialize
-6 / +3 / 1 dB 1 / 99 / 1 ms 0.1 / 2.0 / 0.1 0 / 10 / 1 1 / 49 / 1 ms 0.1 / 2.0 / 0.1 1 / 49 / 1 ms 0.1 / 2.0 / 0.1
1.0 / 5.0 /0.1 ms
0 / 250 / 1 ms
0 / 100 / 1 % 0 / 5 / 1 NO / YES
MUSIC Munich 0 30 1.0 5 -------(0)NO
Vienna 0 30 1.0 5 -------(0)NO
Freiburg 0 95 1.0 3 ----4.013070(0)NO
The Bottom Line
0301.05-------(0)NO
The Roxy Theater
0151.05----1.61209(0)NO
Pop/Rock 21 1.0 --------(0)NO
Classical/Opera
0281.0--------(0)NO
ENTERTAINMENT
TV Sports 0 10 1.0 - 30 1.0 (15) (1.0) 1.6 100 4 (0) NO
Mono Moive 0 69 1.0 3 - - - (1.0) 2.5 160 2 (0) NO
Game 0 36 1.0 - 15 1.0 (15) (1.0) - - - (0) NO
Disco 0 26 - 5 ----2.71204(0)NO
MOVIE THEATER
Spectacle Pro Logic 0 13 1.0 - 23 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 13 1.0 - 32 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 13 1.0 - 32 1.0 15 1.0 - - - (0) NO
Neo : 6 0 13 1.0 - 32 1.0 15 1.0 - - - (0) NO
Sci-Fi Pro Logic 0 16 1.0 - 20 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 16 1.0 - 2 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 16 1.0 - 2 1.0 15 1.0 - - - (0) NO
Neo : 6 0 16 1.0 - 2 1.0 15 1.0 - - - (0) NO
Adventure Pro Logic 0 15 1.0 - 20 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 15 1.0 - 30 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 15 1.0 - 30 1.0 15 1.0 - - - (0) NO
Neo : 6 0 15 1.0 - 30 1.0 15 1.0 - - - (0) NO
General Pro Logic 0 15 1.0 - 20 1.0 (15) (1.0) - - - (0) NO
Pro Logic II 0 15 1.0 - 26 1.0 (15) (1.0) - - - (0) NO
Pro Logic II x 0 15 1.0 - 26 1.0 15 1.0 - - - (0) NO
Neo : 6 0 15 1.0 - 26 1.0 15 1.0 - - - (0) NO
(Setting can be made when PL II Music, Pro Logic II x is selected / PLIIMusic、ProLogicIIx選択時 設定可)
}
(Setting can be made when Neo:6 Music is selected / Neo:6Music選択時 設定可)
