RX-V2500/DSP-AX2500
18
RX-V2500/
DSP-AX2500
■ SELF DIAGNOSIS FUNCTION (DIAG)／自己診断機能（ダイアグ）
There are 18 DIAG menu items, each of which has sub-
menu items. Listed in the table below are menu items and
sub-menu items.
ダイアグメニューは18個あり、そのそれぞれにサブメ
ニューがあります。下表はメニュー一覧です。

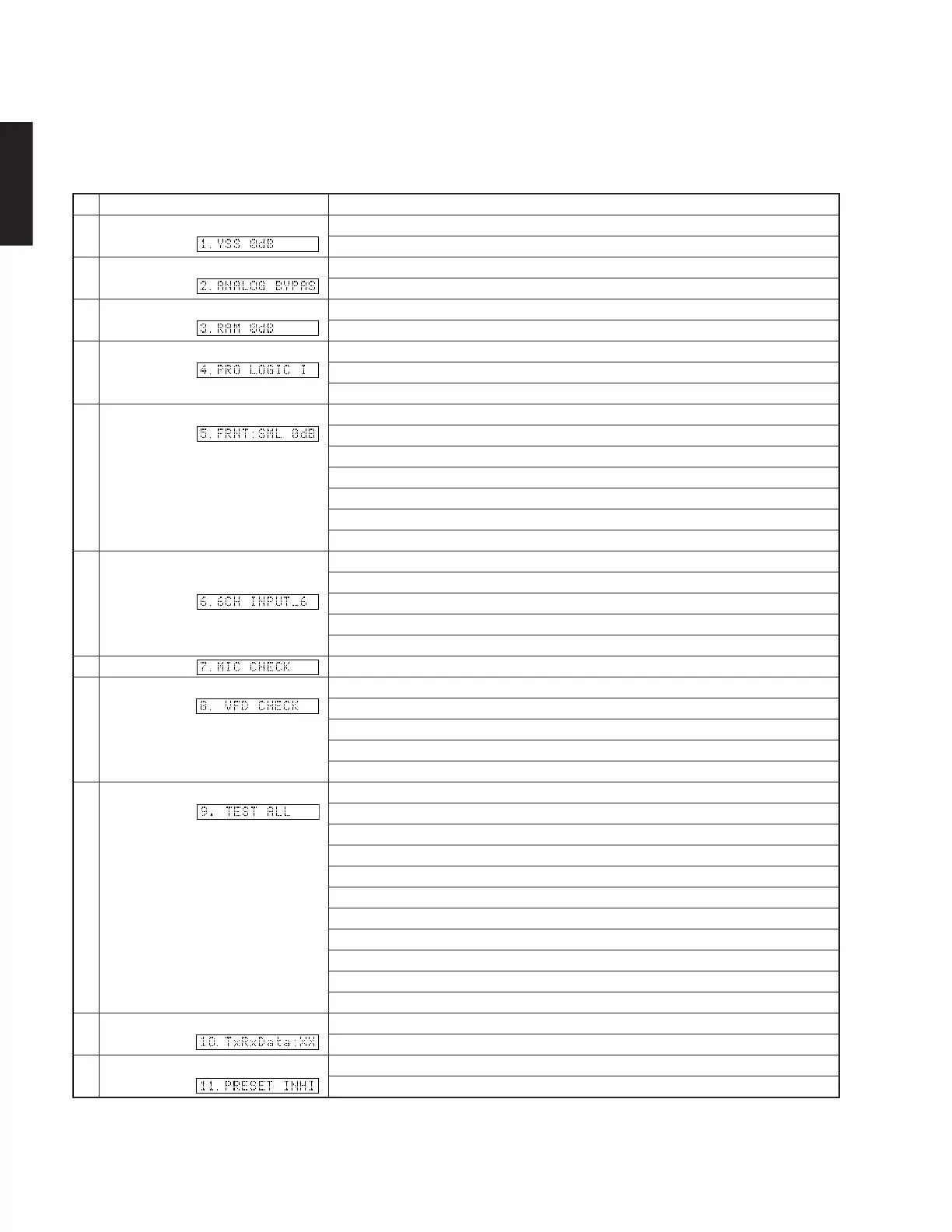

No DIAG MENU SUB MENU
1 DA601-YSS930 1. YSS 0dB
2. YSS FULL BIT
2 BYPASS 1. ANALOG BYPASS
2. DSP BYPASS
3 RAM THROUGH 1. RAM 0dB
2. FRONT ATT
4 PRO LOGIC / NEO6 1. PRO LOGIC I
2. PRO LOGIC II
3. NEO: 6
5 SPEAKERS SET 1. FRONT: SMALL 0dB
2. CENTER: NONE
3. LFE/BASS: FRONT
4. PRESS MIX: 5ch
5. SURROUND B: MUTE
6. SURROUND LR: MUTE
7. SURROUND LR: NONE
6 EXTERNAL INPUT 1. 6CH INPUT_6OHMS
SP Impedance Check 2. 6CH INPUT_8OHMS
3. 8CH INPUT_6OHMS
4. 8CH INPUT_8OHMS
5. TEMP TEST
7 MIC CHECK MIC CHECK
8 DISPLAY CHECK 1. VFD CHECK (Initial display /
初期表示)
2. VFD DISP OFF (All segments OFF /
全セグメント消灯)
3. VFD DISP ALL (All segments ON 100% /
全セグメント点灯100%)
4. VFD DIMMER (All segments ON 50% /
全セグメント点灯50%)
5. CHECKED PATTERN (ON in lattice /
格子状点灯)
9 MANUAL TEST 1. TEST ALL
2. TEST FRONT L
3. TEST CENTER
4. TEST FRONT R
5. TEST SURROUND R
6. TEST SURROUND BACK R
7. TEST SURROUND BACK L
8. TEST SURROUND L
9. TEST LFE
10. TEST PRESENCE L
11. TEST PRESENCE R
10 RS-232C 1. TxD/RxD DATA
2. HARD FLOW
11 FACTORY PRESET 1. PRESET INHIBIT (memory initialization inhibited / メモリーの初期化禁止)
2. PRESET RESERVED (memory initialized /
メモリーの初期化)
To Next Page
