Yamaha F60A - Electrical Unit

69W3D1X
10
Steering friction
The F60 tiller handle models use a newly developed, compact steering friction.
1
Steering friction
Electrical unit
Starter motor

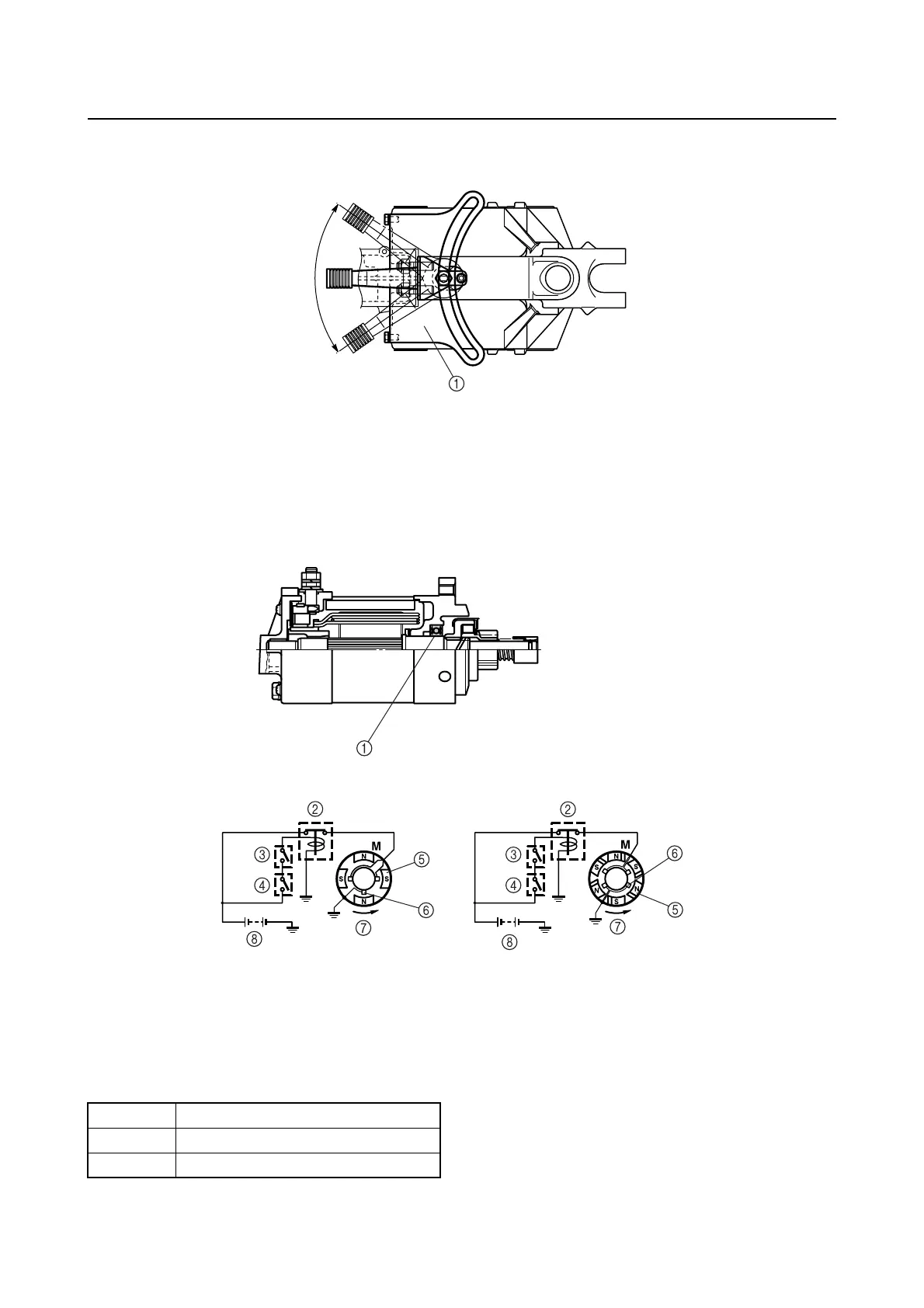

The starter motor uses six magnets and four brushes to enhance its operating torque.
1
Bearing
2
Starter relay
3
Neutral switch
4
Engine start switch
5
Magnet
6
Brush
7
Starter motor
8
Battery
S69W1280
S69W1290
F50
F60
Operating torque
F50 2.74 N·m (0.27 kgf·m, 2.0 ft·lb)
F60 3.50 N·m (0.35 kgf·m, 2.5 ft·lb)
