Yamaha F60A - Checking the Trim Sensor

69W3D1X
84

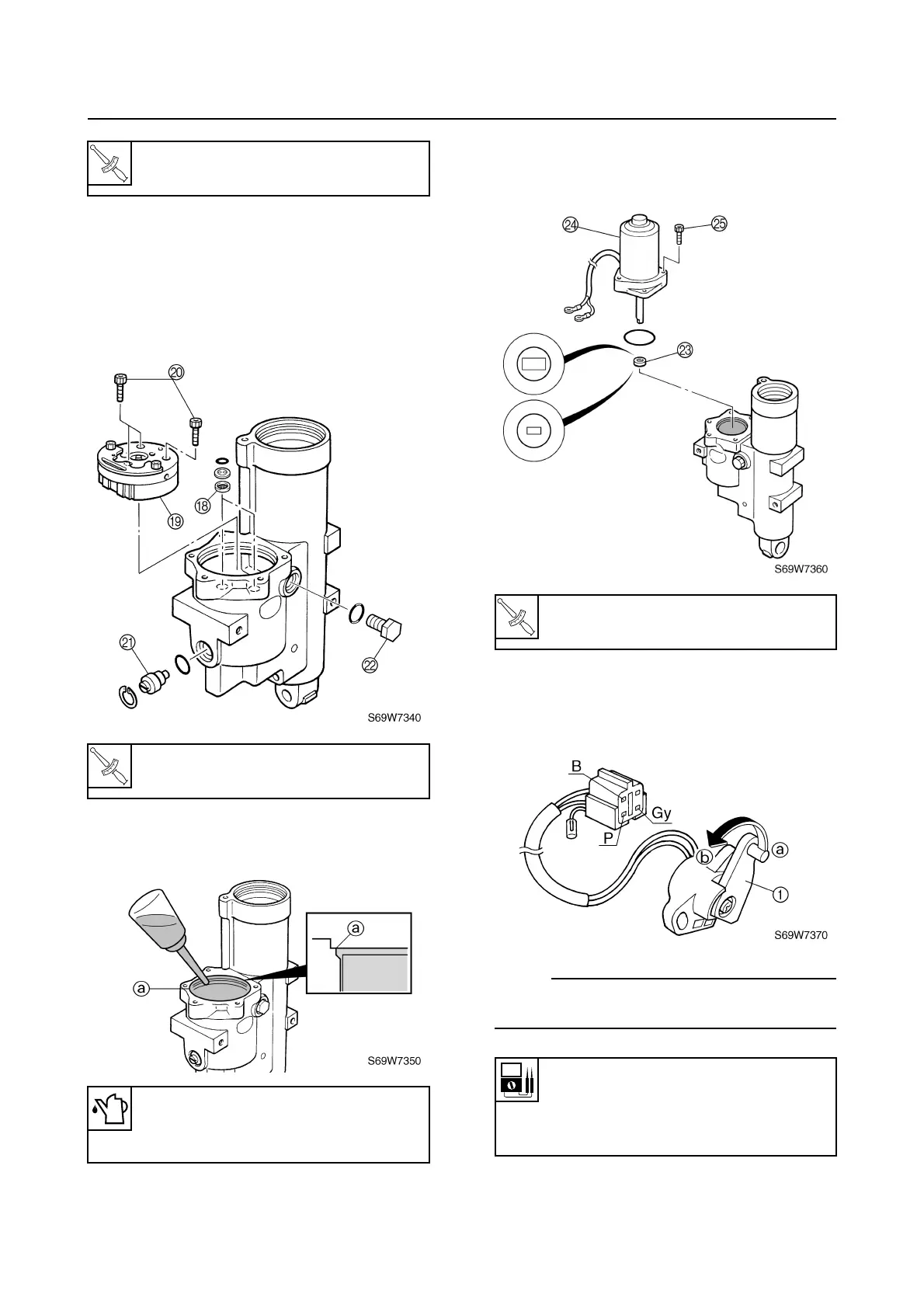

7. Install the filters
H
and gear pump
I
by
installing the bolts
J
, then tightening
them to the specified torque.
8. Install the manual valve
K
and reservoir
cap
L
.
9. Fill the reservoir with the recommended
fluid to the correct level
a
as shown.
10. Install the joint
M
and power trim and tilt
motor
N
by installing the bolts
O
, then
tightening them to the specified torque.
Checking the trim sensor
1. Measure the trim sensor resistance.
Replace if out of specification.
NOTE:
Turn the lever
1
and measure the resistance
as it gradually changes.
T
R
.
.
Relief valve bracket bolt
G
:
5 N·m (0.5 kgf·m, 3.6 ft·lb)
T
R
.
.
Gear pump bolt
J
:
7 N·m (0.7 kgf·m, 5.1 ft·lb)
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
PTT motor bolt
O
:
4 N·m (0.4 kgf·m, 2.9 ft·lb)
Trim sensor resistance:
Pink (P) – Black (B)
9–11
Ω
at 20 °C (68 °F)
a
168.3–288.3
Ω
at 20 °C (68 °F)
b
Power trim and tilt unit
