Yamaha F60A - Checking the Spark Plug Caps; Checking the Pulser Coil Air Gap; Checking the Engine Start Switch

69W3D1X
88

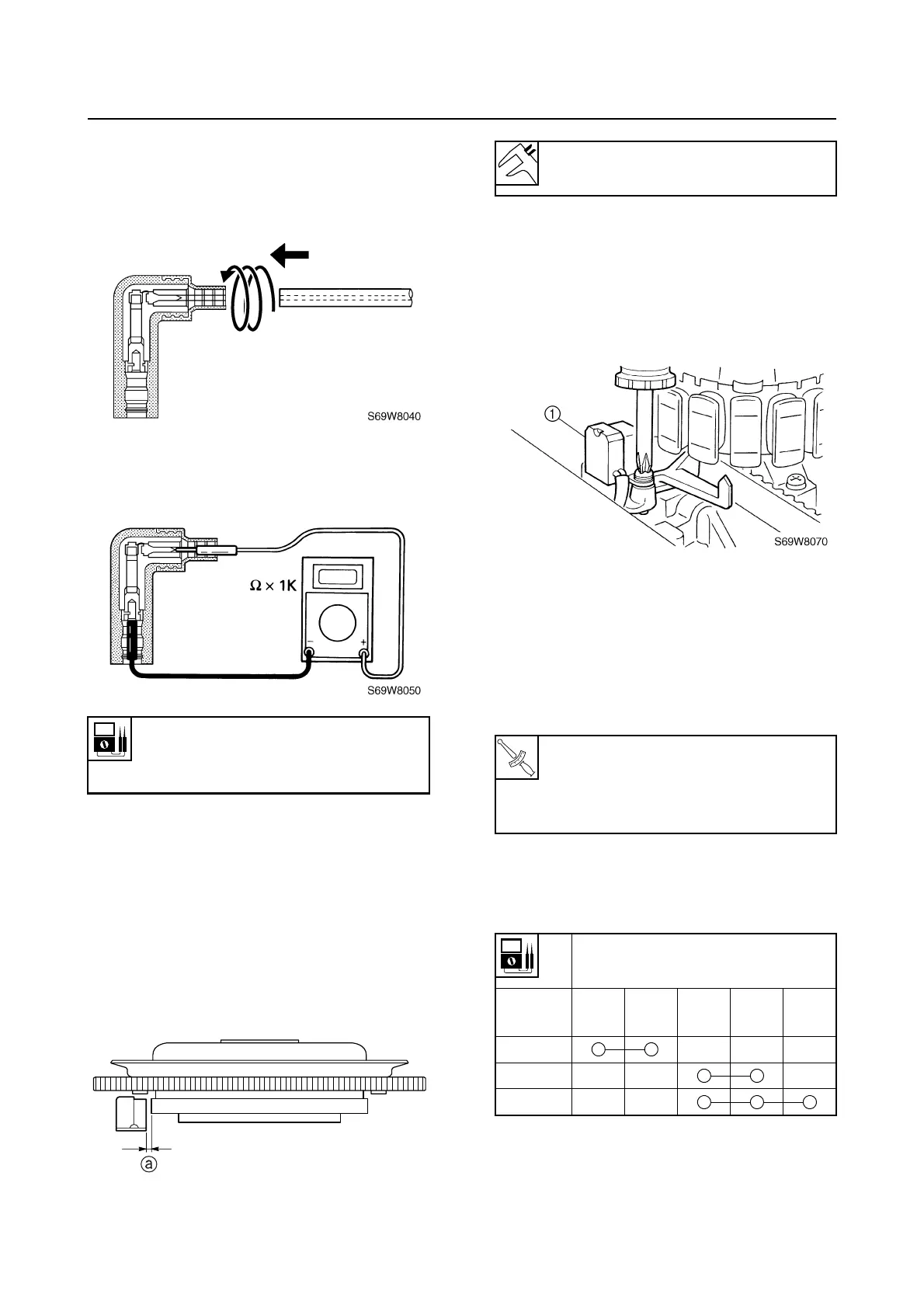

Checking the spark plug caps
1. Remove the spark plug caps from the
spark plug wires by turning the caps
counterclockwise.
2. Measure the spark plug cap resistance.
Replace if out of specification.
Checking the pulser coil air gap
1. Turn the flywheel clockwise to align the
projection of the flywheel with the pulser
coil projection.
2. Measure the gap between both projec-
tions with a thickness gauge. Adjust if out
of specification.
3. Remove the flywheel magnet nut and fly-
wheel magnet.
4. Loosen the pulser coil screws, adjust the
pulser coil
1
position, and then tighten
the screws finger tight.
5. Install the flywheel magnet, and then
check the gap and, if necessary, repeat
steps 3–5.
6. Tighten the pulser coil screws and fly-
wheel magnet nut to the specified
torques.
Checking the engine start switch
1. Check the engine start switch for continu-
ity. Replace if there is no continuity.
Spark plug cap resistance
(reference data):
5 k
Ω
S69W8060
Pulser coil air gap
a
:
0.5–1.0 mm (0.020–0.039 in)
T
R
.
.
Pulser coil screw:
4 N·m (0.4 kgf·m, 2.9 ft·lb)
Flywheel magnet nut:
160 N·m (16 kgf·m, 116 ft·lb)
Lead color
Switch
position
White
(W)
Black
(B)
Red
(R)
Pink
(P)
Brown
(Br)
OFF
ON
START
Ignition and ignition control system
