69W3D1X
42

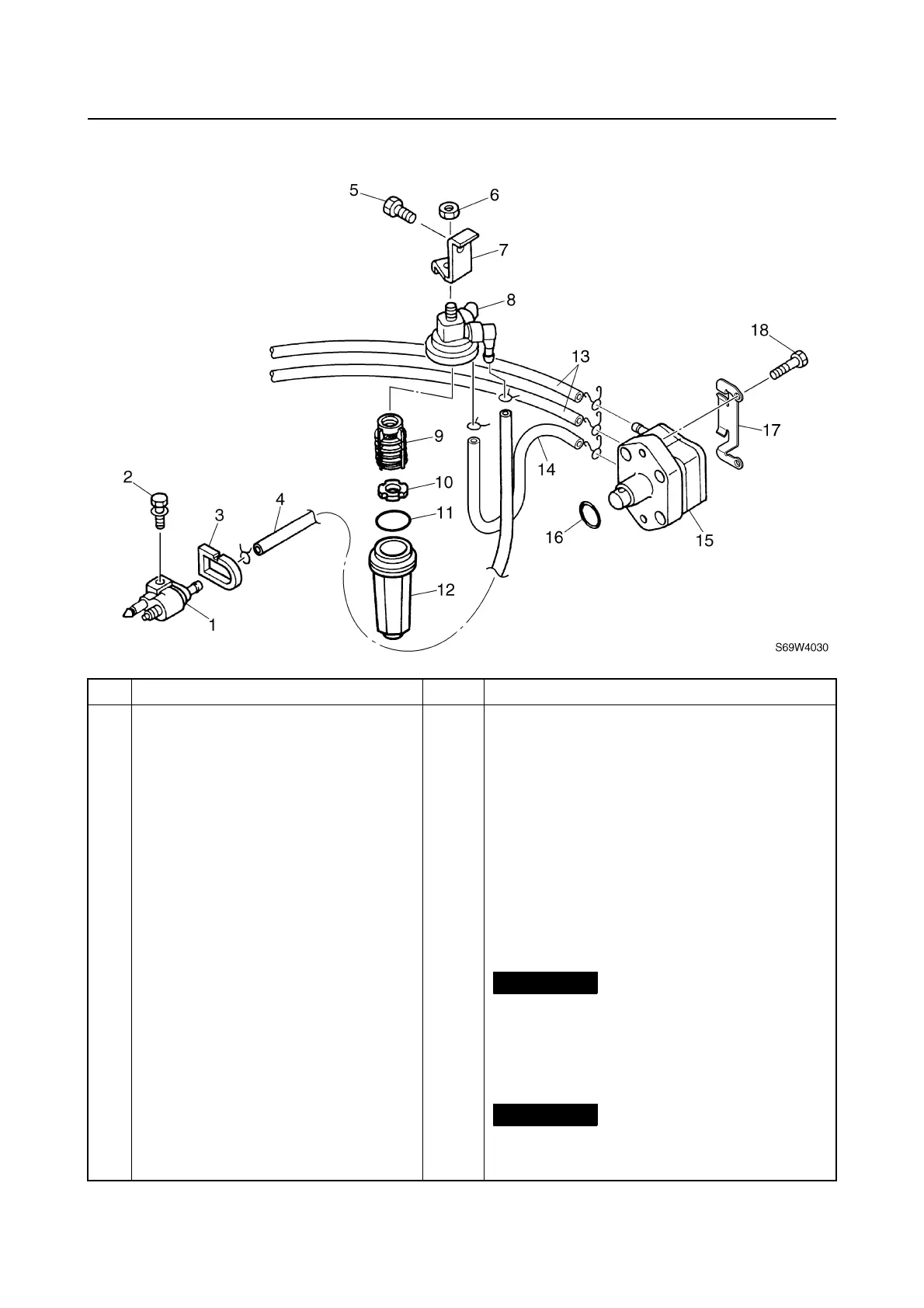

Fuel line and fuel filter
4
No. Part name Q’ty Remarks
1 Fuel joint 1
2Bolt 1 M6
×
25 mm
3 Seal 1
4 Fuel hose 1 Fuel joint-to-fuel filter
5Bolt 1 M8
×
14 mm
6Nut 1
7Bracket 1
8 Body 1
9 Fuel filter element 1
10 Float 1
11 O-ring 1
Not reusable
12 Cup 1
13 Fuel hose 2 Fuel pump-to-carburetor
14 Fuel hose 1 Fuel filter-to-fuel pump
15 Fuel pump 1
16 O-ring 1
Not reusable
17 Bracket 1
18 Bolt 2 M6
×
30 mm
Hose routing / Fuel line and fuel filter
