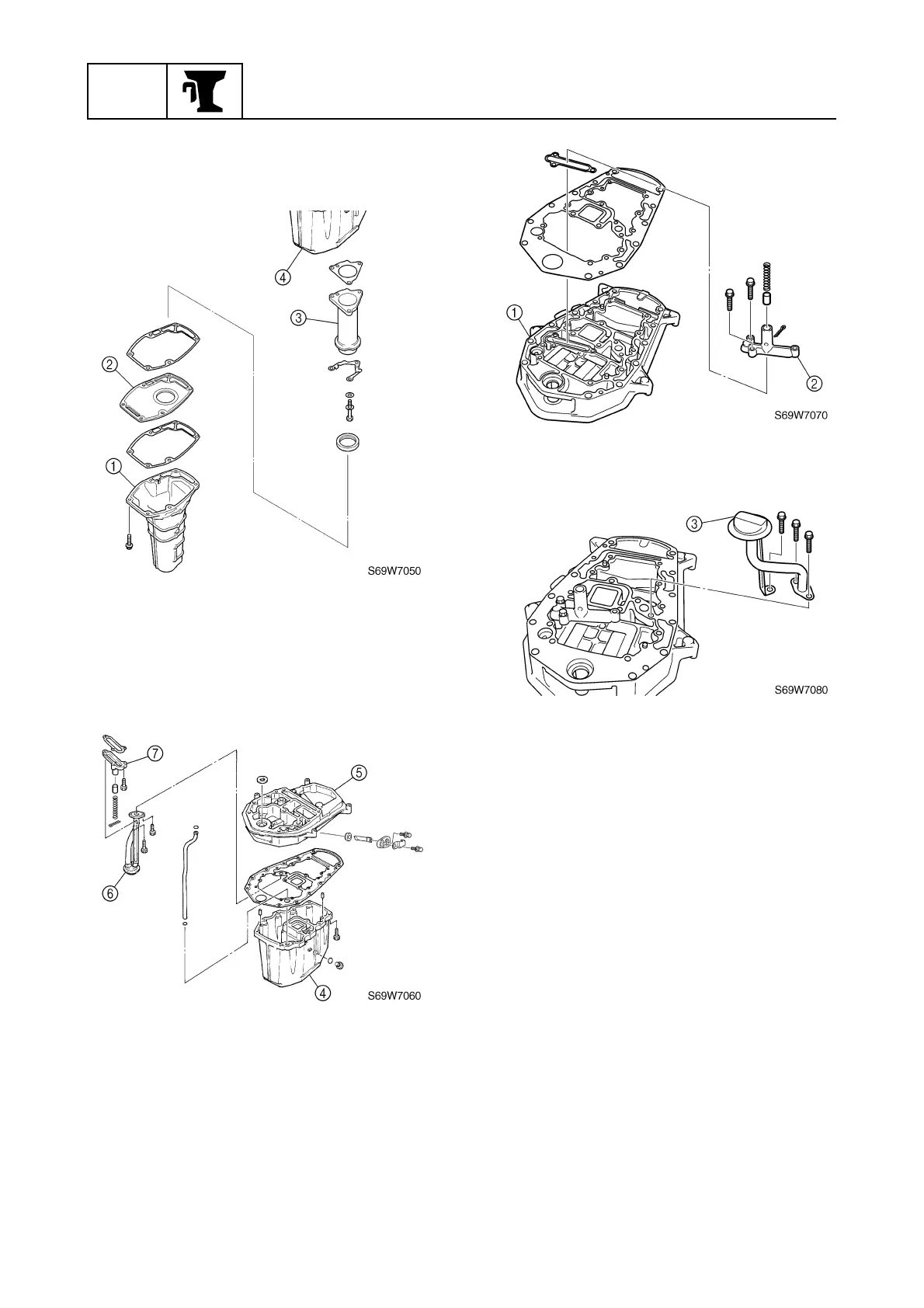

Disassembling the oil pan
1. Remove the muffler
1
, plate
2
, and
exhaust manifold
3
from the oil pan
4
.
2. Remove the oil pan
4
and the exhaust
guide
5
.
3. Remove the oil strainer
6
and the relief
valve housing
7
.
Assembling the oil pan
1. Install the gaskets onto the exhaust
guide
1
.
2. Install the relief valve assembly
2
by
installing the bolts, then tightening them
finger tight.
3. Install the oil strainer
3
by installing the
bolts.
4. Install the water pipe
4
.
5. Install the oil pan
5
and bolts, and then
tighten the bolts finger tight.
6. Install the exhaust manifold
6
and bolts,
and then tighten the bolts finger tight.
