Yamaha F60A - Ignition and Control Systems

69W3D1X
86

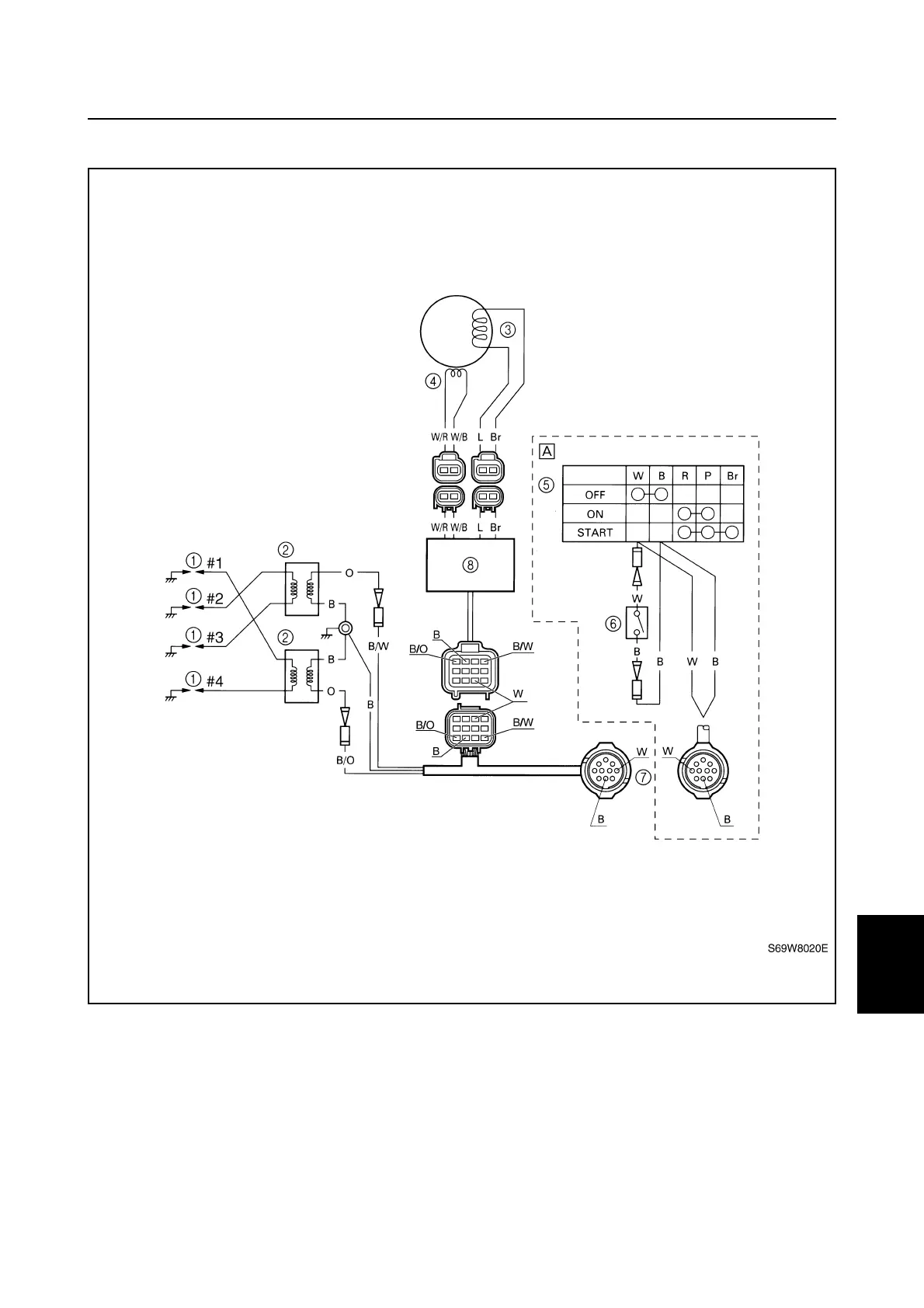

Ignition and ignition control system
8
1
Spark plug
2
Ignition coil
3
Charge coil
4
Pulser coil
5
Engine start switch
6
Engine shut-off switch
7
10-pin coupler
8
CDI unit
È
Tiller handle model
B: Black
Br : Brown
L: Blue
O : Orange
W: White
B/O : Black/orange
B/W : Black/white
W/B : White/black
W/R : White/red
Wiring harness / Ignition and ignition control system
1
2
3
4
5
6
7
8
9
